Home
>>
Saturn
>>
2004
>>
L Series V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C220
>>

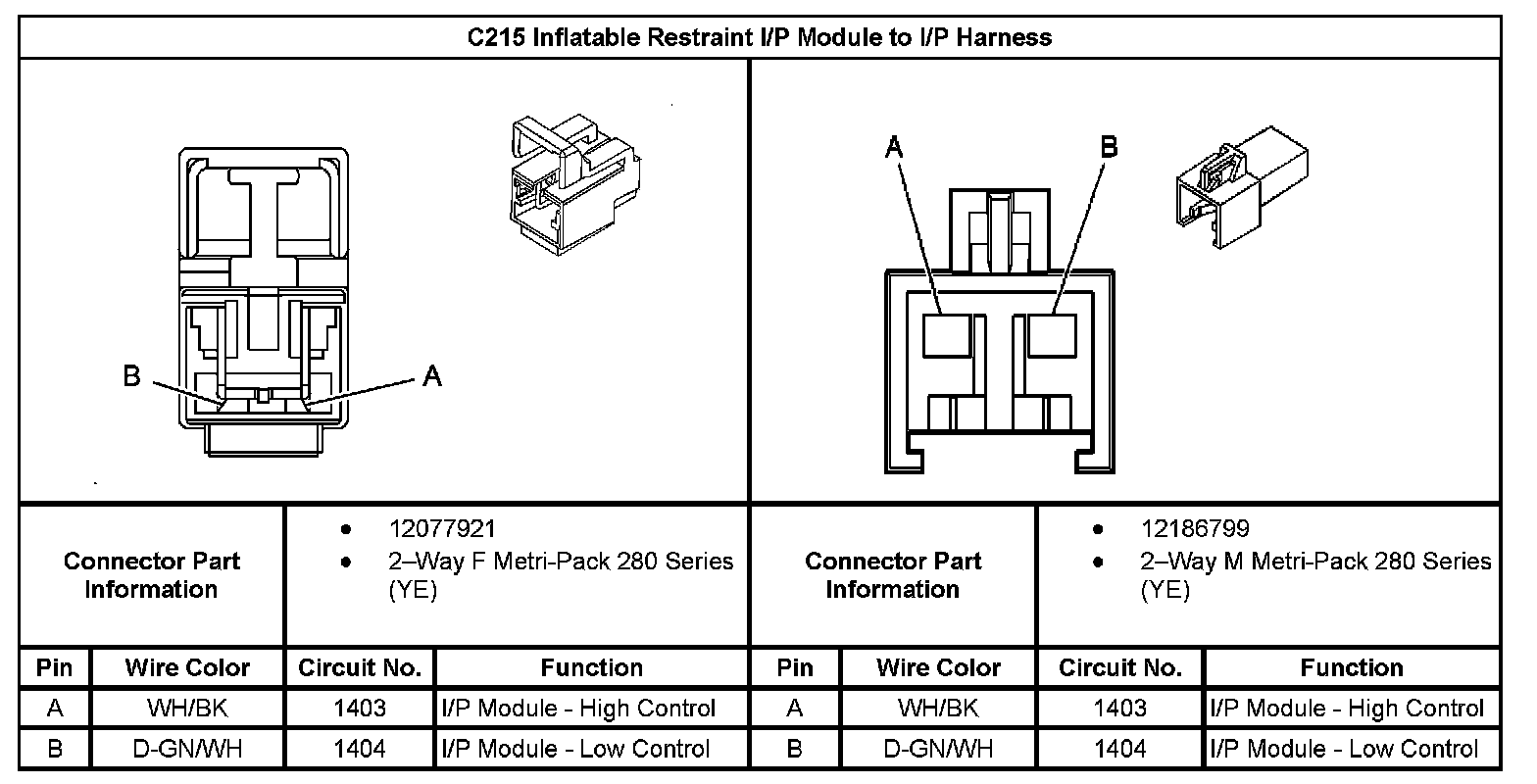

C215 Inflatable Restraint I/P Module To I/P Harness
C215 Inflatable Restraint I/P Module To I/P Harness
C215 Inflatable Restraint I/P Module To I/P Harness:
