C205 I/P Harness To HVAC Jumper (Without RPO Code C68)
C205 I/P Harness To HVAC Jumper (Without RPO Code C68)

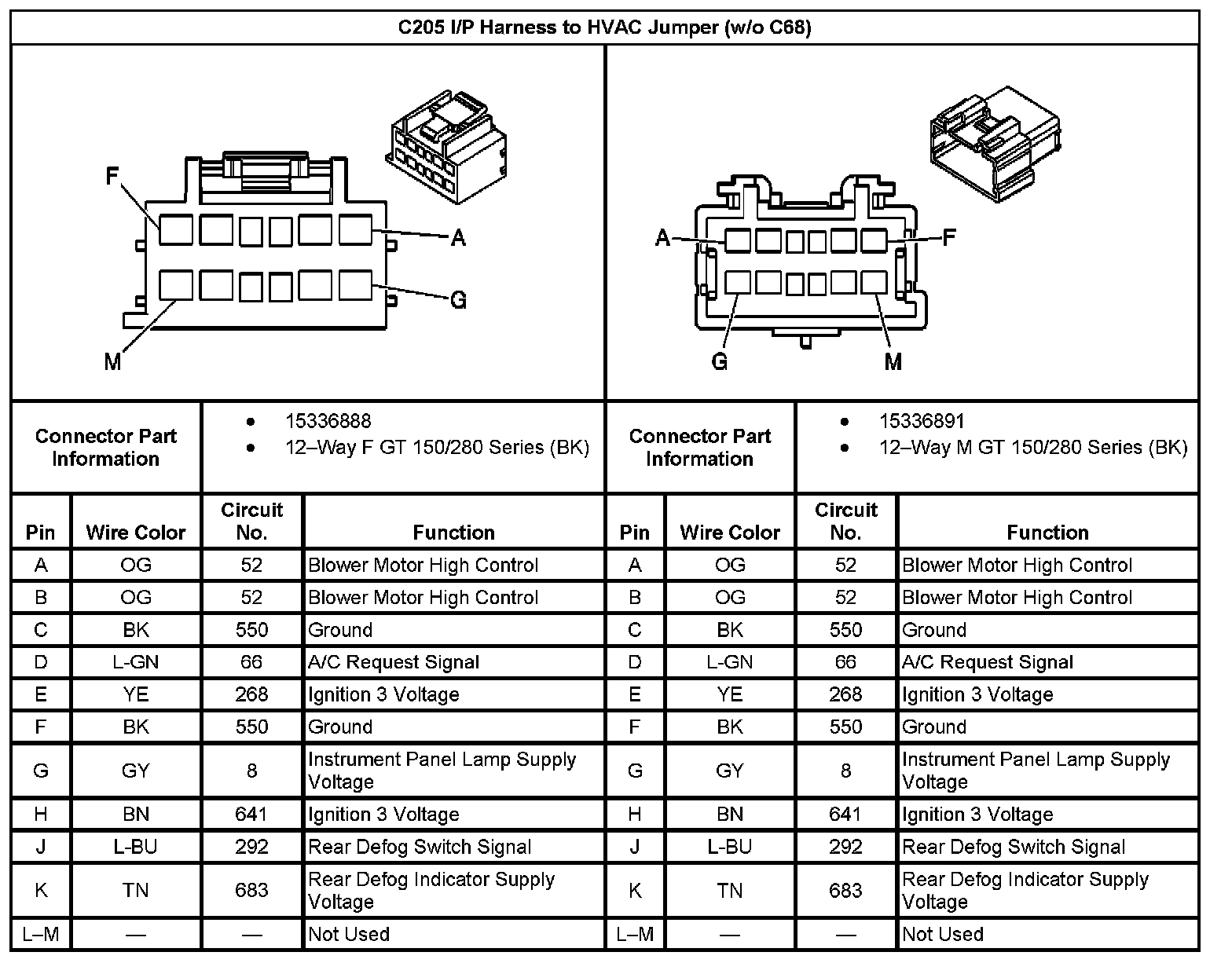

C205 I/P Harness To HVAC Jumper (Without RPO Code C68):
