Home >> Saturn >> 2004 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram >> Inside Rearview Mirror (ISRVM)

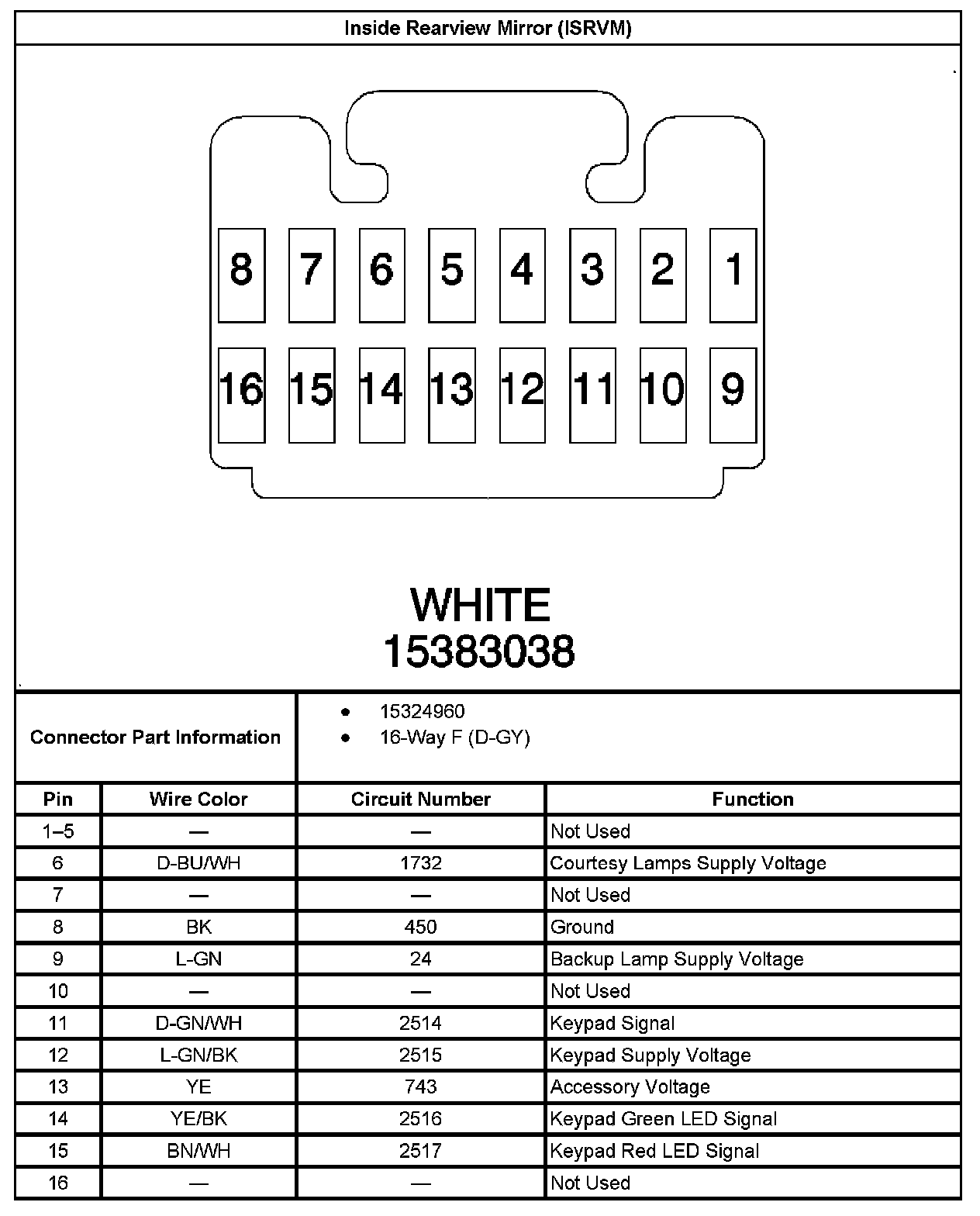

Inside Rearview Mirror (ISRVM)

Inside Rearview Mirror (ISRVM):
