Amplifier, Sound System
Amplifier, Sound System

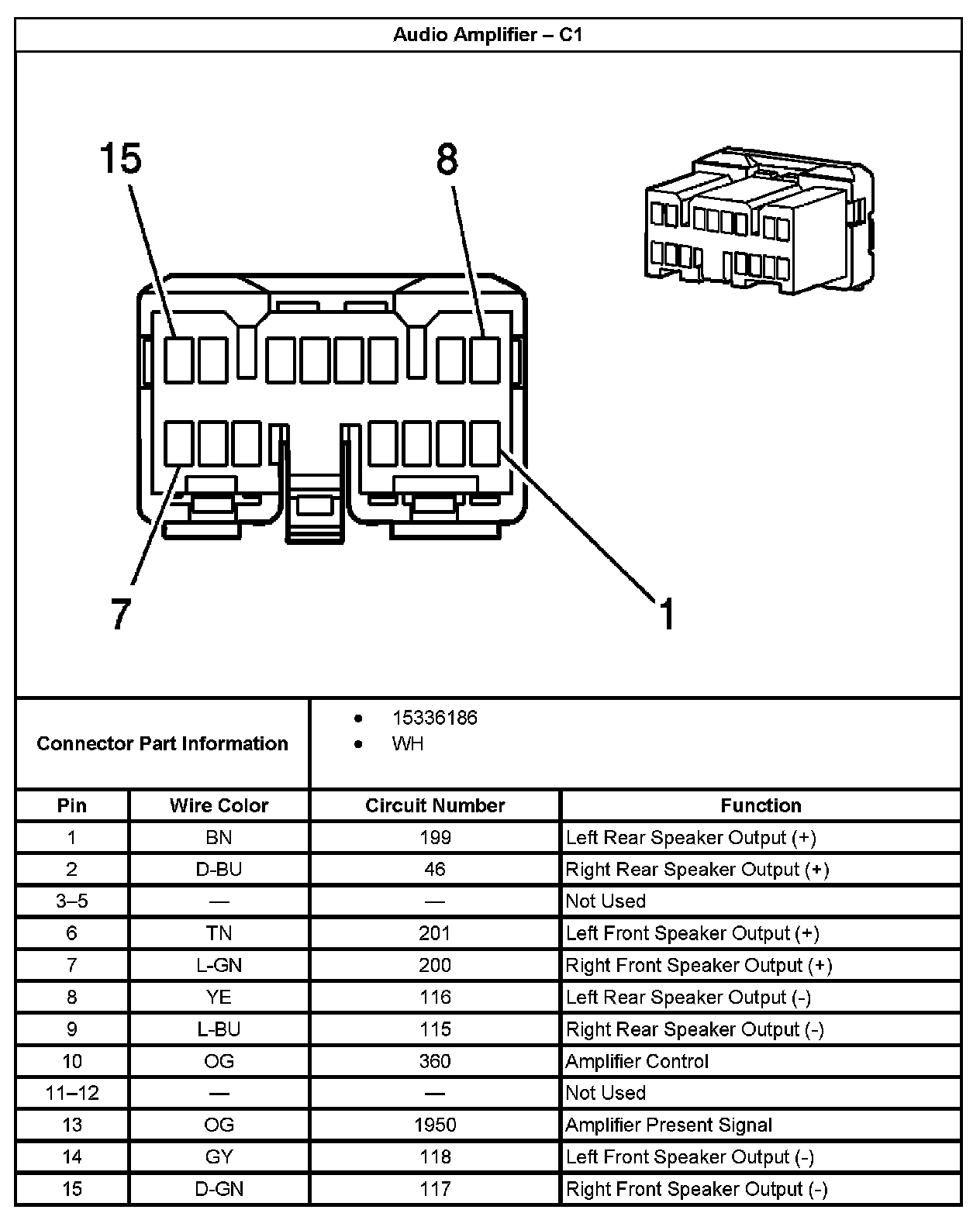

Audio Amplifier - C1:

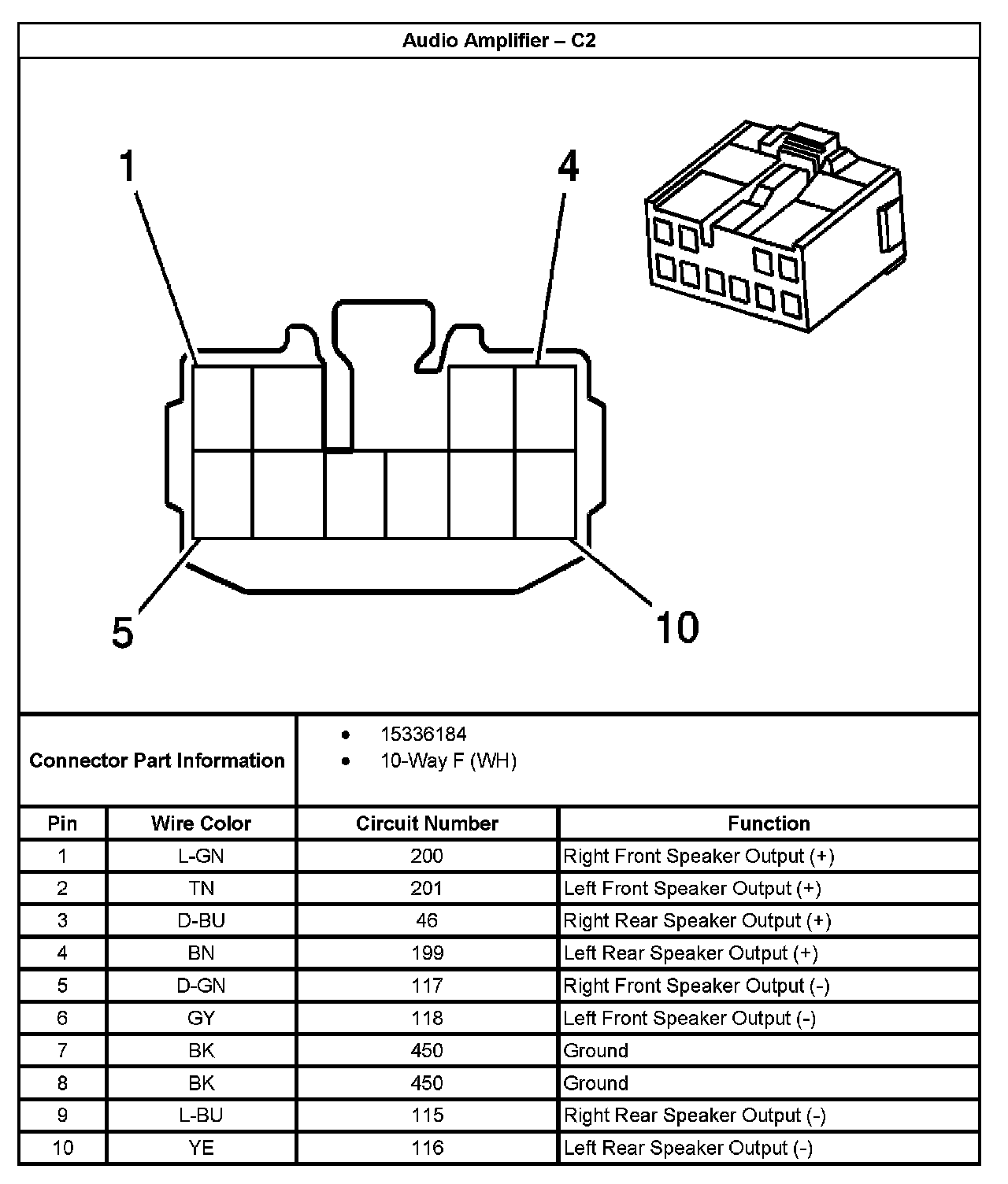

Audio Amplifier - C2:

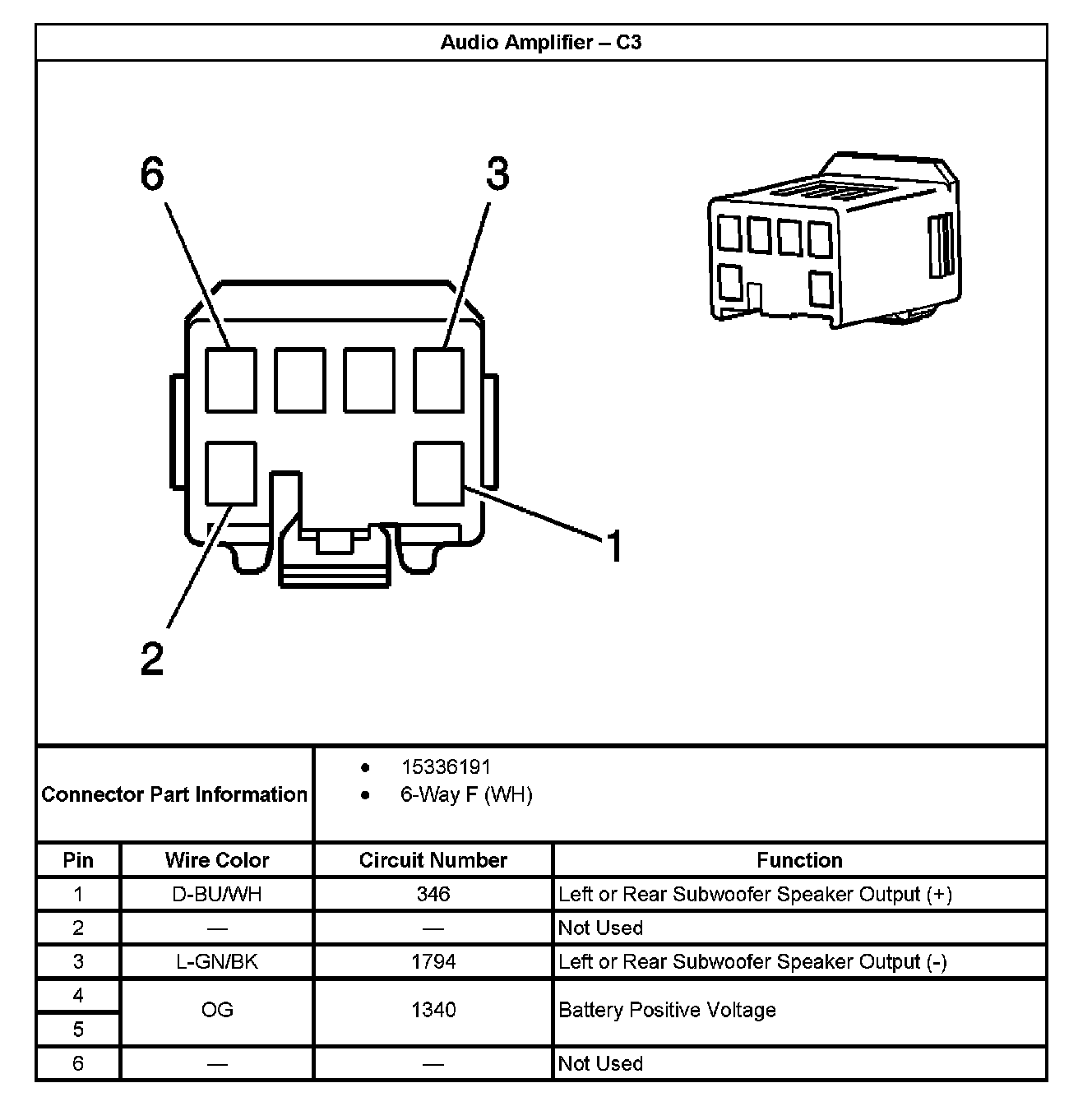

Audio Amplifier - C3:
