Brake Assist System Diagnosis
Brake Assist System Diagnosis
Brake Assist System Diagnosis

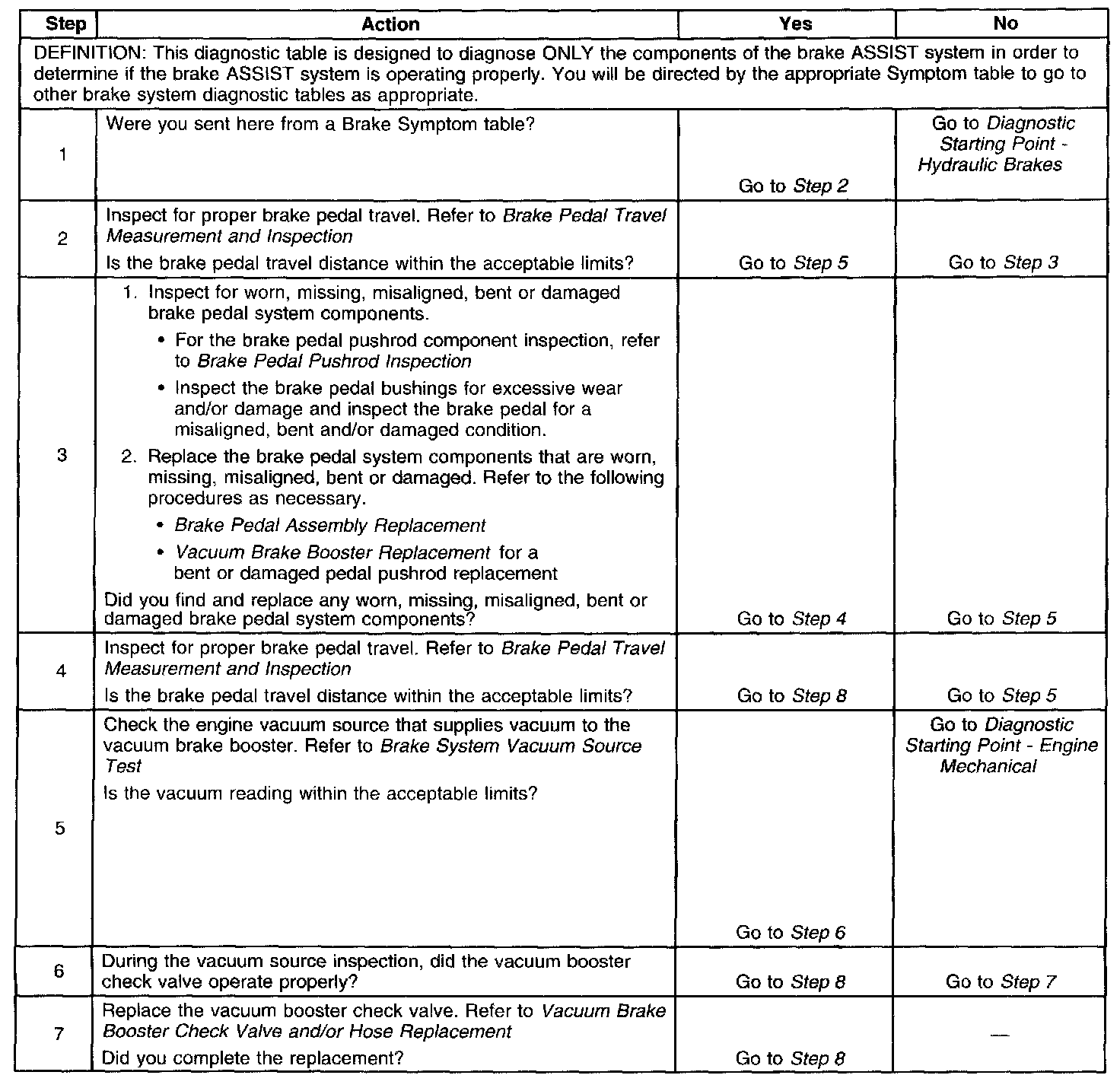

Test 1-7:
Test 8-13:
