P0621

DTC P0621

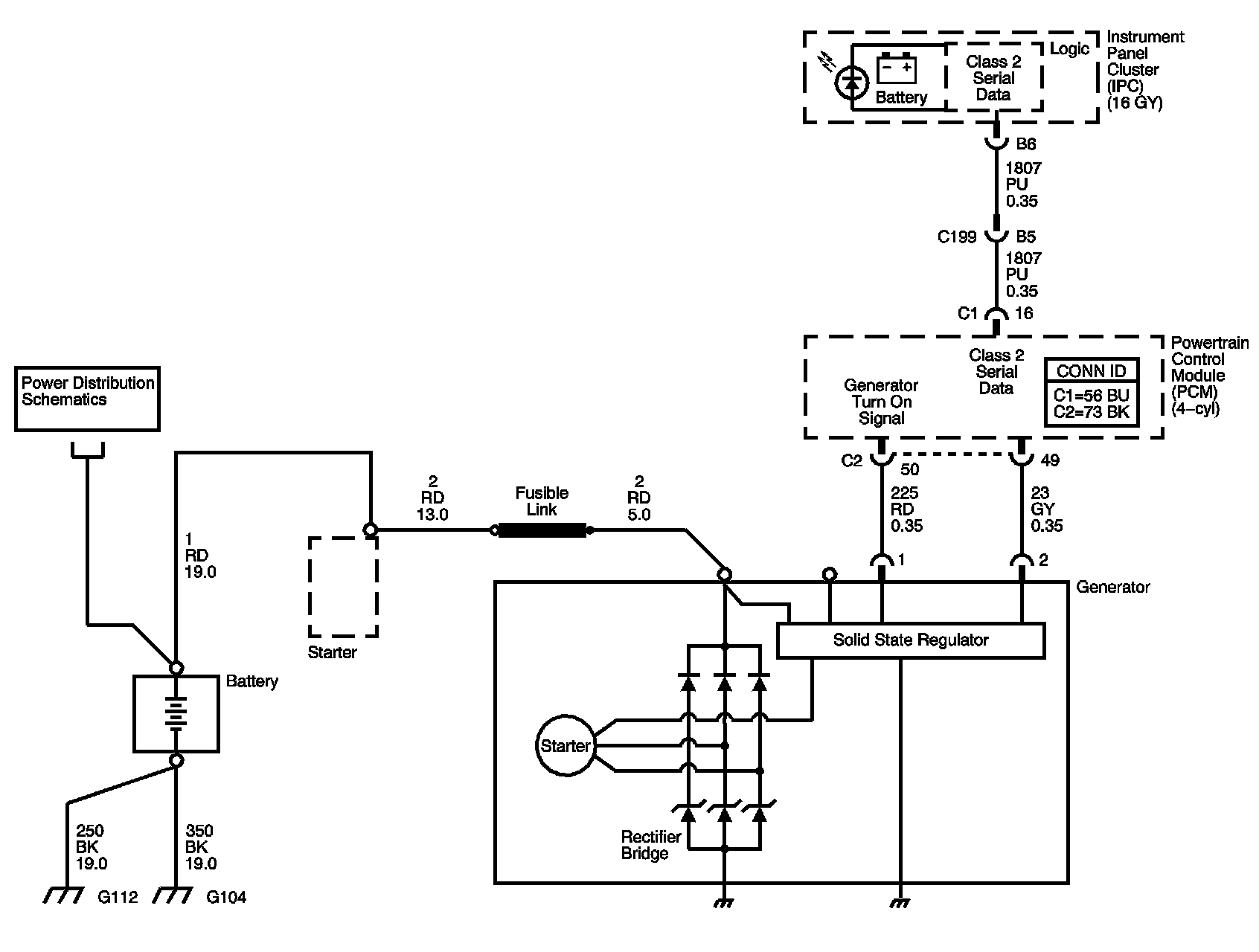

CIRCUIT DESCRIPTION




The powertrain control module (PCM) uses the generator turn on signal circuit to control the load of the generator on the engine. A high side driver in the PCM applies a voltage to the voltage regulator. When the PCM turns ON the high side driver, the voltage regulator turns ON the field circuit. When the PCM turns OFF the high side driver, the voltage regulator turns OFF the field circuit.

The PCM monitors the state of the generator turn on signal circuit. With the engine running, the PCM should detect a high generator turn on signal circuit, or when the charging system malfunctions. If the PCM detects a low generator turn on signal circuit DTC P0621 will set. When the DTC sets, the PCM will send a class 2 serial data message to the instrument panel cluster (IPC) to illuminate the charge indicator.

CONDITIONS FOR RUNNING THE DTC

Key On Test
- The Key is in the ON position for 5 seconds.
- The engine is OFF.

Engine Run Test
- The engine is running.
- The engine speed is less than 3,000 RPM.

CONDITIONS FOR SETTING THE DTC
During key ON test, the PCM detects a high signal voltage on the generator turn on signal circuit for at least 5 seconds.

During the RUN test, the PCM detects a low signal voltage on the generator turn on signal circuit for at least 10 seconds.

ACTION TAKEN WHEN THE DTC SETS
- The PCM sends a class 2 message to the IPC to illuminate the charge indicator.
- The PCM will not illuminate the malfunction indicator lamp (MIL).
- The PCM will store the conditions present when the DTC set as Fail Records data only.

CONDITIONS FOR CLEARING THE MIL/DTC
- The history DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
- The DTC can be cleared by using the scan tool Clear DTC Information function.

TEST

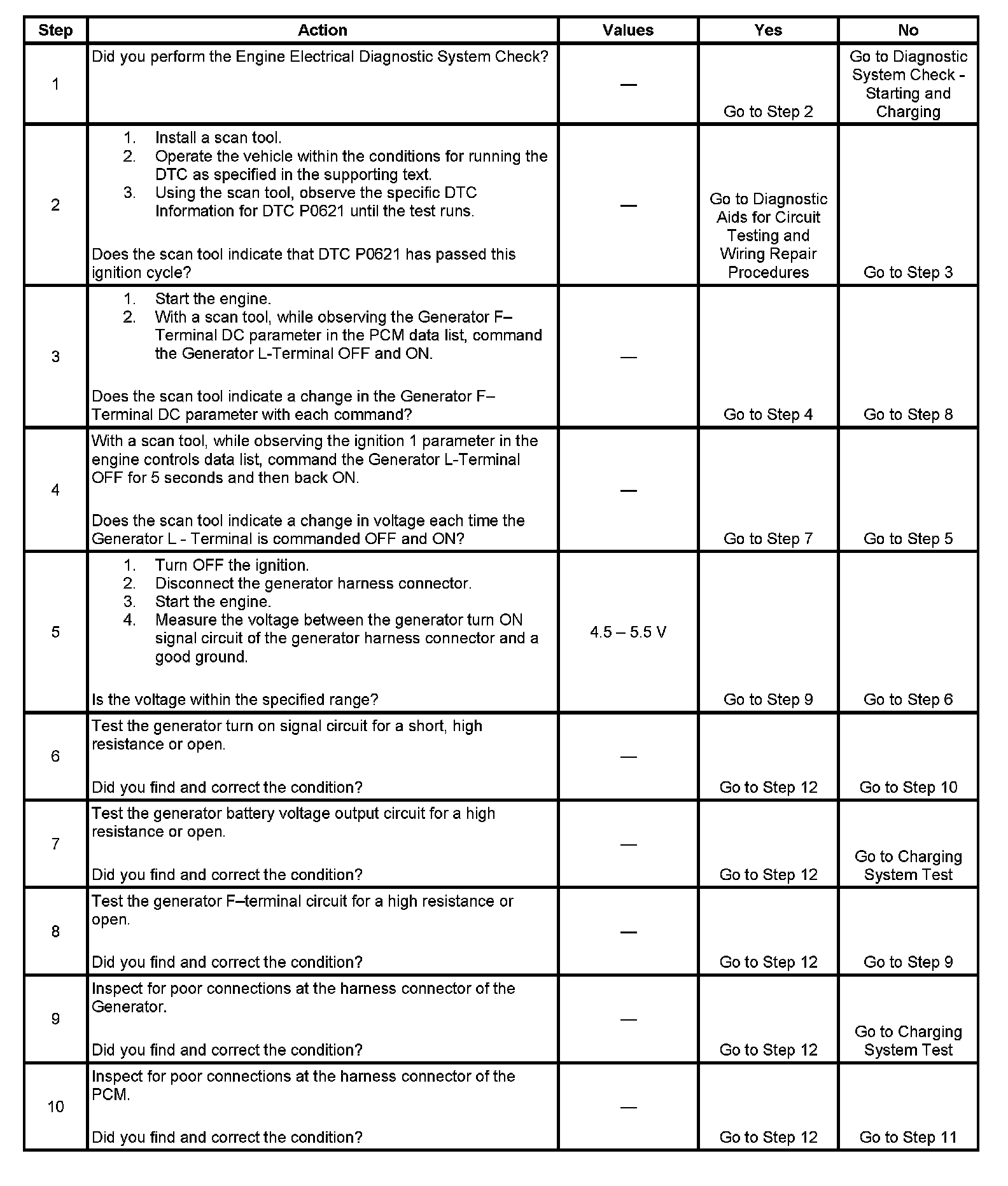

Steps 1-10:

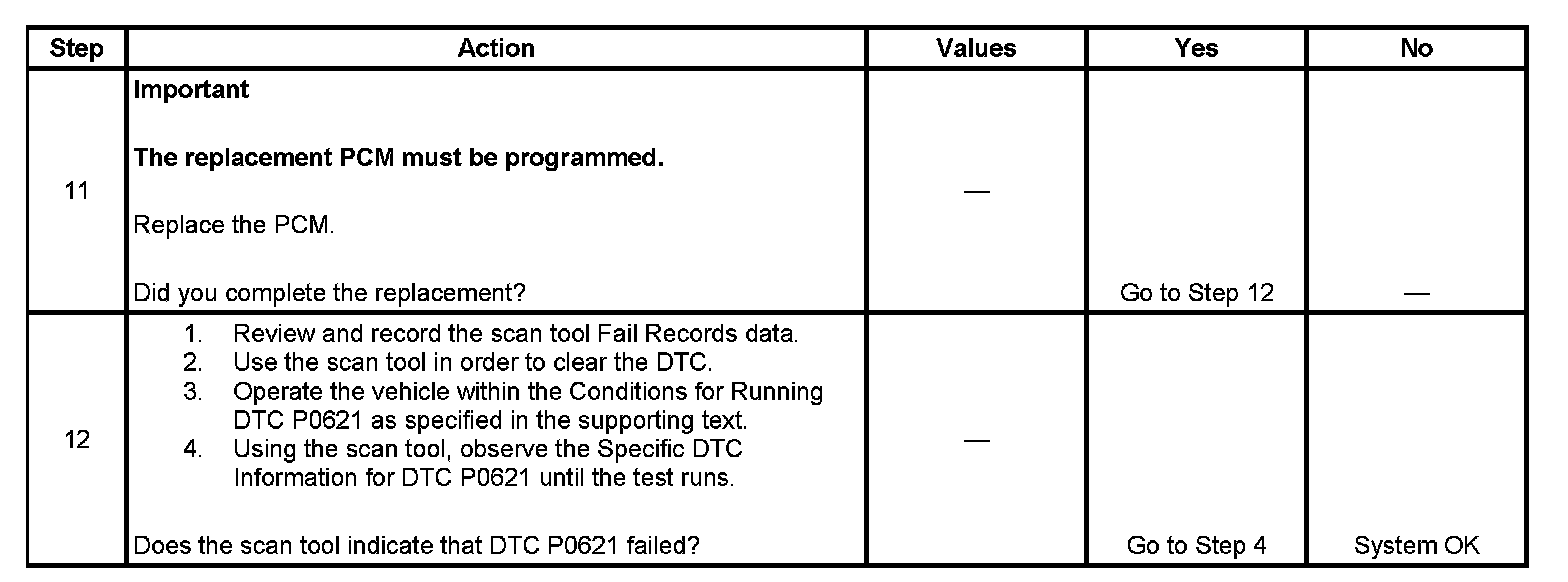

Steps 11-12:
