P0332
DTC P0332CIRCUIT DESCRIPTION
The knock sensor (KS) system enables the engine control module (ECM) to control the ignition timing for the best possible performance while protecting the engine from potentially damaging levels of detonation. The KS system uses two sensors.
KS 1 is located on the right side of the engine, or the rear of the engine compartment.
KS 2 is located on the left side of the engine, or the front of the engine compartment.
The KS produces an AC voltage signal that varies depending on the vibration level during engine operation. The ECM adjusts the spark timing based on the amplitude and the frequency of the KS signal. The ECM receives the KS signal through a signal circuit. The KS ground is supplied by the ECM through a low reference circuit. The ECM learns the minimum and the maximum amplitude of the noise that the engine produces. The ECM should monitor a normal KS signal within the voltage range. If the ECM detects the KS signal outside of the voltage range, or the KS signal is not present, a DTC sets. DTC P0327 refers to KS 1 and DTC P0332 refers to KS 2.
CONDITIONS FOR RUNNING THE DTC
- The engine coolant temperature (ECT) sensor is more than 40°C (104°F).
- The engine speed is more than 2,000 RPM.
- The engine load is more than 40 percent.
CONDITIONS FOR SETTING THE DTC
The KS signal is below the normal operating range or the KS signal is not present.
ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.
CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.
DIAGNOSTIC AIDS
- Inspect the KS for physical damage. A KS that is dropped or damaged may cause a DTC to set.
- Inspect the KS for proper installation. A KS that is loose or over torqued may cause a DTC to set. The KS should be free of thread sealant. The KS mounting surface should be free of burrs, casting flash, and foreign material.
- The KS must be clear of hoses, brackets, and engine electrical wiring.
- For an intermittent condition, refer to Intermittent Conditions. Intermittent Conditions

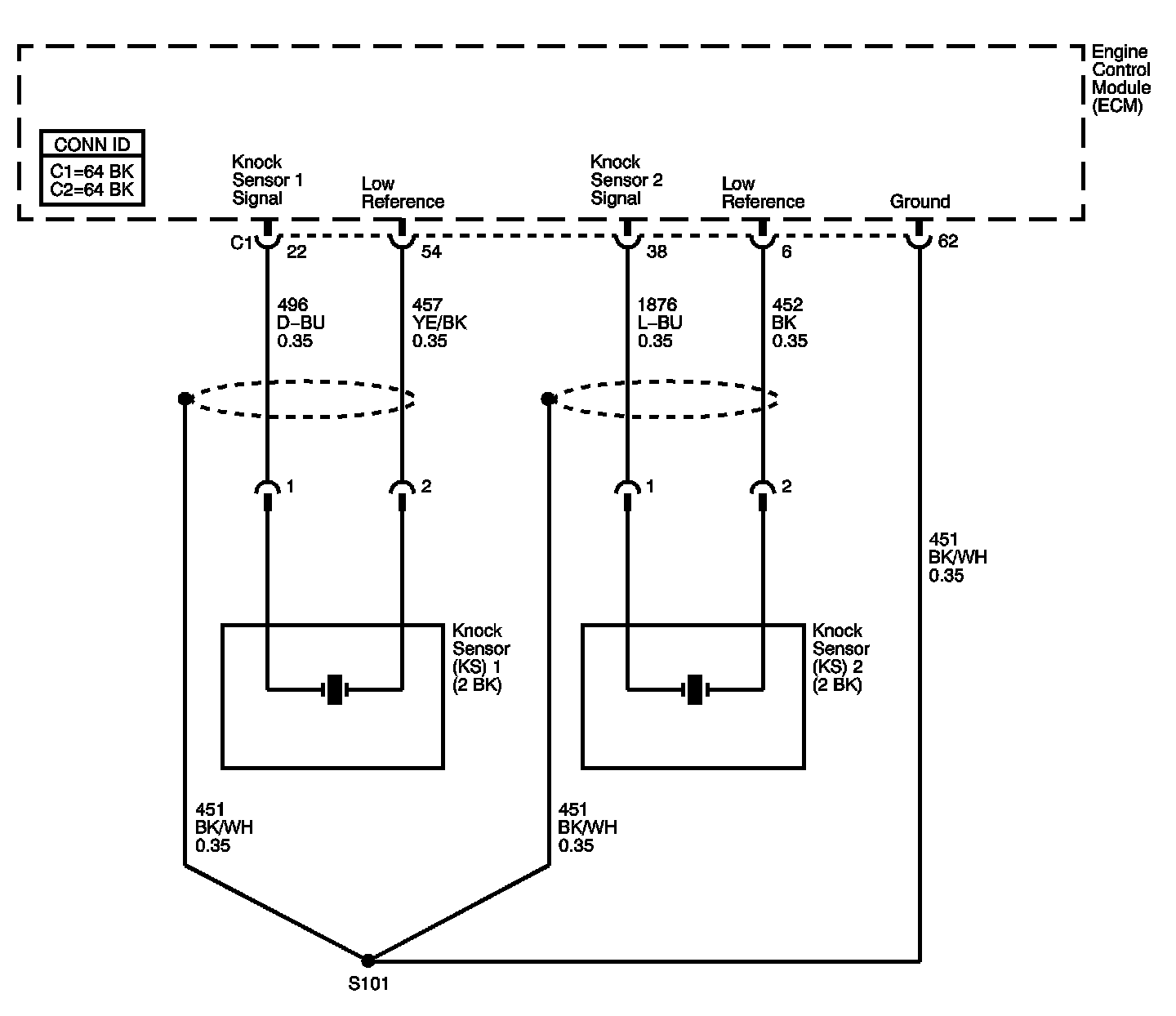

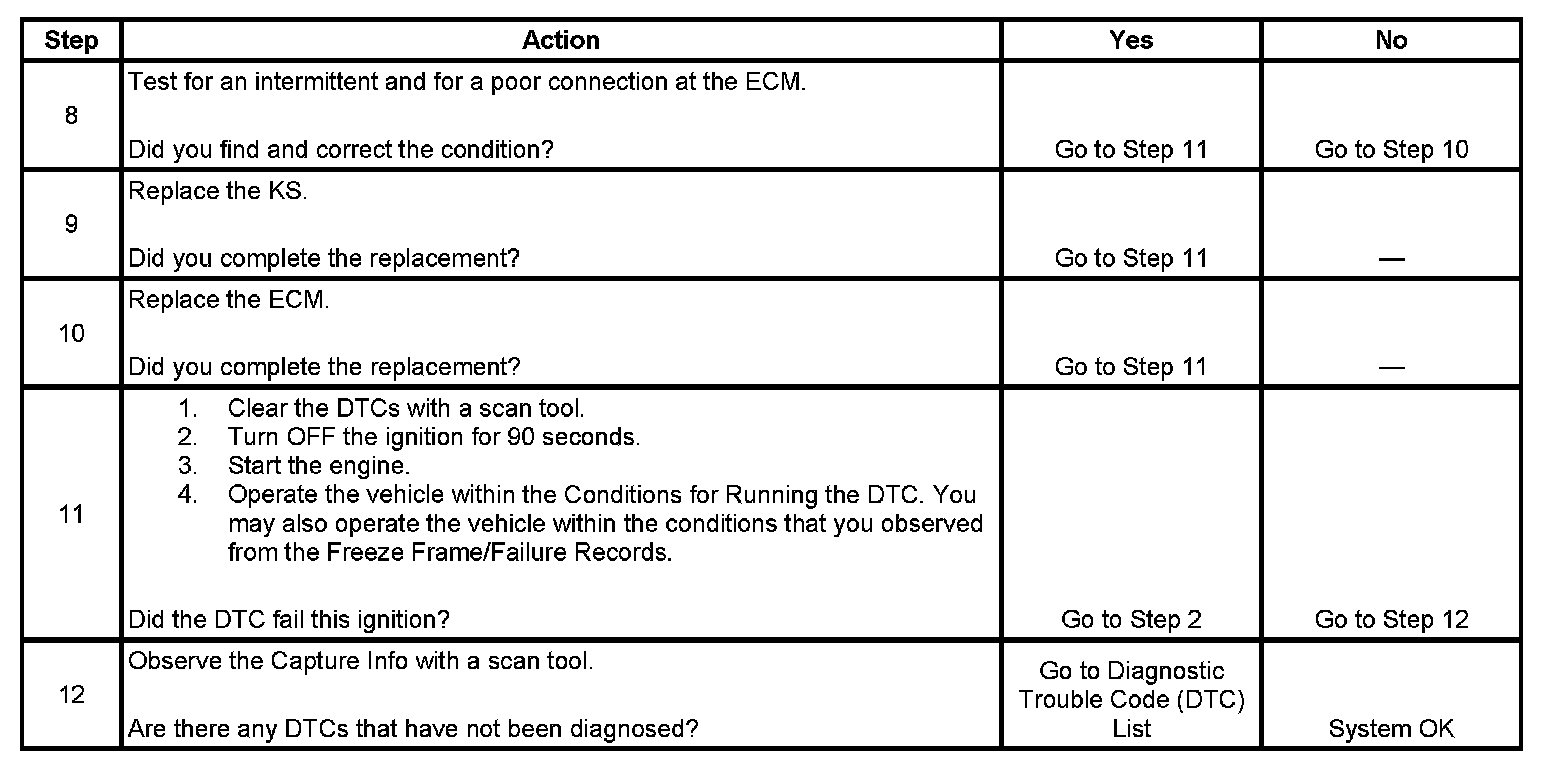

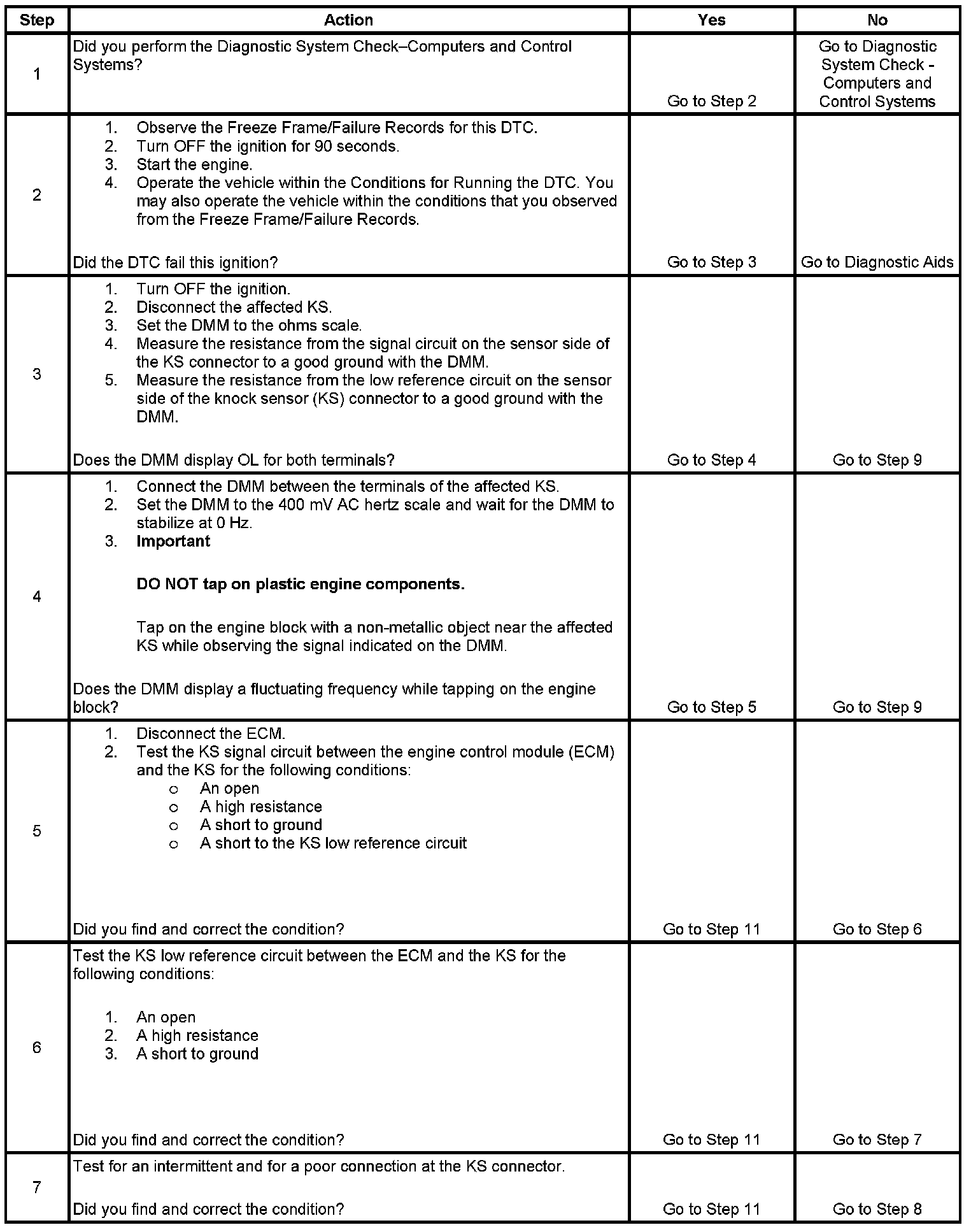

TEST
