P0222

DTC P0222

CIRCUIT DESCRIPTION




The throttle position (TP) sensors 1 and 2 are located within the throttle body assembly. The TP sensors share a common 5-volt reference circuit and a common low reference circuit. The 5-volt reference circuit is also shared with the accelerator pedal position (APP) sensor 2. The 5-volt reference voltage is supplied on 2 separate engine control module (ECM) terminals, but the terminals are connected internally to the same voltage supply. Each TP sensor has an individual signal circuit, which provides the ECM with a signal voltage proportional to throttle the plate movement. When the throttle plate is in the closed position, the TP sensor 1 signal voltage is near the low reference and increases as the throttle plate is opened. The TP sensor 2 signal voltage at closed throttle is near the 5-volt reference and decreases as the throttle plate is opened. If the ECM detects the TP sensor 2 signal voltage is less than 0.16 volt, DTC P0222 sets.

CONDITIONS FOR RUNNING THE DTC
- The battery voltage is more than 8 volts.
- The engine speed is more than 1,320 RPM.

CONDITIONS FOR SETTING THE DTC
The TP sensor 2 voltage is less than 0.16 volt for more than 140 milliseconds.

ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.

TEST DESCRIPTION

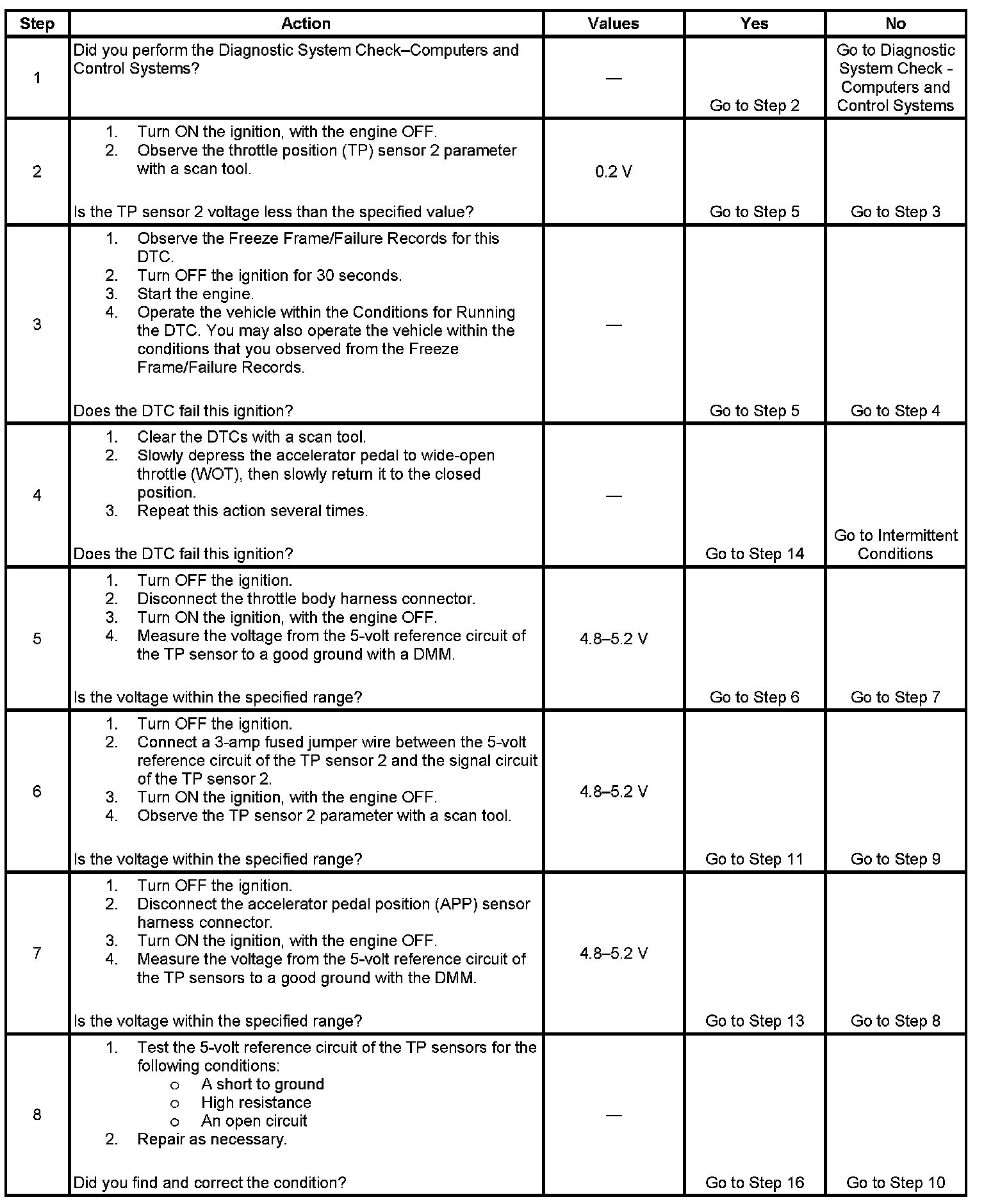

Steps 1-8:

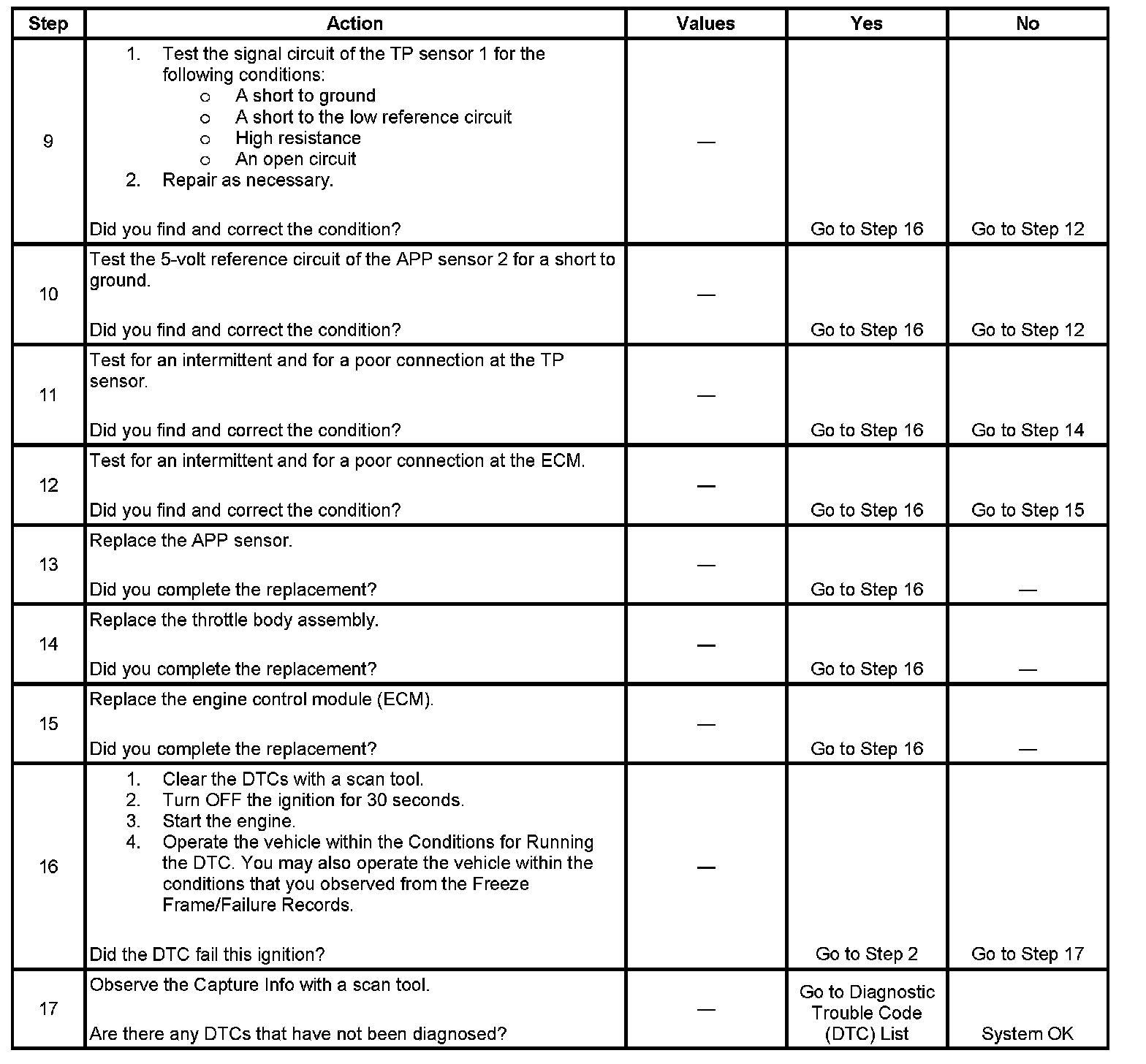

Steps 9-17:

The numbers below refer to the step numbers on the diagnostic table.
4. The ECM performs a comparison of the signals from both TP sensors during the entire range of operation. If the DTC does not set with the key ON and the accelerator pedal released, the actuation of the throttle may cause the DTC to set.
7. The 5-volt reference for the TP sensors and the APP sensor 2 are connected inside the ECM. This step is to determine if the APP sensor is affecting the 5-volt reference circuit of the TP sensors.
