P0123
DTC P0123CIRCUIT DESCRIPTION
The throttle position (TP) sensors 1 and 2 are located within the throttle body assembly. The TP sensors share a common 5-volt reference circuit and a common low reference circuit. The 5-volt reference circuit is also shared with the accelerator pedal position (APP) sensor. The 5-volt reference voltage is supplied on two separate engine control module (ECM) terminals, but the terminals are connected internally to the same voltage supply. Each TP sensor has an individual signal circuit which provides the ECM with a signal voltage proportional to throttle the plate movement. When the throttle plate is in the closed position, the TP sensor 1 signal voltage is near the low reference and increases as the throttle plate is opened. The TP sensor 2 signal voltage at closed throttle is near the 5-volt reference and decreases as the throttle plate is opened. If the ECM detects the TP sensor 1 signal voltage is less than 4.6 volts, DTC P0123 sets.
CONDITIONS FOR RUNNING THE DTC
- The battery voltage is more than 8 volts.
- The ignition is ON.
CONDITIONS FOR SETTING THE DTC
The TP sensor 1 voltage is more than 4.6 volts for more than 140 milliseconds.
ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.
CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.

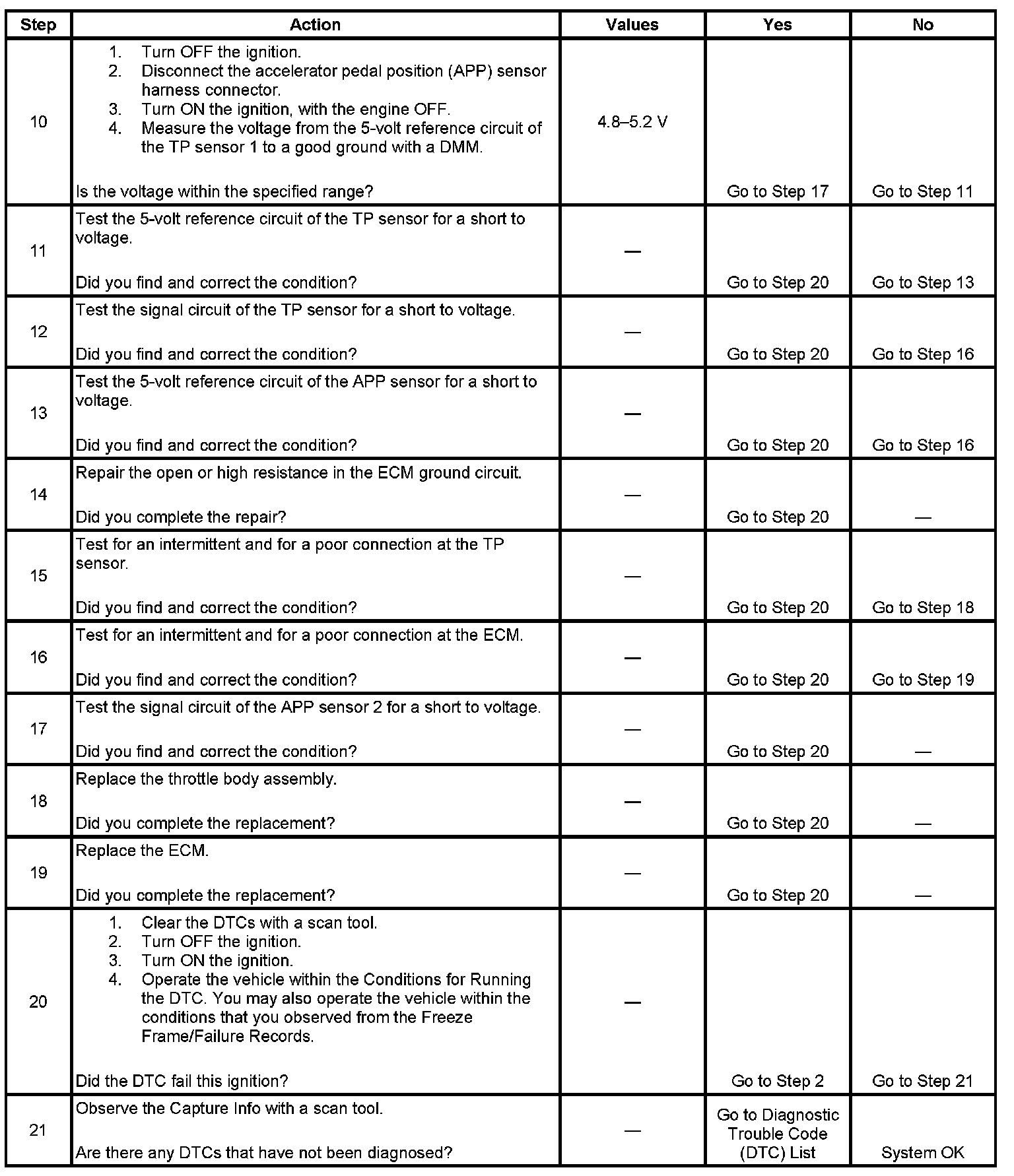

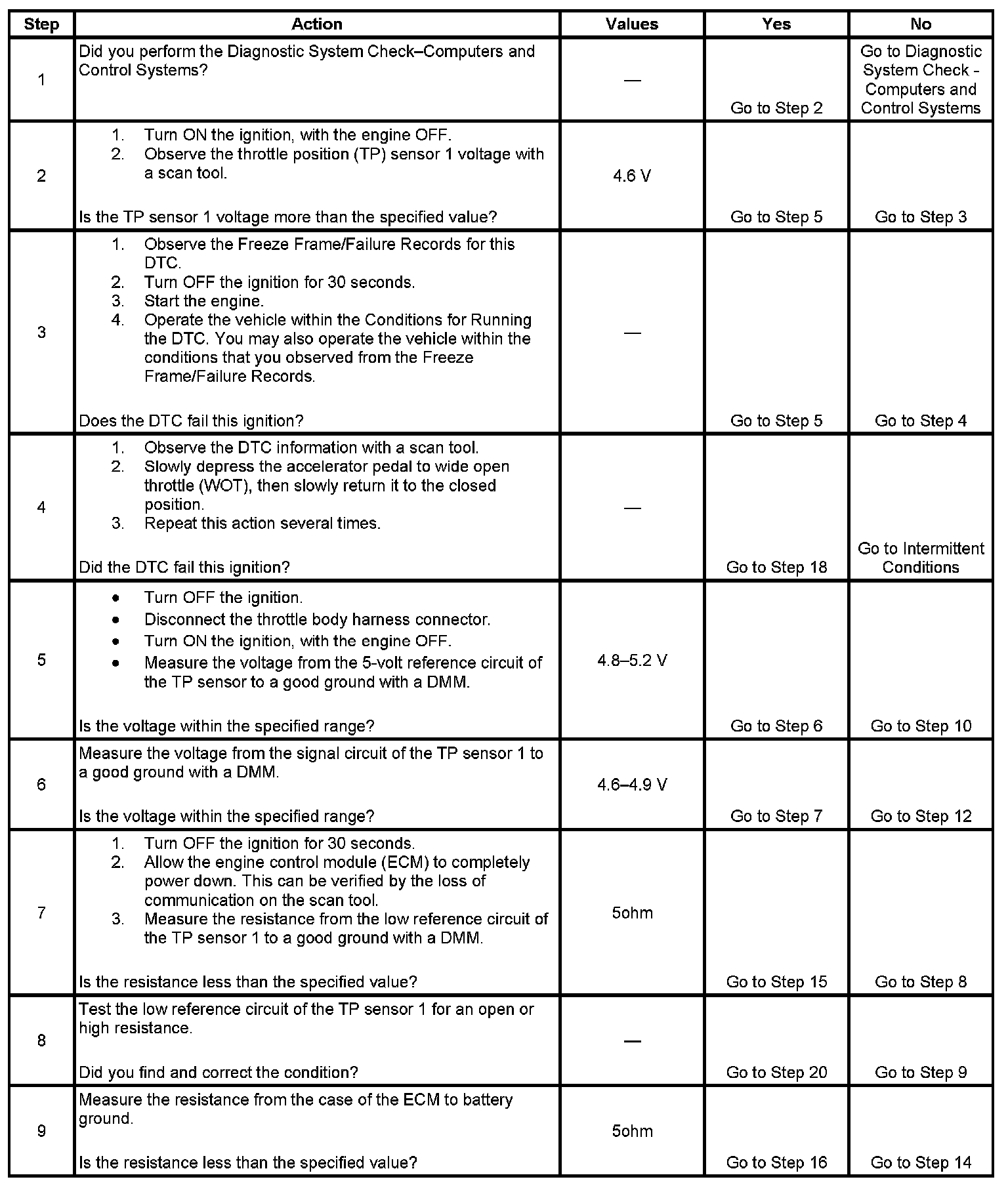

TEST
