B3137

DTC B3137

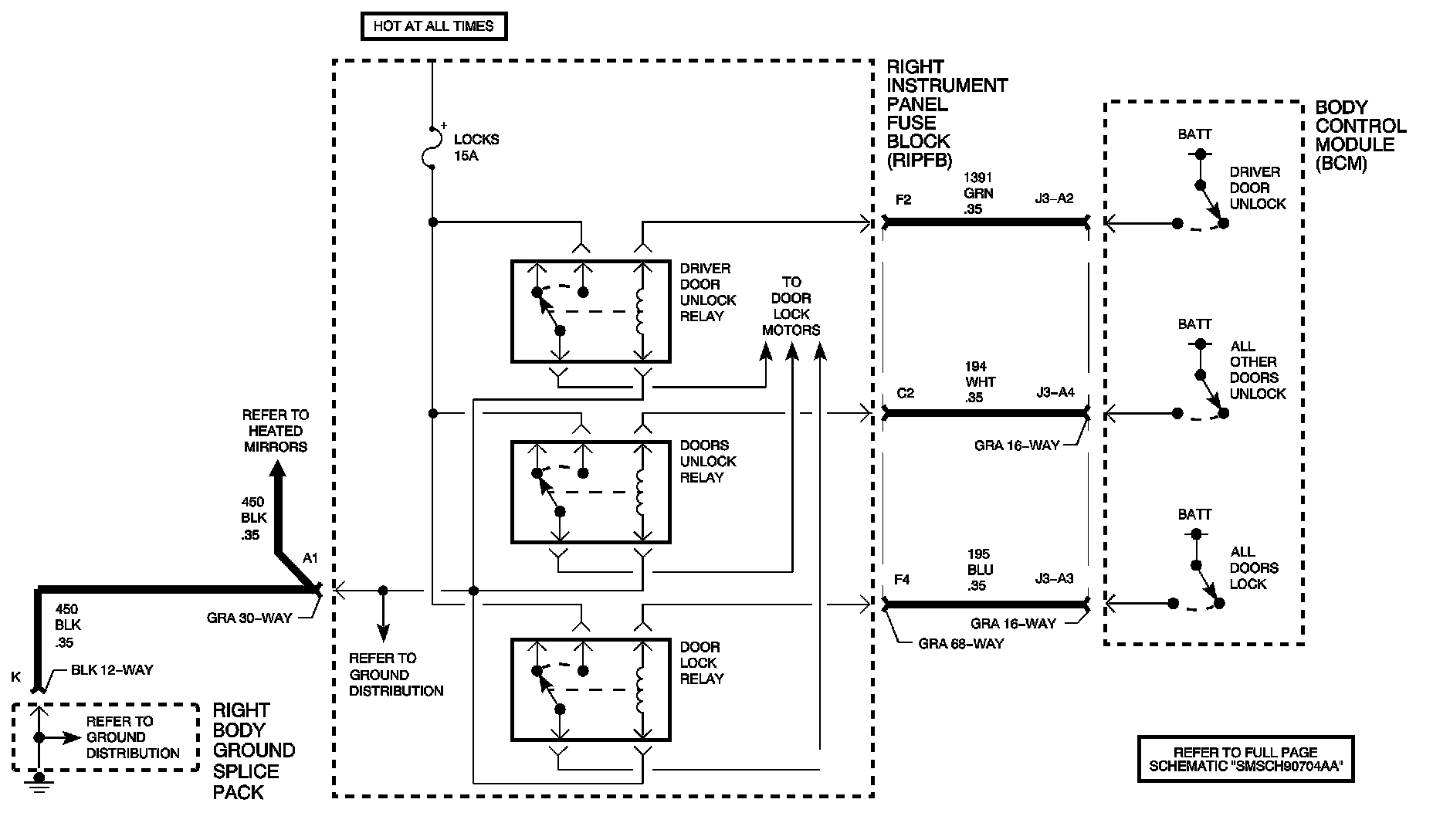

CIRCUIT DESCRIPTION




The body control module (BCM) controls the door lock relay. Voltage is applied to the door lock relay through the door lock relay control circuit when the BCM senses a door lock switch activation or a keyless entry lock command.

CONDITIONS FOR RUNNING THE DTC
Battery positive voltage is between 9 and 16 volts.

CONDITIONS FOR SETTING THE DTC
- The BCM detects an open in the door lock relay control. This condition must be present for more than 0.3 seconds.
- The BCM detects a short to ground in the door lock relay control while commanding the door lock relay. This condition must be present for more than 0.3 seconds.

ACTION TAKEN WHEN THE DTC SETS
- The door lock relay will be inoperative.
- The BCM stores either DTC B3137 or DTC B31238 in memory.

CONDITIONS FOR CLEARING THE DTC
- A history DTC will clear after 100 consecutive fault free ignition cycles.
- A scan tool may be used to clear the DTC.

DIAGNOSTIC AIDS
- The following conditions may cause the DTC to set:
- An open or short to ground in the door lock relay control circuit
- The a faulty door lock relay
- The BCM is shorted to ground internally.
- If the DTC's are a history DTC, the fault may be intermittent.

TEST DESCRIPTION

Steps 1-12:

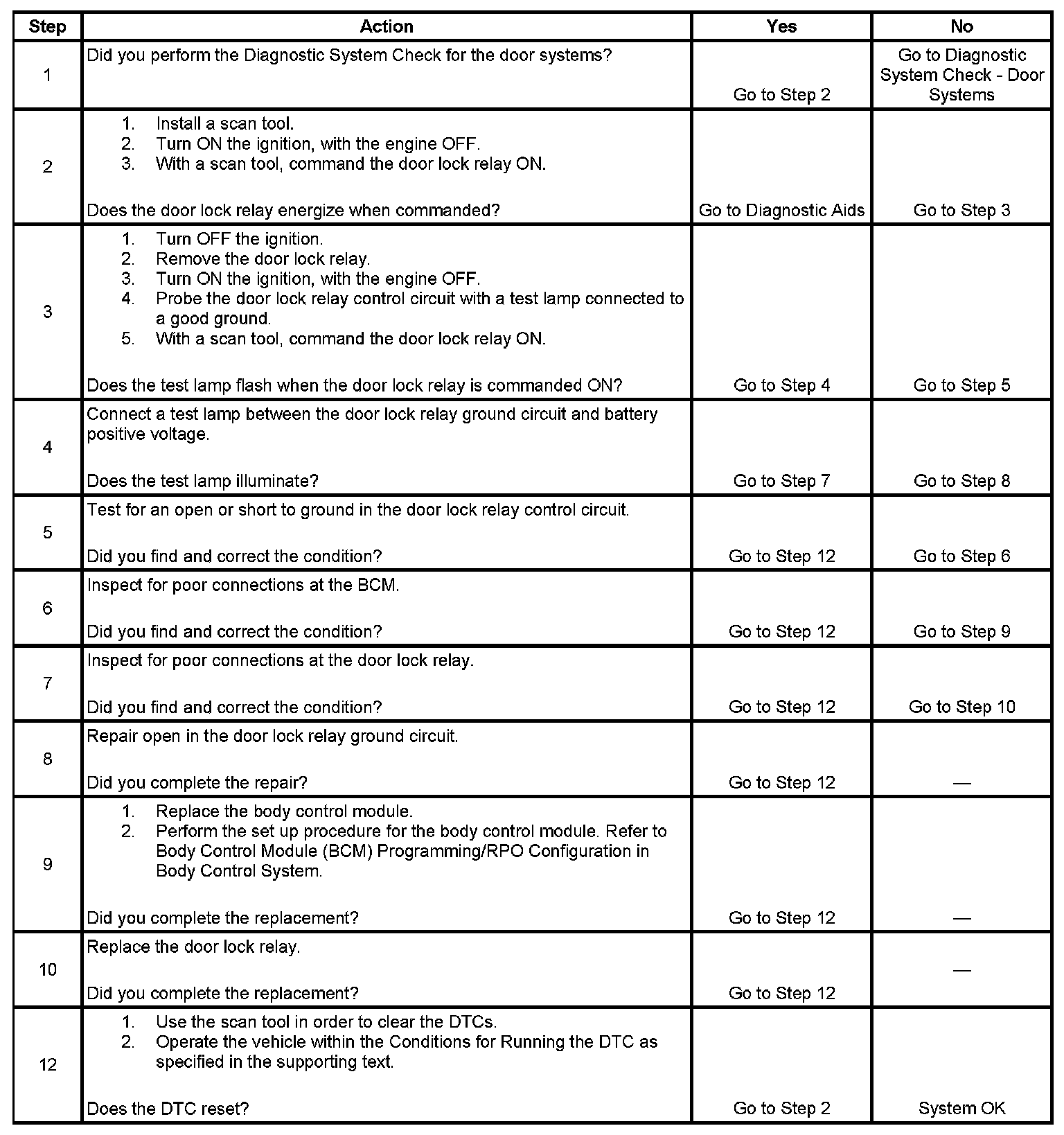

The numbers below refer to the step numbers on the diagnostic table.
2. Listen for an audible noise when the door lock relay is commanded. Command the door locks to lock and unlock. Repeat the commands as necessary.
3. Verifies that the BCM is providing voltage to the door lock relay.
4. Tests for an open in the door lock relay ground circuit.
