B2965

DTC B2965

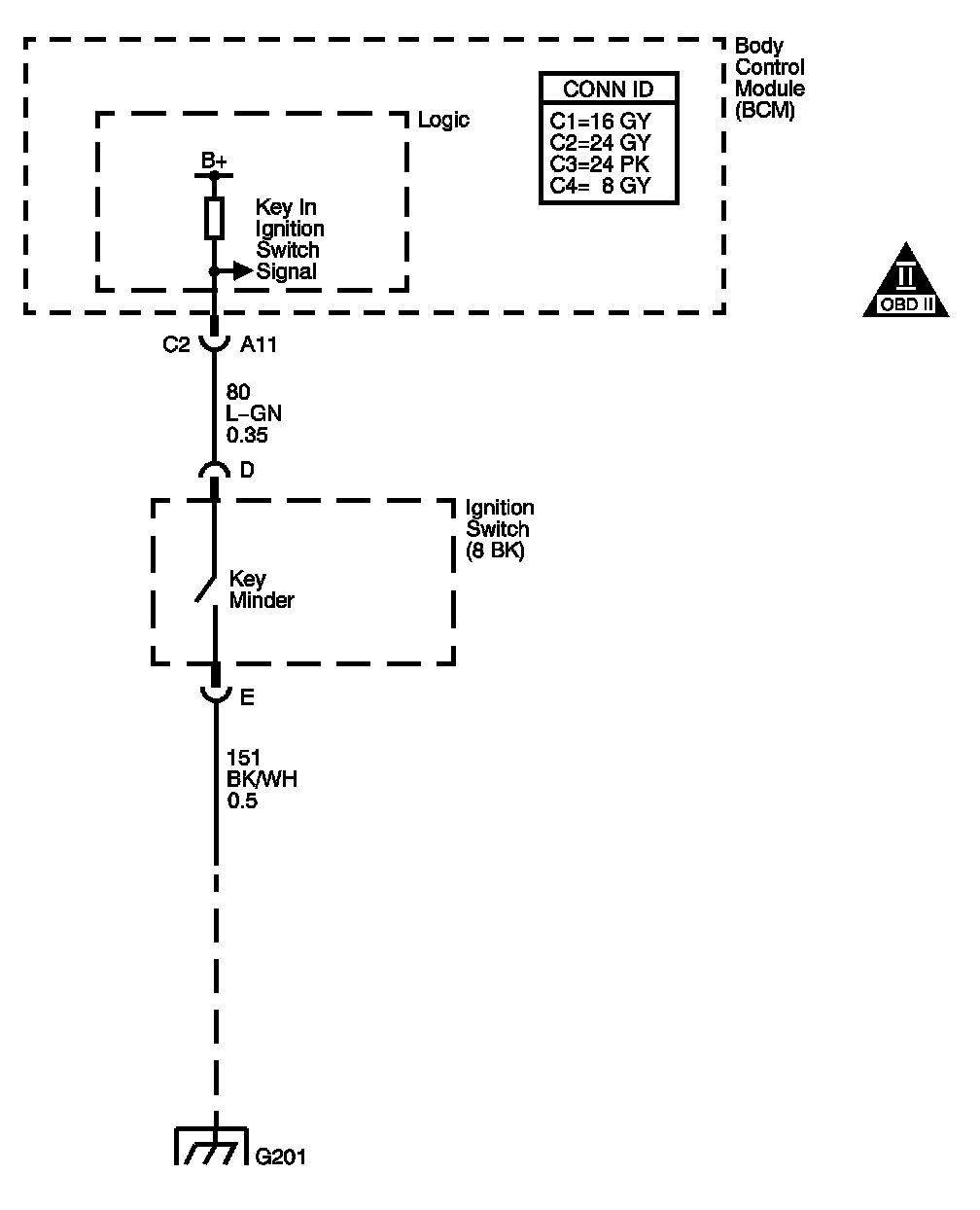

Circuit Description

- The ignition switch closes, signal circuit is low, when the key is in the ignition and opens, signal circuit is high, when the key is not in the ignition. The body control module (BCM) monitors the key in ignition signal circuit in order to activate an audible warning.

Conditions for Running the DTC

- The ignition is ON.

Conditions for Setting the DTC

- The ignition 1 voltage circuit is active, high signal, and the key in ignition signal circuit is high.
- The conditions above must be present for more than 0.3 seconds.

Action Taken When the DTC Sets

- The BCM stores DTC B2965 in memory.

Conditions for Clearing the DTC

- The DTC becomes history when the fault is no longer present.
- A history DTC will clear after 100 consecutive ignition cycles if the condition for the malfunction is no longer present.
- The BCM receives a clear code command from the scan tool.
