B2575

DTC B2575

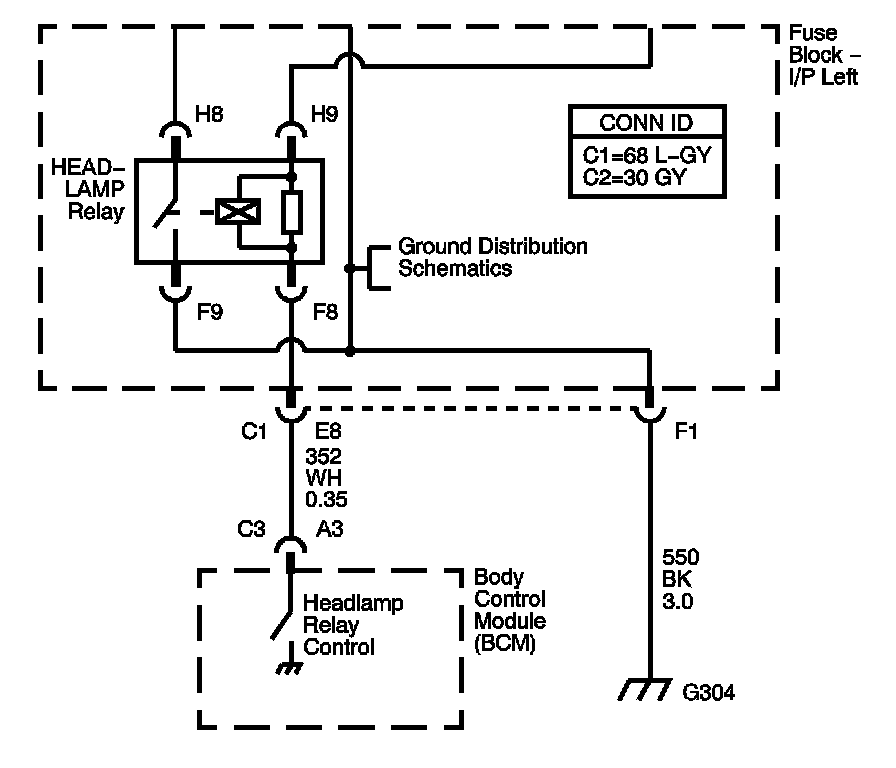

CIRCUIT DESCRIPTION




The body control module (BCM) turns ON the headlamp relay when the ambient light sensor senses a dark condition. Battery positive voltage is supplied to the headlamp relay at all times through the BACKUP/TURN fuse. The BCM grounds the headlamp relay control circuit in order to activate the relay.

CONDITIONS FOR RUNNING THE DTC
- The ignition switch is in the ON position.
- The ambient light sensor senses a dark condition, automatic lamp control (ALC) headlamps ON.

CONDITIONS FOR SETTING THE DTC
The headlamp relay control circuit is open for 5 seconds.

ACTION TAKEN WHEN THE DTC SETS
The SERVICE indicator illuminates.

CONDITIONS FOR CLEARING THE DTC
- The conditions for setting the DTC are no longer present.
- A history DTC clears after 100 malfunction free ignition cycles.
- The BCM receives the clear code command from the scan tool.

DIAGNOSTIC AIDS
- Turn the ignition switch to the OFF position, cover the ambient light sensor on the dash, wait for 15 seconds and then return the ignition to the ON position. The low beam headlamps should illuminate.
- If the DTC is a history DTC, the problem may be intermittent.

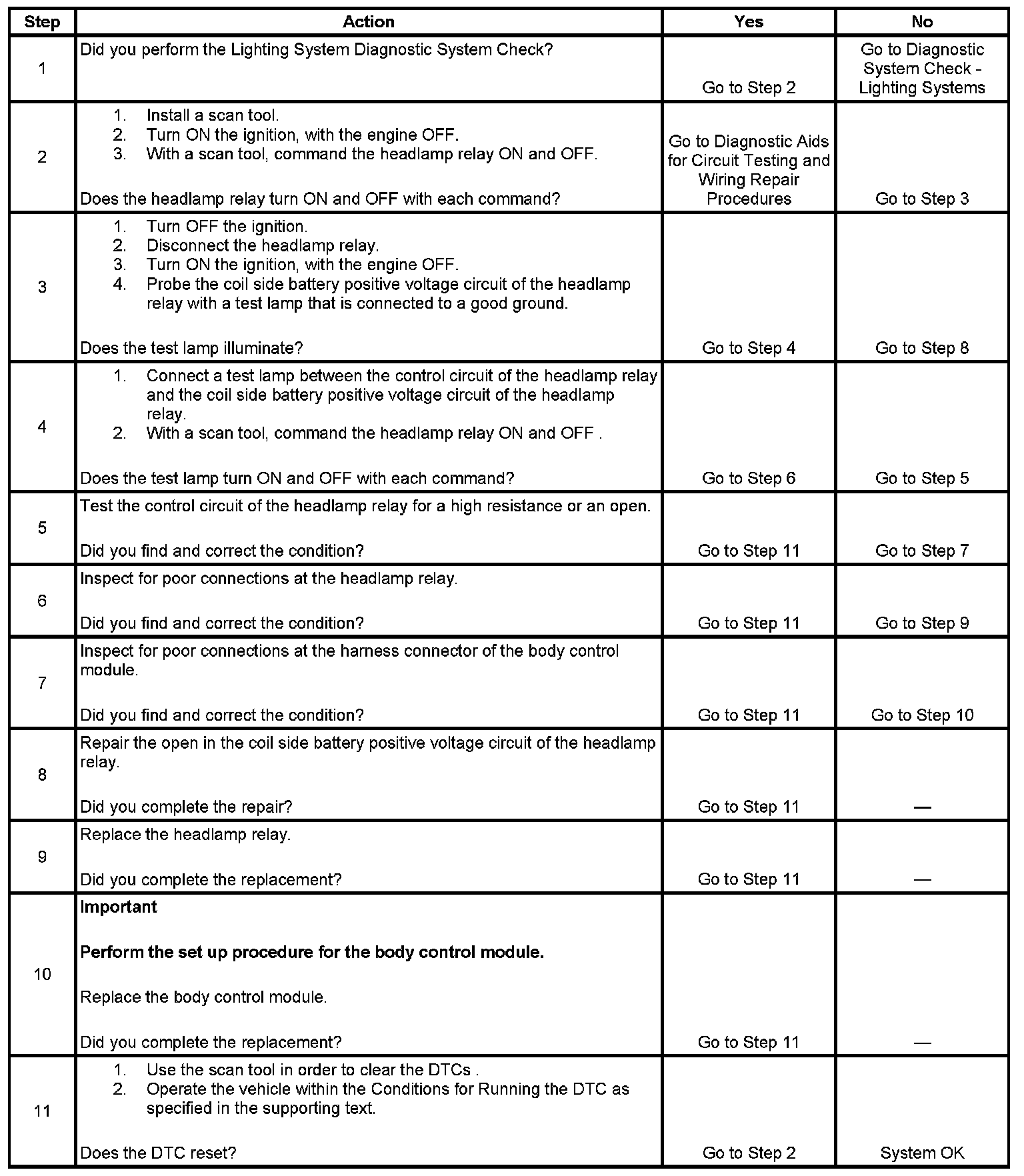

TEST DESCRIPTION

Steps 1-11:

The numbers below refer to the step numbers on the diagnostic table.
2. Listen for an audible click when the headlamp relay operates. Command both the ON and OFF states. Repeat the commands, as necessary.
3. Tests for voltage at the coil side of the headlamp relay. The BACKUP/TURN fuse supplies battery positive voltage to the coil side of the headlamp relay.
4. Verifies that the BCM is providing ground to the headlamp relay.
