B0286

DTC B0286

CIRCUIT DESCRIPTION




The body control module (BCM) monitors the rear defogger switch input. When the rear defogger is turned ON (defog switch closed), the BCM grounds the coil side of the rear defog relay. This will energize the relay activating the rear defogger.

The first time in an ignition cycle that the rear defogger is activated, the rear defogger will remain ON for 15 minutes, or until the ignition switch is turned OFF. If the rear defogger is activated again during the same ignition cycle, the rear defogger will remain ON for 7 1/2 minutes, or until the ignition switch is turned OFF.

CONDITIONS FOR RUNNING THE DTC
The ignition is in RUN.

CONDITIONS FOR SETTING THE DTC
- The BCM detects a short to battery voltage in the rear defog relay control circuit when the relay is energized.
- The BCM is commanding the rear defog system to the ON state.

ACTIONS TAKEN WHEN THE DTC SETS
- No light will illuminate in the I/P.
- When a shorted to battery voltage condition exists in circuit 193 and the BCM has been requested to activate the rear defog system, the BCM will attempt to switch the circuit 193 to ground. High current flow will result and the BCM output will go into a protective state. The BCM output will not allow itself to be activated for as much as 3 minutes.

CONDITIONS FOR CLEARING THE DTC
- This DTC will change from current to history when the fault is no longer present.
- A history DTC will clear after 100 consecutive ignition cycles if the condition for the malfunction is no longer present.

TEST

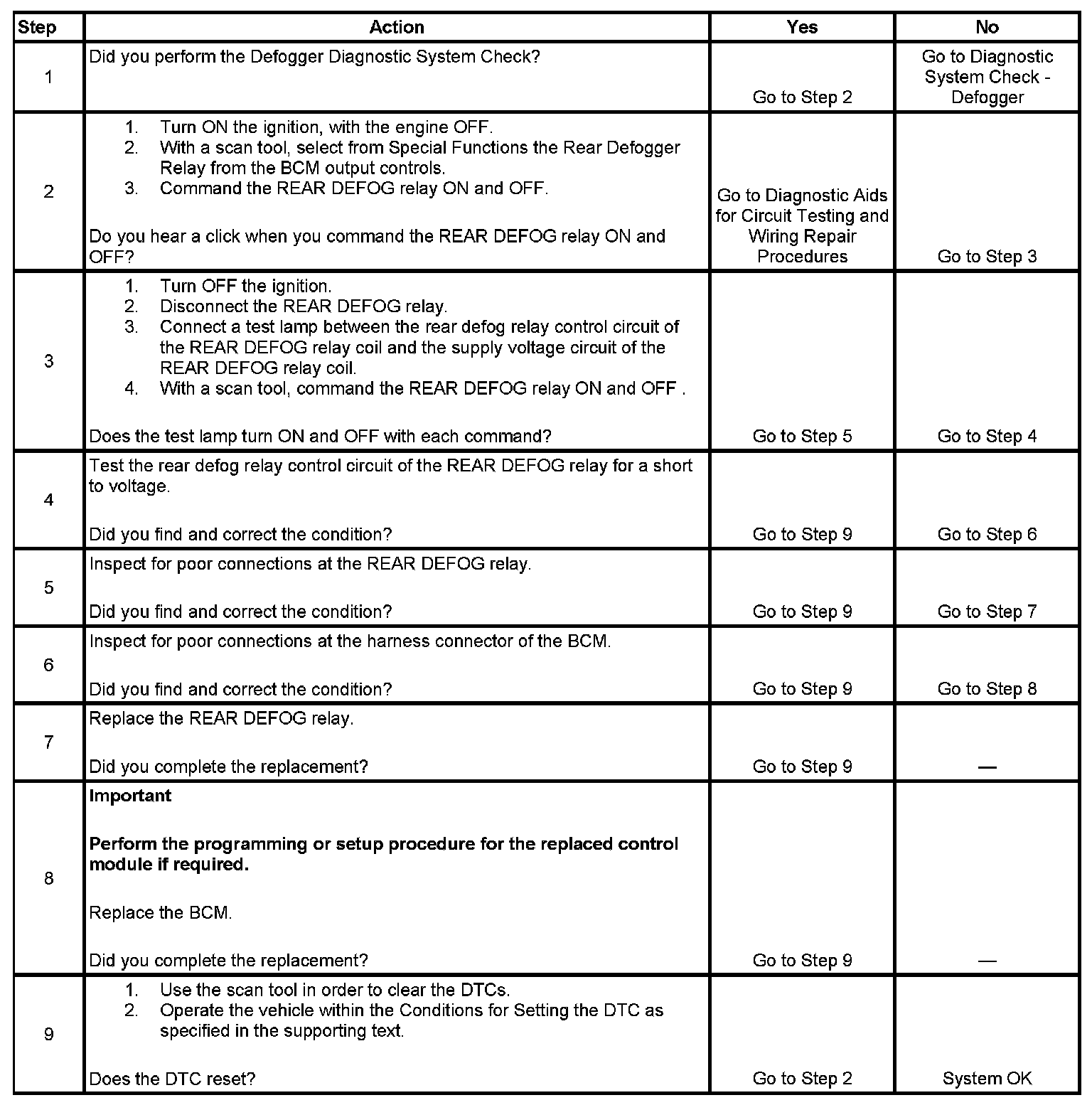

Steps 1-9:
