B0130

DTC B0130

CIRCUIT DESCRIPTION




The HVAC control module receives a position signal from the mode actuator. The mode actuator position sensor is a potentiometer that is connected to a 5-volt reference source. The variable output from the potentiometer feeds back a position signal to a pull up resistor which is located in the HVAC control module. This signal determines the necessary drive signal to the actuator motor, which provides the proper mode door position. This value is stored in the KEEP ALIVE Memory portion of the HVAC control module.

CONDITIONS FOR RUNNING THE DTC
- Ignition in the RUN position.
- Any of the conditions for setting the DTC are present.

CONDITIONS FOR SETTING THE DTC
The HVAC control module monitors the feedback circuit for the following faults:
- The mode actuator 5-volt reference circuit shorted to ground, voltage or an open.
- The mode actuator door control circuit shorted to ground, voltage or an open.
- An open in the mode actuator ground circuit.

ACTION TAKEN WHEN THE DTC SETS
The DTC B0130 mode door control feedback circuit malfunction sets.

CONDITIONS FOR CLEARING THE DTC
- The history DTC will clear after 40 consecutive ignition cycles have occurred without a malfunction.
- The DTC can be cleared by using the scan tool.
- The DTC will become history if the HVAC control module no longer detects a failure.

DIAGNOSTIC AIDS
- A damaged or broken mode actuator or mode door, can cause this DTC to set.
- If the condition is not present refer to Testing for Intermittent and Poor Connections in Diagnostic Aids.

TEST DESCRIPTION

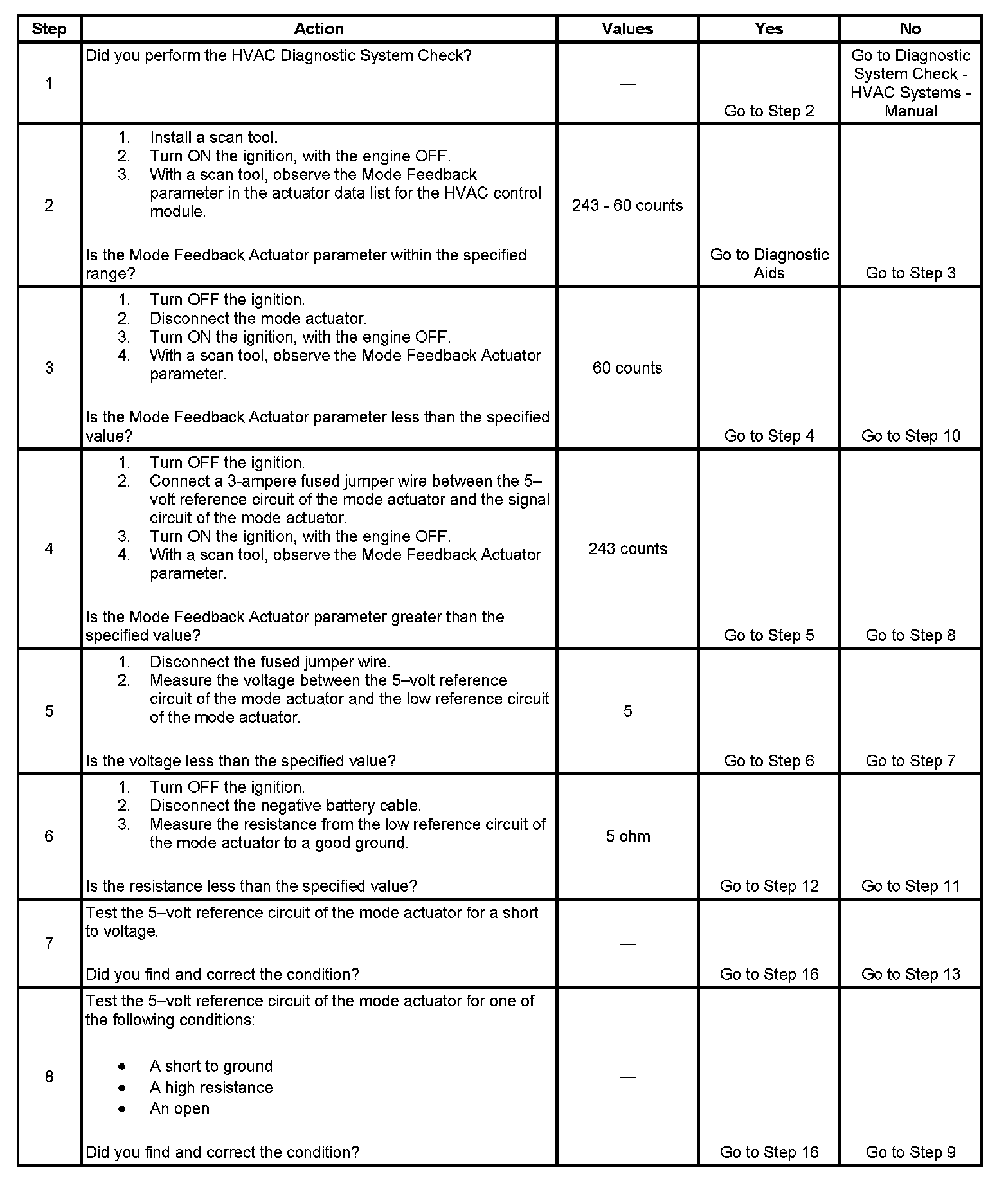

Steps 1-8:

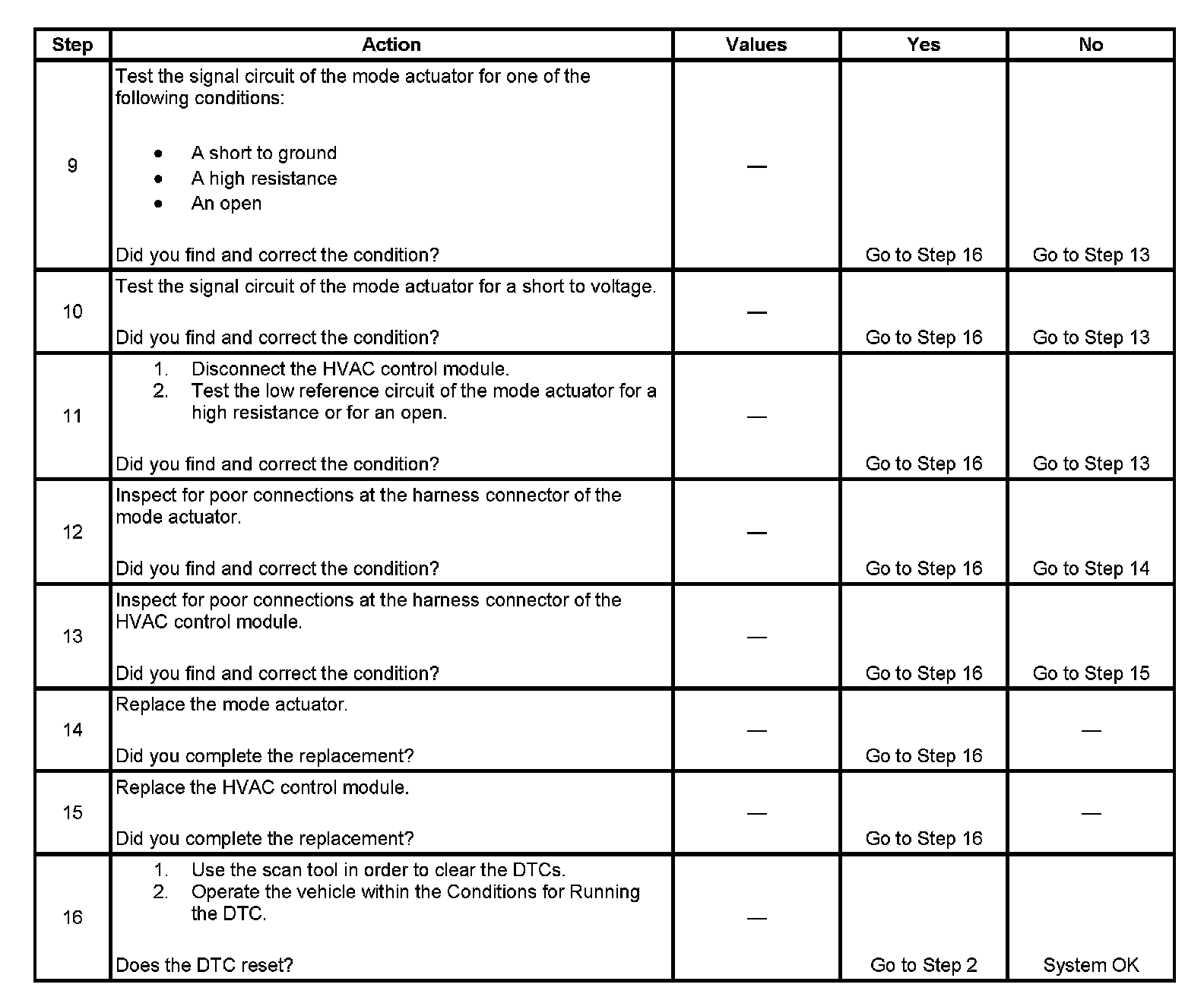

Steps 9-16:

The numbers below refer to the step numbers on the diagnostic table.
3. Tests for the proper operation of the circuit in the low voltage range.
4. Tests for the proper operation of the circuit in the high voltage range. If the fuse in the jumper opens if you perform this test, the signal circuit is short to ground.
5. Tests for a short to voltage in the 5-volt reference circuit.
6. Tests for a high resistance or for an open in the low reference circuit.
