Rear Side Door Stationary Window Replacement (Sedan/Wagon)
Window Replacement - Rear Door Stationary (Sedan)
Removal Procedure
1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door Service and Repair
2. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door (Service and Repair) .
3. Remove the outer sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer (Rear Door Window Belt Outer Sealing Strip Replacement) .
4. Move the rear door window down to align the window fasteners with the access holes in the door.
5. Remove the bolts that secure the regulator to the rear door window.
6. Separate the window from the regulator and lower the window.

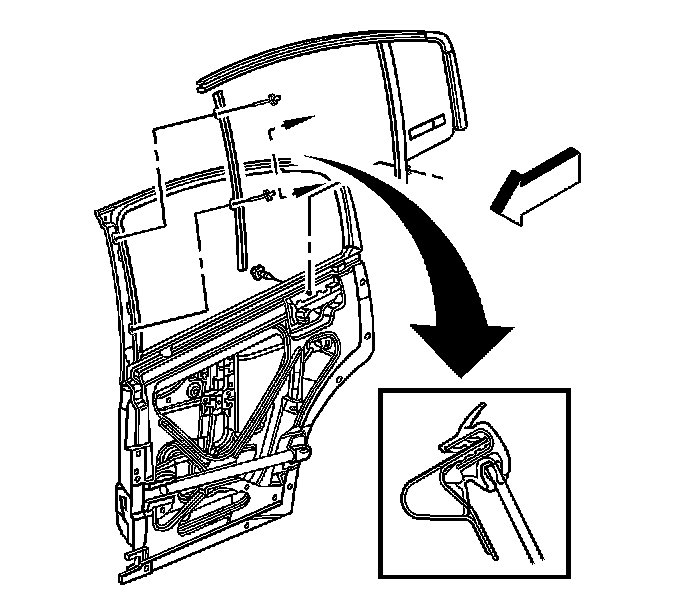

7. Remove the lower bolts from the stationary window.
8. Remove the front upper run channel rivets.
9. Roll the stationary window forward and remove the stationary window with the run channel weatherstrip from the door.
Installation Procedure
1. Remove the protective tape from the butyl adhesive on the window.
2. Position the stationary window with the run channel weatherstrip in the door.
Notice: Refer to Fastener Notice in Cautions and Notices.
3. Install the stationary window channel bolt.
Tighten the stationary window channel bolt to 10 N.m (89 lb in).
4. Install the stationary window rivets.
5. Slide the rear door window into the run channel weatherstrips.
6. Attach the rear door window to the regulator.
7. Install the bolts which secure the rear door window to the regulator.
Tighten the stationary window channel bolt to 10 N.m (89 lb in).
8. Install the outer sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer (Rear Door Window Belt Outer Sealing Strip Replacement) .
9. Install the rear door water deflector. Refer to Water Deflector Replacement - Rear Door (Service and Repair) .
10. Install the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door Service and Repair
