Rear Side Door Stationary Window Replacement (Coupe)

Window Replacement - Rear Door Stationary (Coupe)

Removal Procedure

1. Open the front and rear doors.
2. Remove the rear door upper garnish molding. Refer to Upper Garnish Molding Replacement - Rear Access Door (Coupe) (Upper Garnish Molding Replacement - Rear Access Door (Coupe)) .
3. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Access Door (Coupe) (Trim Panel Replacement - Side Access Door (Coupe)) .

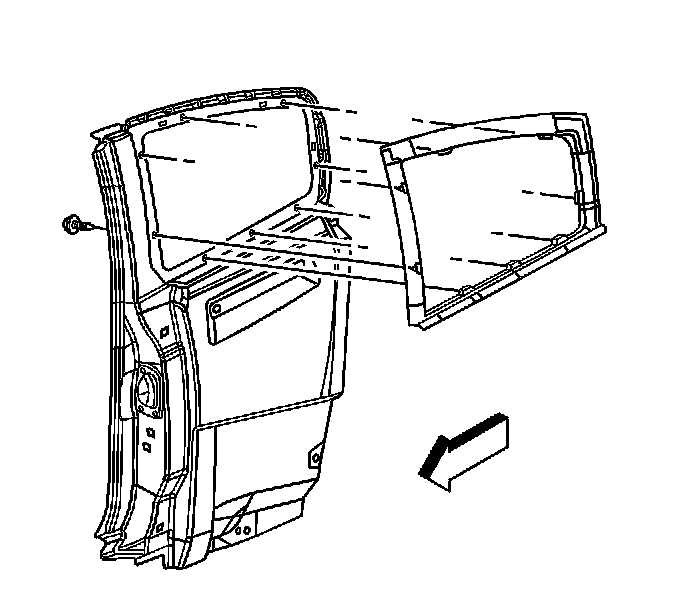

4. Remove the rear door window screws.
5. Push the window out of the opening, from the inside out.
6. Once the window is approximately 25 mm (1 in) away from the door frame, cut the butyl with a razor knife.
7. Release the window from the door frame.
8. Use 3M(TM) adhesive remover P/N 8984, or equivalent, to clean the butyl adhesive from the door frame.



Installation Procedure





1. Position the window into the door frame. Align the locator pins to the door frame.
2. Push the window into the door frame. Fully engage the butyl seal onto the door frame.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the rear door window screws.

Tighten the rear door window screws to 10 N.m (89 lb in).

4. Install the rear door trim panel. Refer to Trim Panel Replacement - Side Access Door (Coupe) (Trim Panel Replacement - Side Access Door (Coupe)) .
5. Install the rear door upper garnish molding. Refer to Upper Garnish Molding Replacement - Rear Access Door (Coupe) (Upper Garnish Molding Replacement - Rear Access Door (Coupe)) .
6. Close the rear and front doors.
