Rear Door Window Belt Inner Sealing Strip Replacement

Sealing Strip Replacement - Rear Door Window Belt Inner

Removal Procedure





1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door Service and Repair
2. Remove any seal staples.

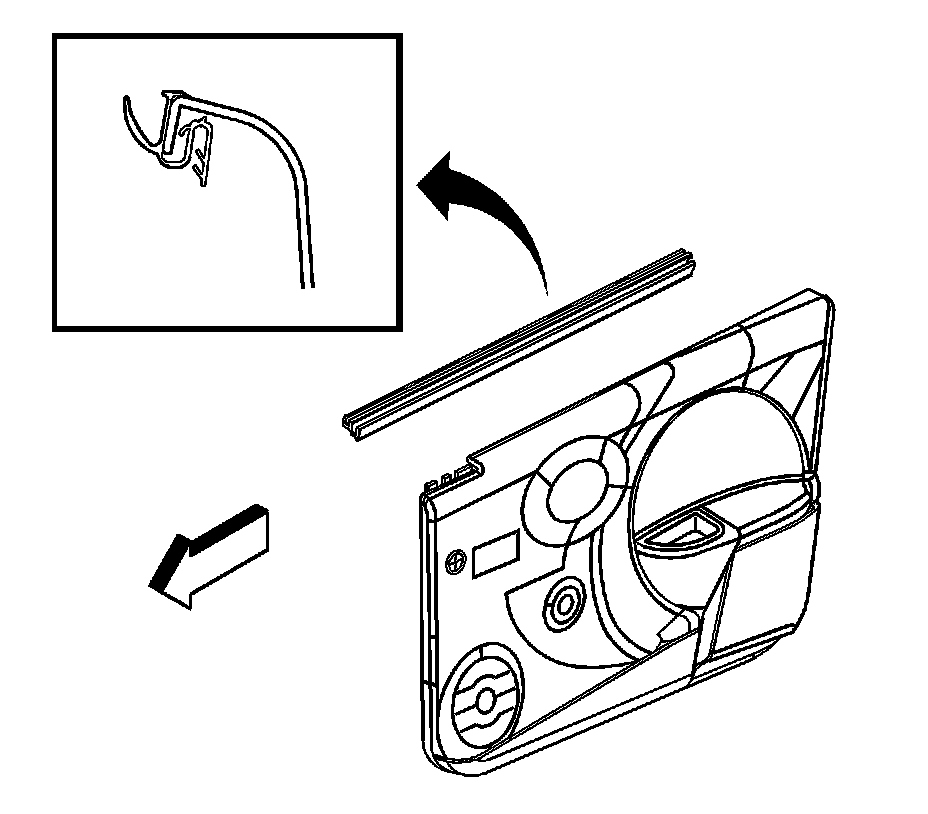

3. Pull the seal from the top of the door trim panel.



Installation Procedure





1. Position the seal to the top of the rear door trim panel.
2. Press on the seal until the seal is fully seated.
3. Install the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door Service and Repair
