Transmission Mount Bracket Replacement - Left

Transmission Mount Bracket Replacement - Left
Removal Procedure
1. Remove the transmission mount.

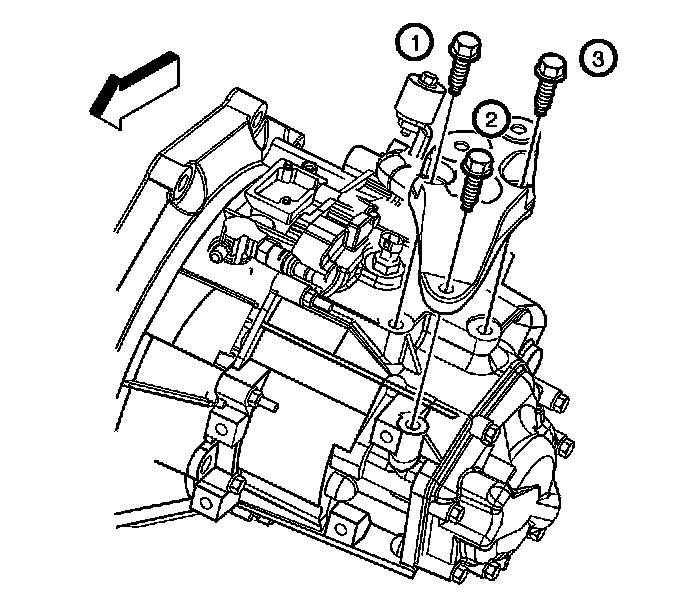

2. Remove the transmission mount bracket bolts in sequence (1), (2) and (3).
3. Remove the transmission mount bracket from the transmission.

Installation Procedure
1. Install the transmission mount bracket to the transmission.
2. HAND START the transmission mount bracket bolts in sequence (1), (2) and (3).





3. Notice: Refer to Fastener Notice in Service Precautions.

Using the above mandatory sequence, tighten the transmission mount bracket bolts.
Tighten the bolts to 50 Nm (37 ft. lbs.).
4. Install the transmission mount.
