Transmission Case Disassemble

Transmission Case Disassemble

Tools Required
- 87 90 800 Drift, Differential Seal
- 87 91 311 Bearing Driver Shaft Sleeve
- 87 92 236 Support

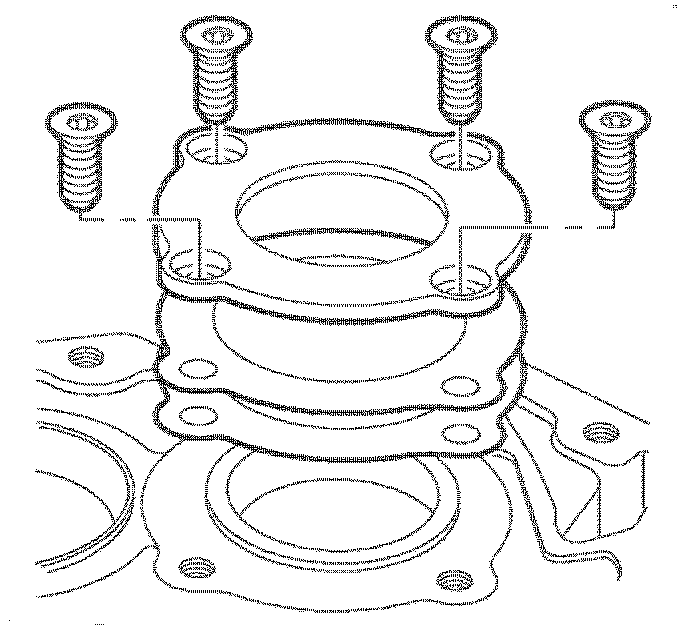

1. Remove the input shaft bearing retainer screws and the retainer.

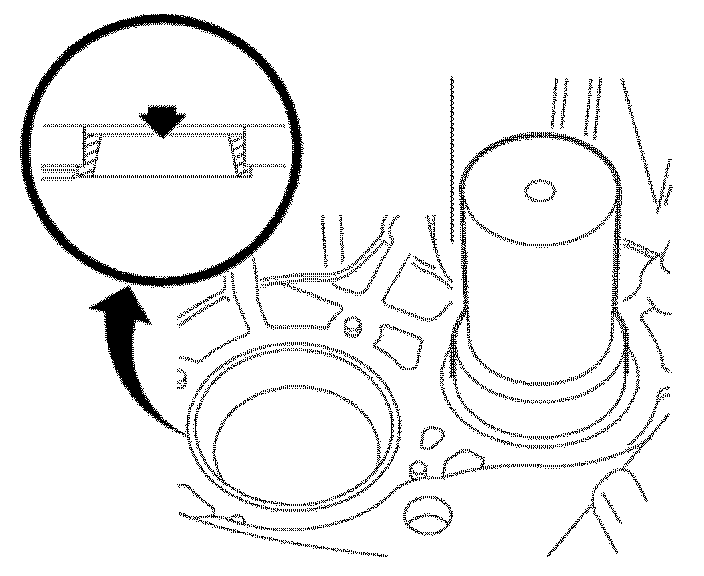

2. Press out the input shaft bearing race using the87 90 800 . Use the 87 92 236 as a base for the pressing operation.

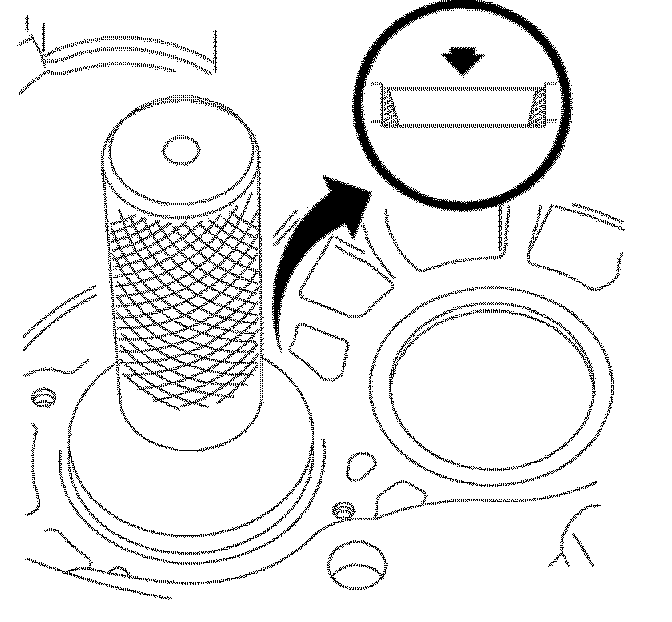

3. Press out the output shaft bearing race using the 87 91 311.

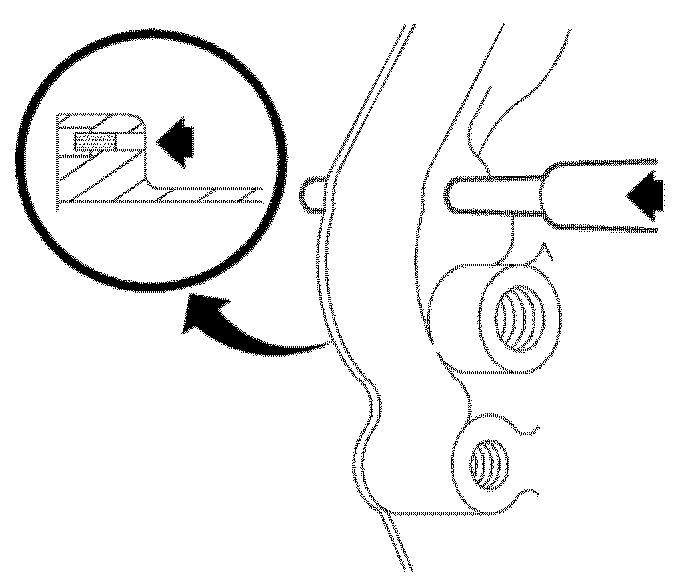

4. Remove the transaxle vent filter from the case using a punch. Drive the vent from the outside to the inside.
