Differential Case Disassemble

Differential Case Disassemble
^ Tools Required
- 87-92-210 Differential Bearing Support
- SA9120T Differential Bearing Installer
- SA9172G Ball Detent Handle
- SA921 1 T-2 5th Gear Puller
- SA921 1 T2-4 Thread On Adapter





1. Mount the differential in a vise with soft jaws.

Notice: The SA9211T-4 thread on adapter must be used on the SA9211T-2 5th gear puller when removing the differential bearings. If the adapter is not used, the puller can be damaged.

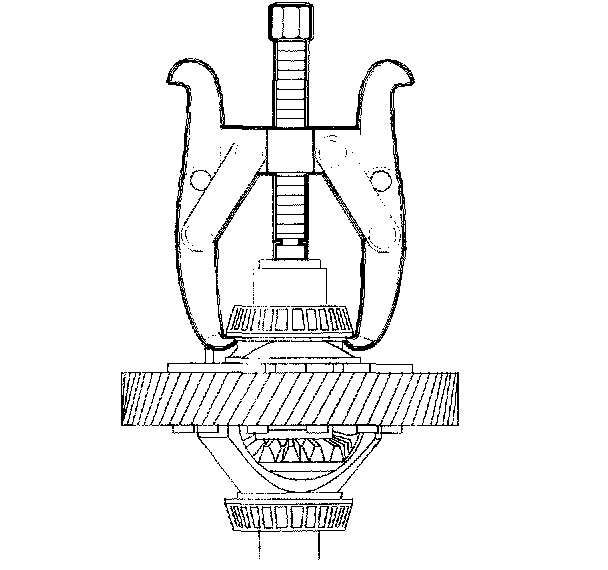

2. Remove the differential bearings using the SA9211T-2 with the SA9211T2-4. Use the 87-92-210 as a base for the puller as shown.
