Clutch Housing Assemble

Clutch Housing Assemble
^ Tools Required
- 83-90-114 Sleeve
- 83-90-312 Drift, Bearing Race Input Shaft
- 87-91-220 Drift, Main Shift Rod Bushing
- 87-91-311 Sleeve, Bearing Driver Shaft
- 87-92-210 Support, Differential Bearing
- 87-92-236 Support
- SA91113T Axle Seal Installer
- SA9172G Ball Detent Handle

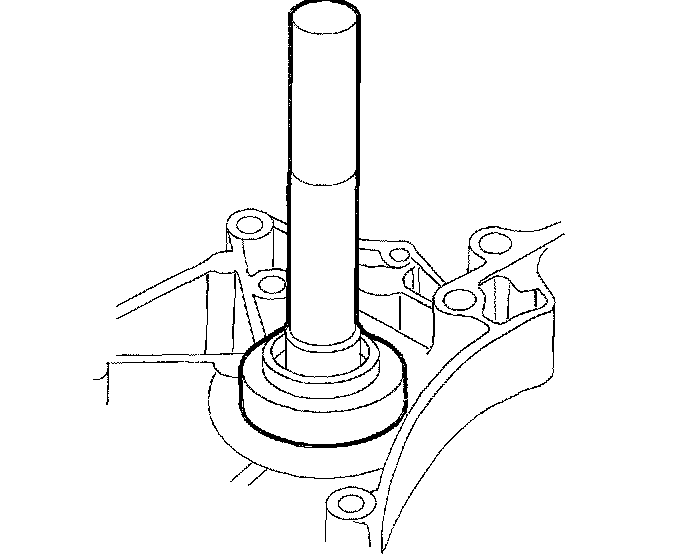

1. Press in the new differential bearing race using the SA9113Tand the SA9172G. Use the 87-92-236 as a base for the pressing operation.

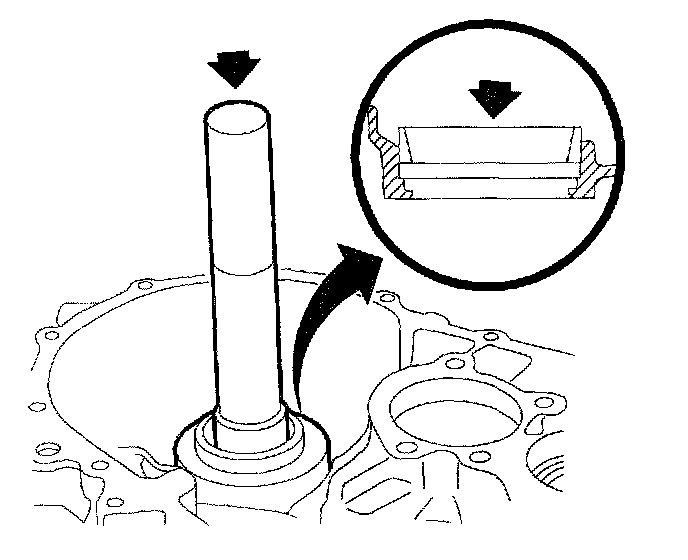

2. Install the new axle using the SA9113T and SA9172G.

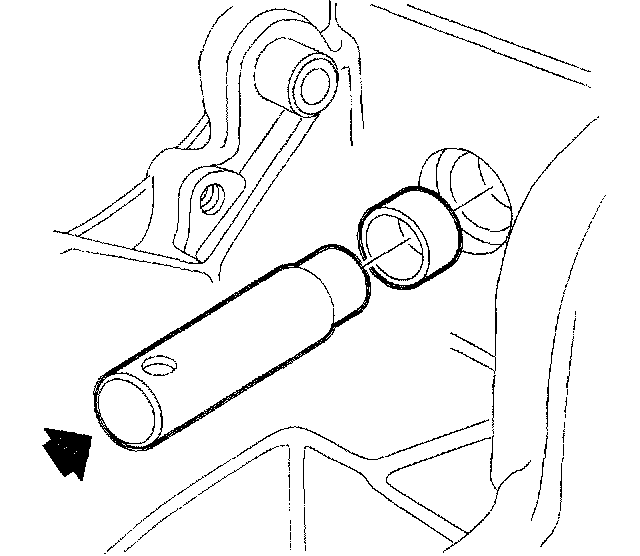

3. Install the shift control shaft bushing until flush with the inside of the case using the 87-91-220.

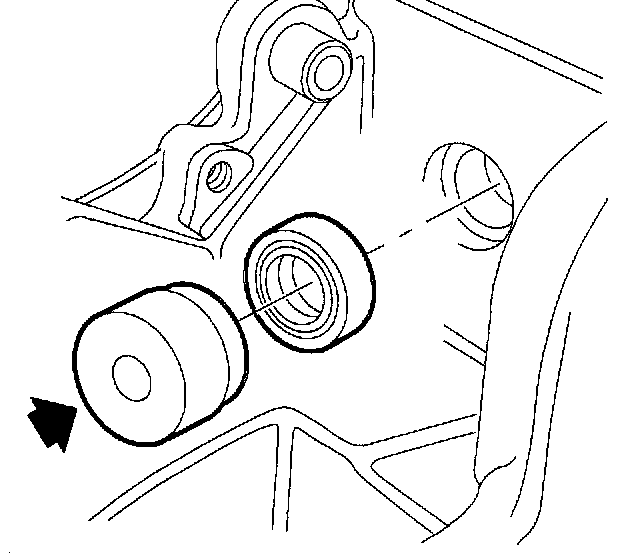

4. Fill the shift control shaft seal lips with grease and drive into the clutch housing using the 87-92-210 and a hammer. The spring side of the seal should face in.

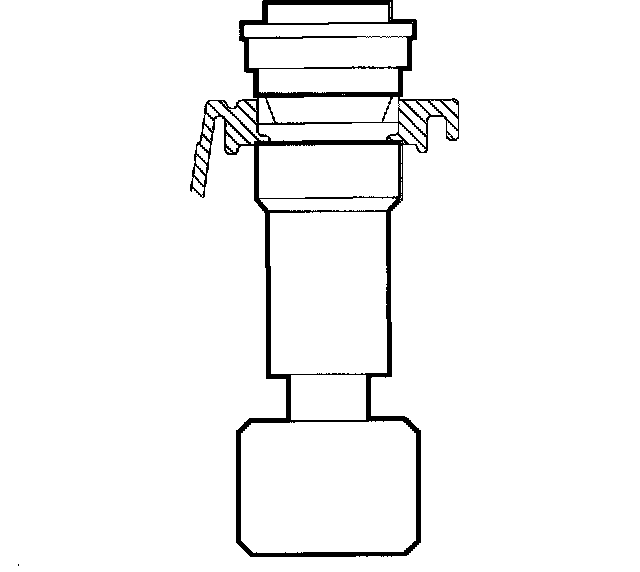

5. Press in the new input shaft bearing race using the 83-90-312. Use the 83-90-114 and the 87-91-311 as a base for the pressing operation.
