Hydraulic Hose: Service and Repair

Hydraulic Clutch Hose/Pipe Replacement

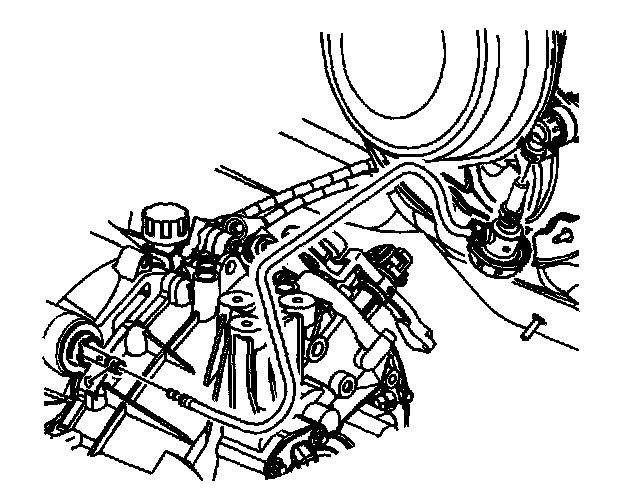

Removal Procedure





1. Disconnect the clutch line at the clutch actuator cylinder and drain the fluid into a suitable container.

Notice: Refer to Brake Fluid Effects on Paint and Electrical Components Notice in Service Precautions.

2. Place a shop towel under the clutch master cylinder in order to catch any additional fluid loss.
3. Disconnect the clutch line from the clutch master cylinder.
4. Remove the clutch line from the vehicle.

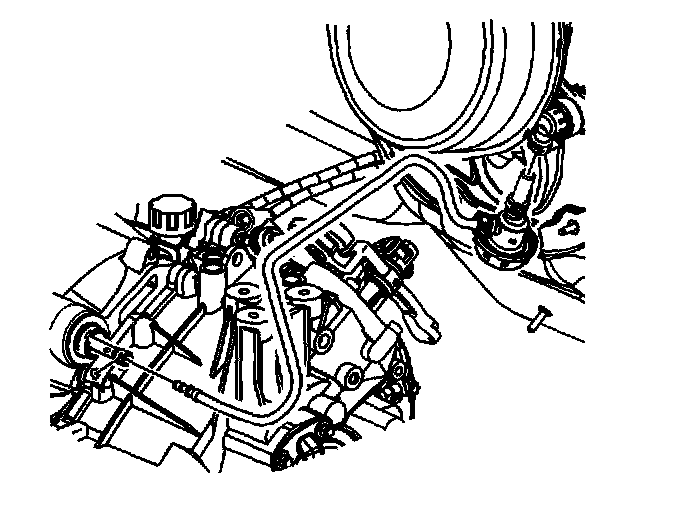

Installation Procedure





Important: Ensure that the clutch line locks securely in place.

1. Connect the clutch line to the clutch master cylinder.
2. Connect the clutch line to the clutch actuator cylinder.
3. Remove the shop towel and discard in a suitable container.
4. Fill the brake/clutch reservoir with DOT 3 hydraulic fluid to the proper fluid level.
5. Bleed the clutch hydraulic system.
