Shock Absorber - Replacement
Shock Absorber ReplacementRemoval Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting

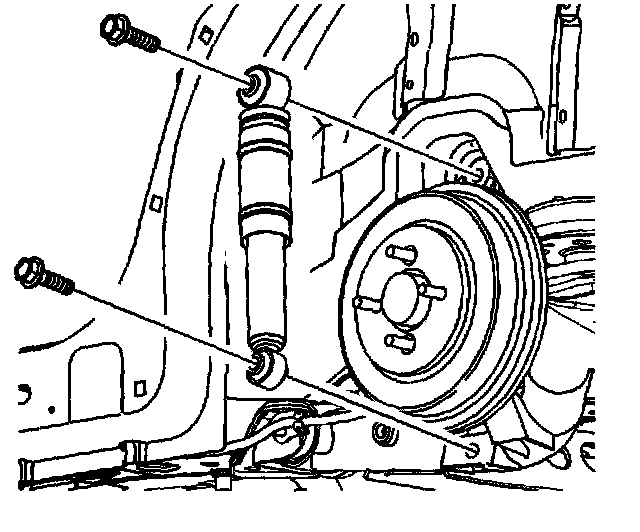

2. Remove the wheel.

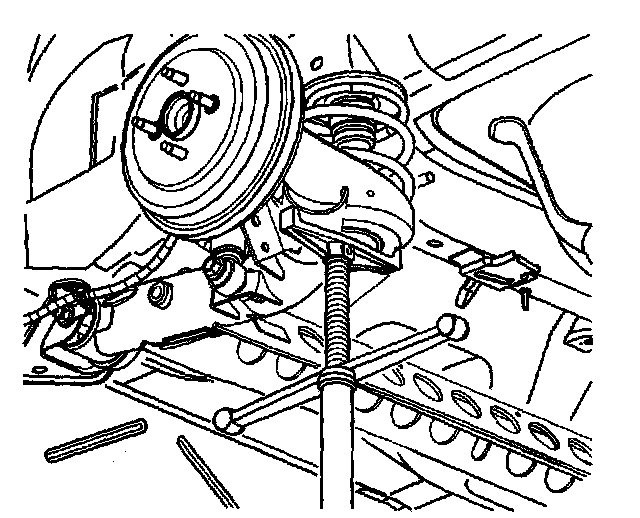

3. Support the rear axle with a tall jack stand near the shock absorber.
4. Remove the upper and lower shock bolts.
5. Remove the shock from the vehicle.
Installation Procedure

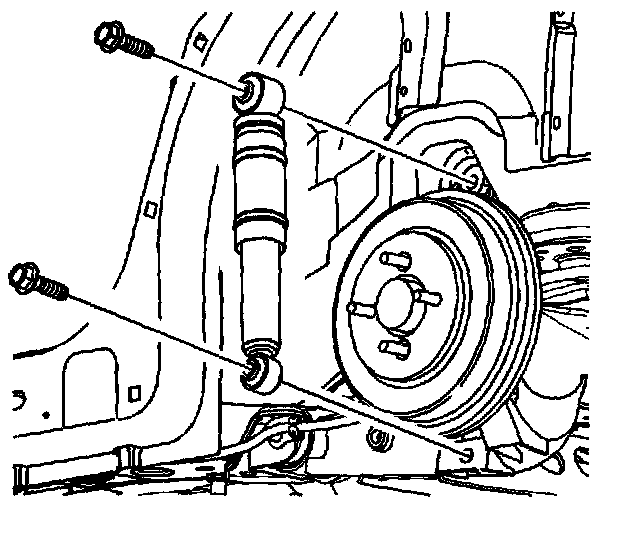

1. Position the shock absorber to the vehicle.
Notice: Refer to Fastener Notice in Service Precautions
2. Install NEW upper and lower shock bolts.
- Tighten the upper bolt to 90 Nm (66 ft. lbs.).
- Tighten the lower bolt to 110 Nm (81 ft. lbs.).
3. Remove the jack stand.
4. Install the wheel.
5. Lower the vehicle.
