Charging System Test

CHARGING SYSTEM TEST

TOOLS REQUIRED
SA9154Z-A Starting and Charging System Tester

TEST

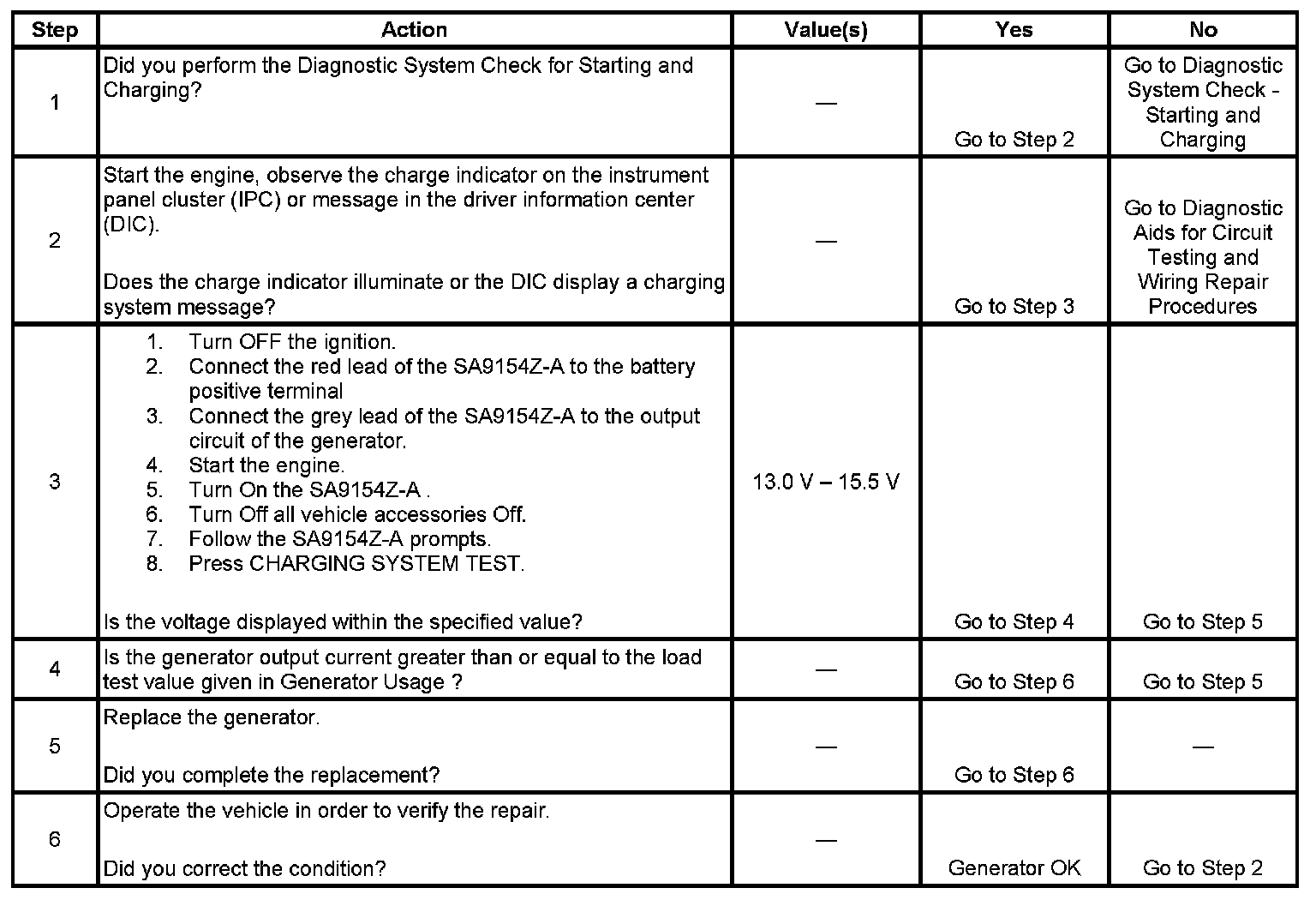

Steps 1-6:
