Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C491 - C860 >> C507 (Without AU3)

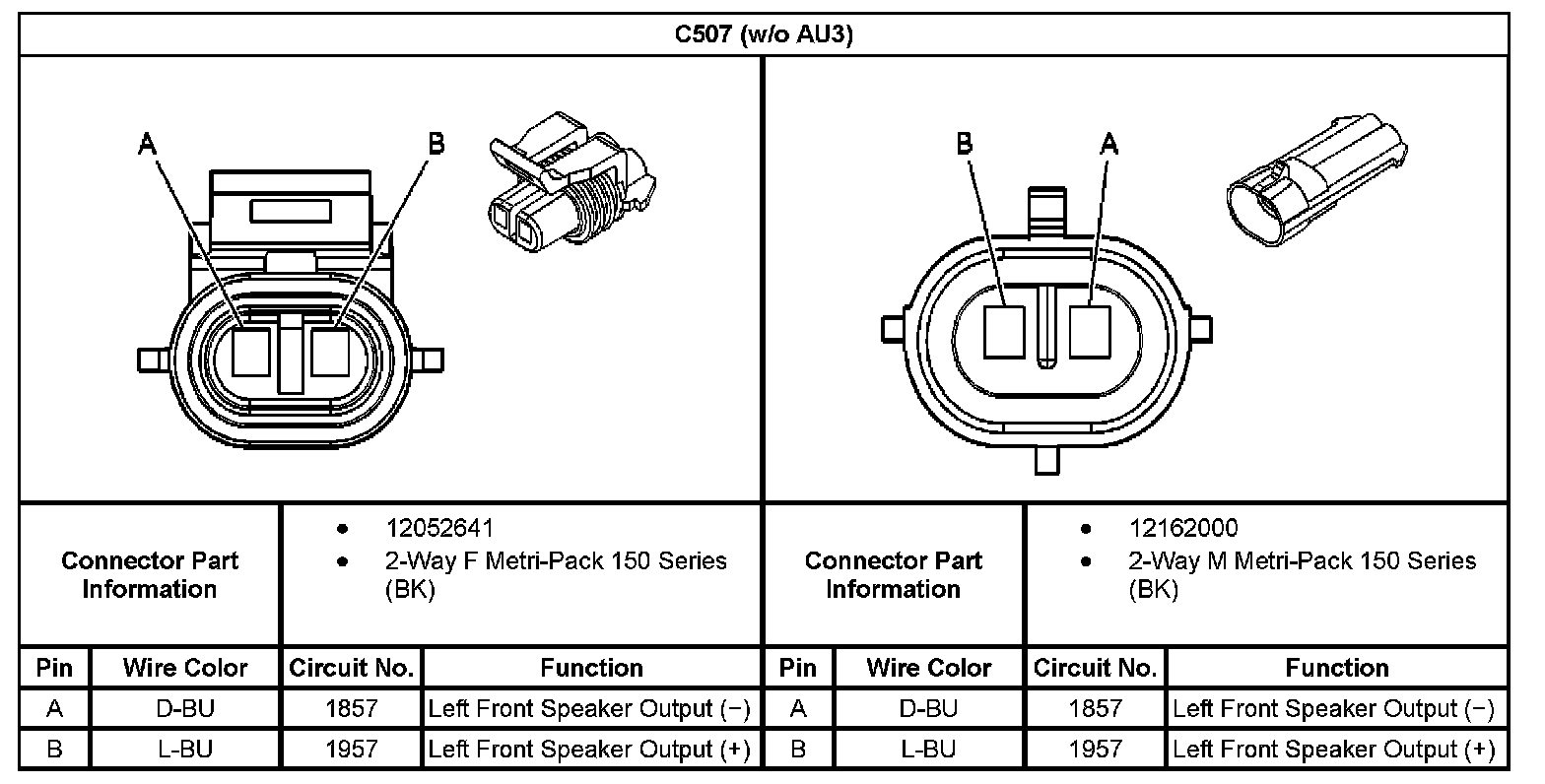

C507 (Without AU3)

C507 (Without AU3):
