Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C216 - C490 >> C406 (Rear WSS)

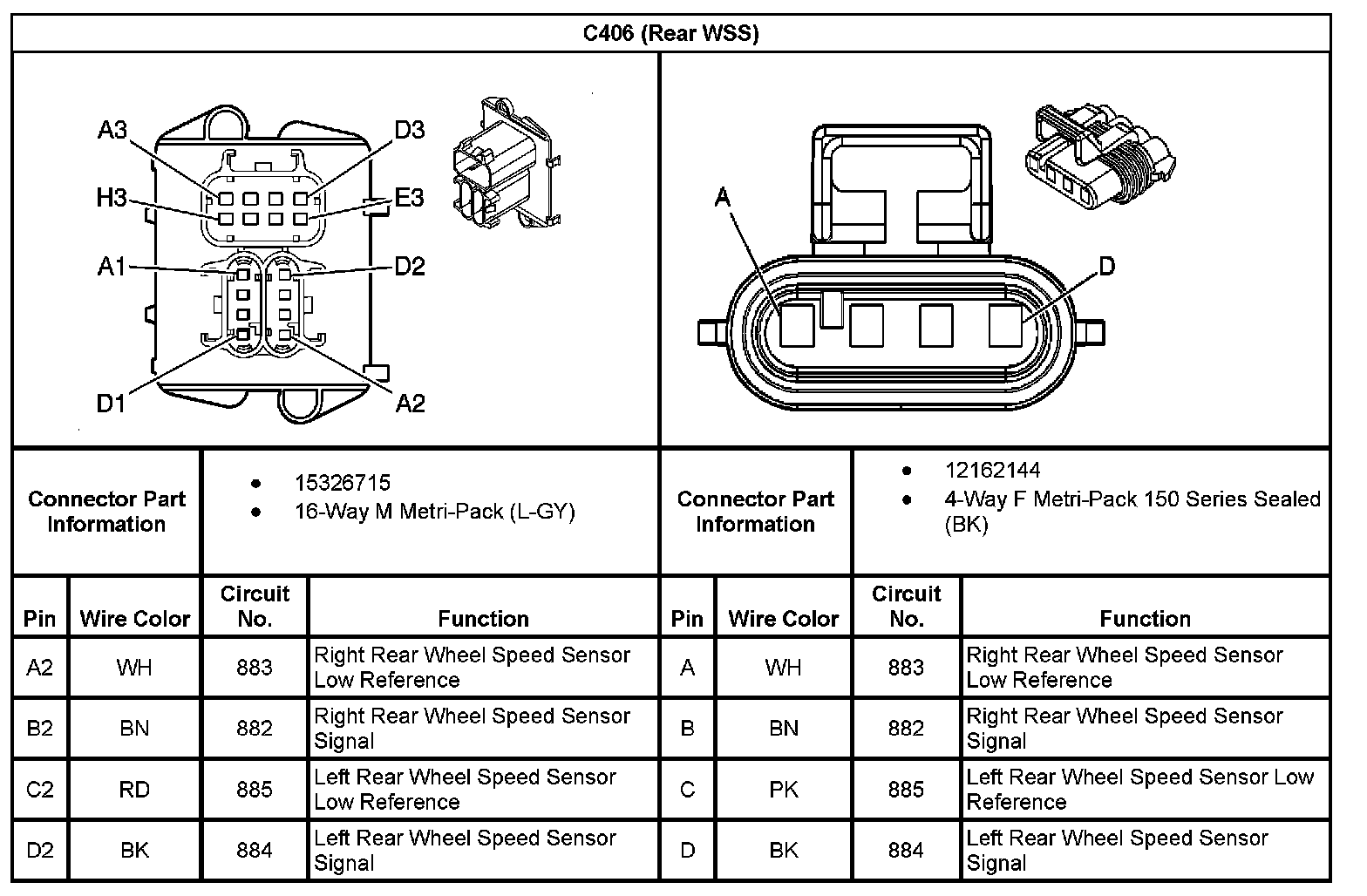

C406 (Rear WSS)

C406 (Rear WSS):
