Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T

Clutch, M/T

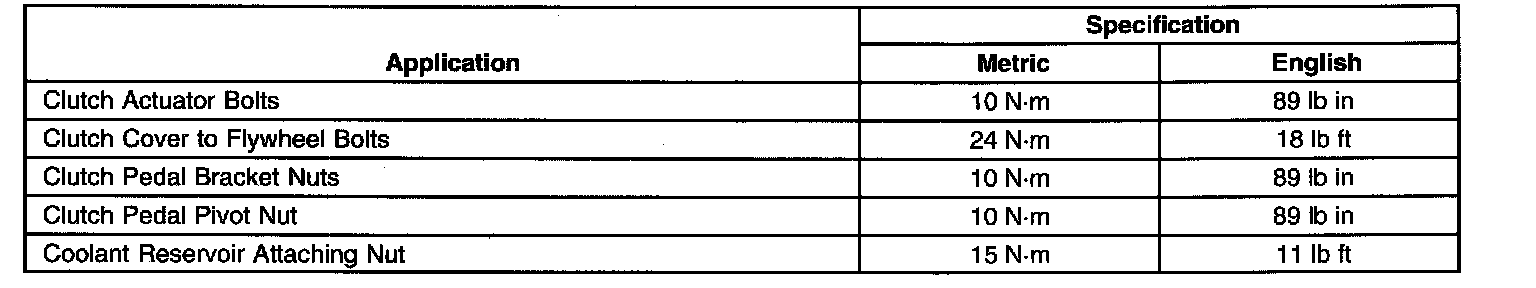

Fastener Tightening Specifications




Torque Specification




Torque Sequence
