Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Locations

Power Window Switch: Locations

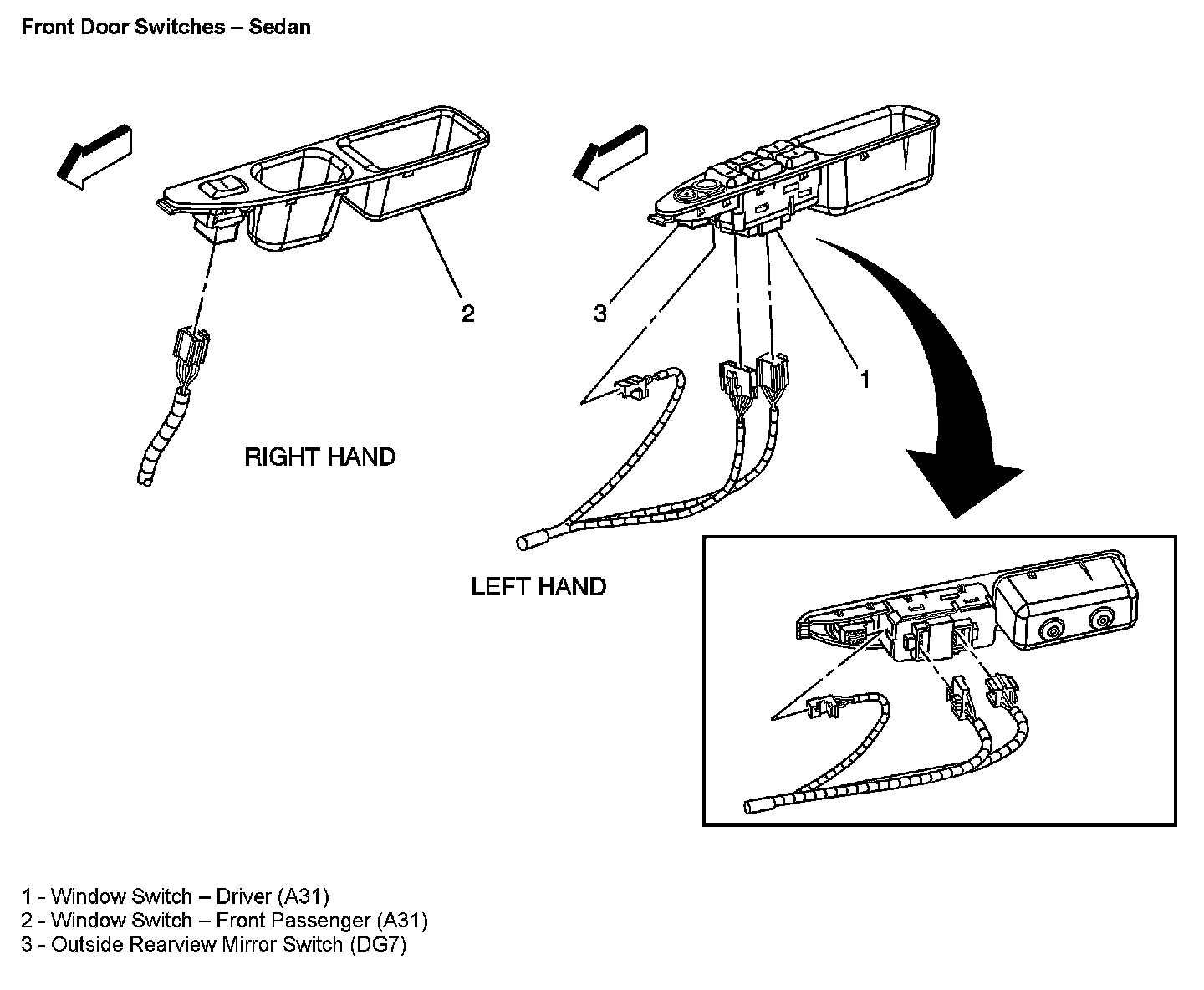

Front Door Switches - Sedan:

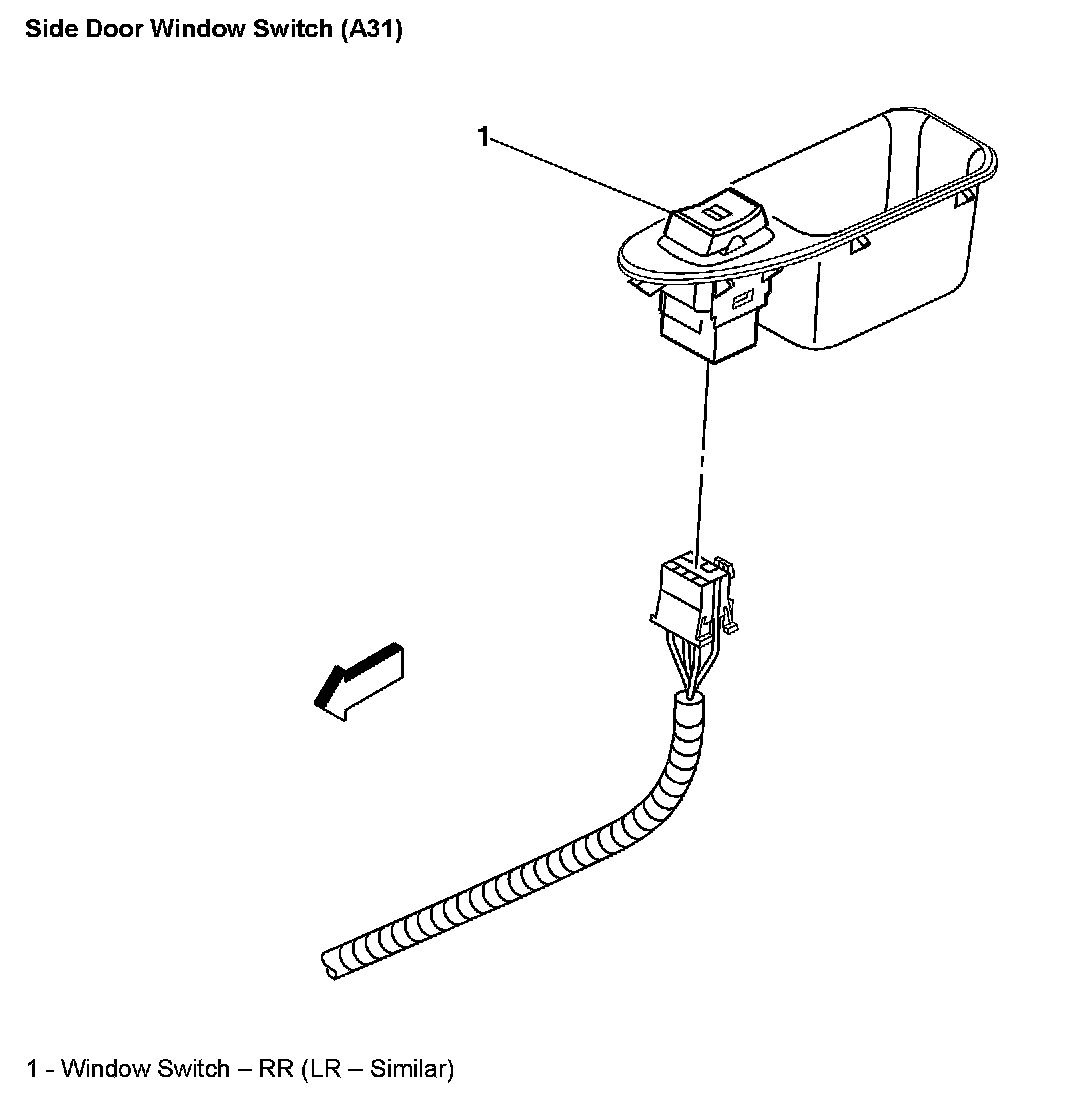

Side Door Window Switch (With RPO Code A31):

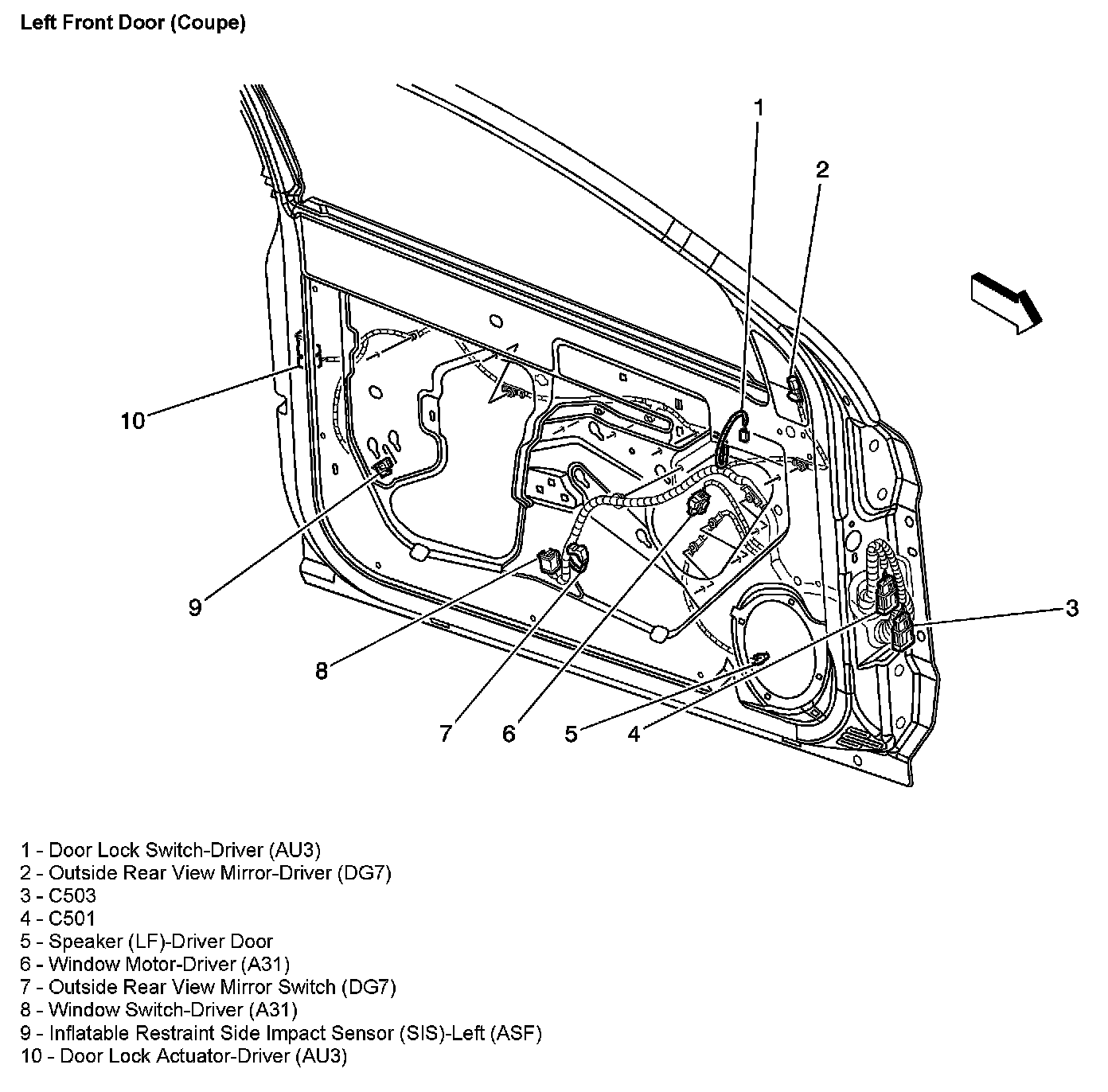

Left Front Door (Coupe):
