Home
>>
Saturn
>>
2004
>>
ION L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Restraints and Safety Systems
>>
Impact Sensor
>>
Diagrams
Impact Sensor: Diagrams

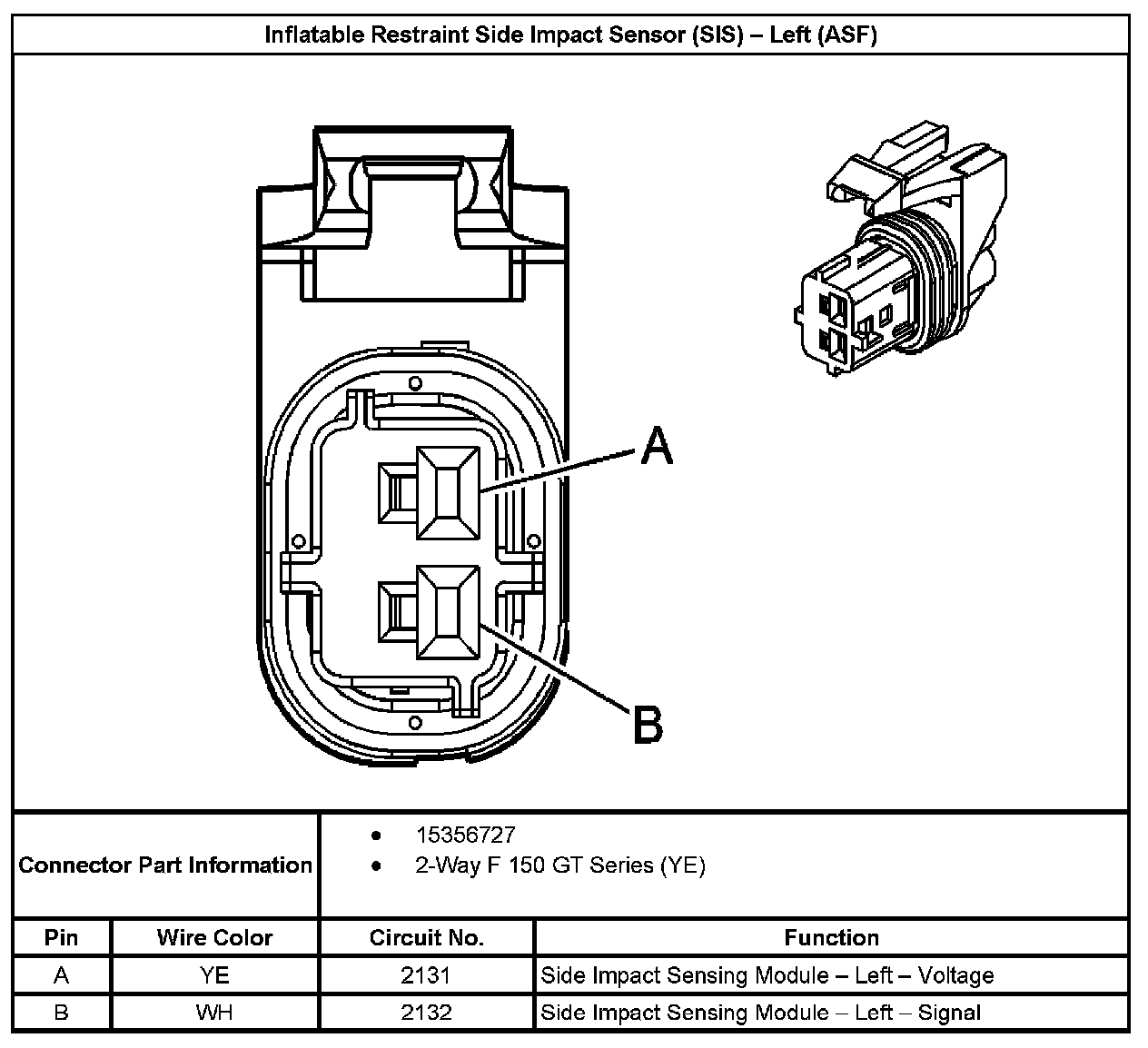

Inflatable Restraint Side Impact Sensor (SIS)-Left (With RPO Code ASF):

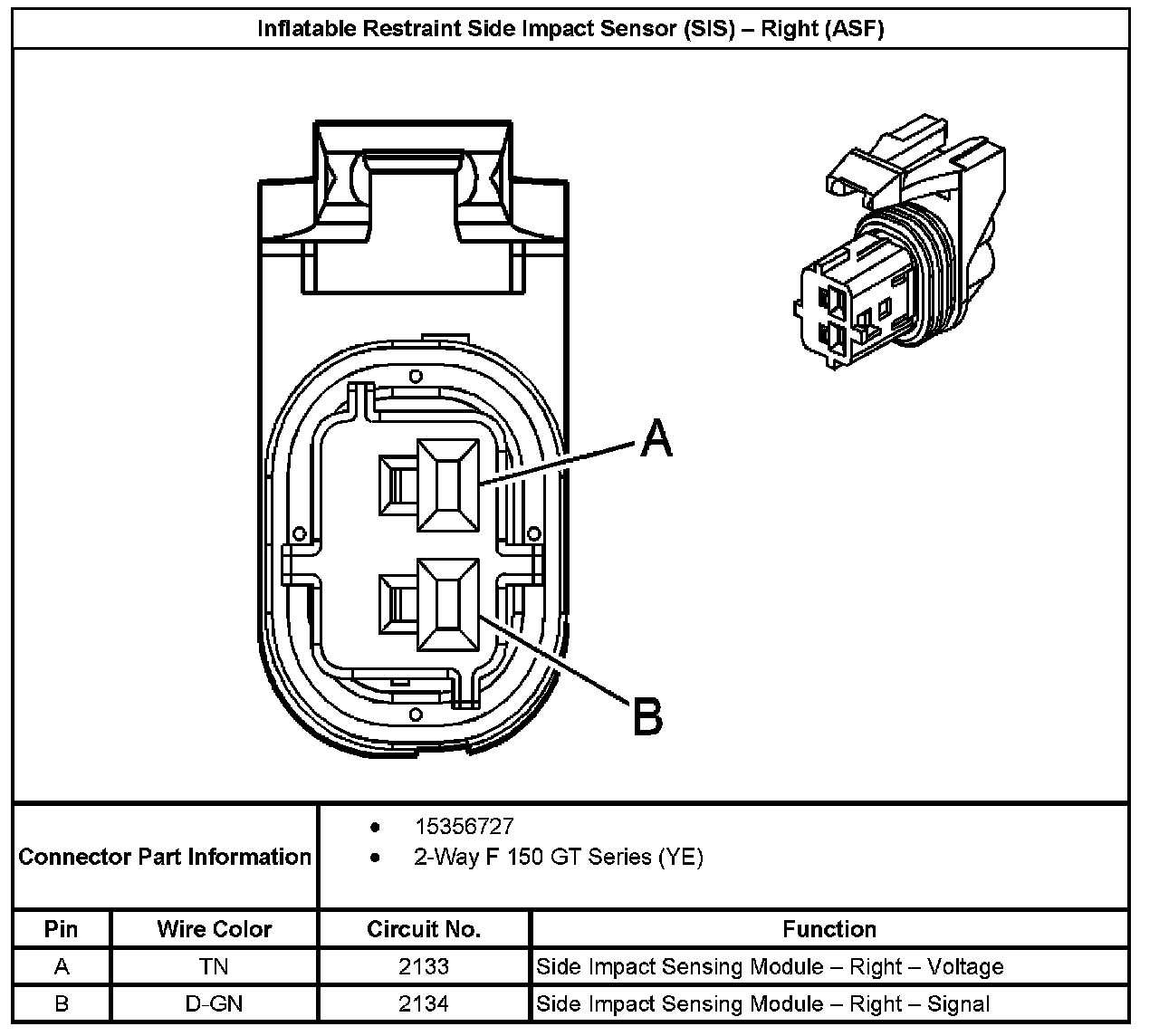

Inflatable Restraint Side Impact Sensor (SIS)-Right (With RPO Code ASF):
