Outside Temperature Display Sensor: Service and Repair

AMBIENT AIR TEMPERATURE SENSOR REPLACEMENT (COUPE)

REMOVAL PROCEDURE
1. Open the hood.

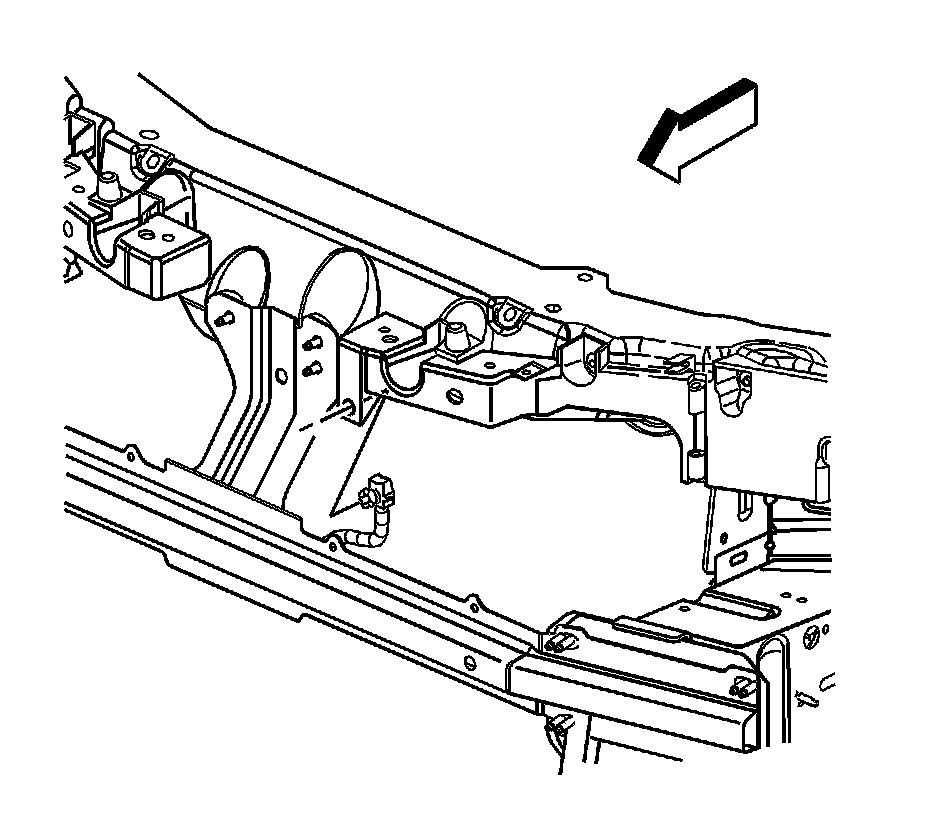

2. Release the ambient air temperature sensor from the headlamp bracket.
3. Disconnect the electrical connector from the ambient air temperature sensor.
4. Remove the sensor from the vehicle.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the ambient air temperature sensor.
2. Push the ambient air temperature sensor through the hole in the headlamp bracket until the sensor is seated.
3. Close the hood.
