Seat Belt Pretensioner (Coupe)

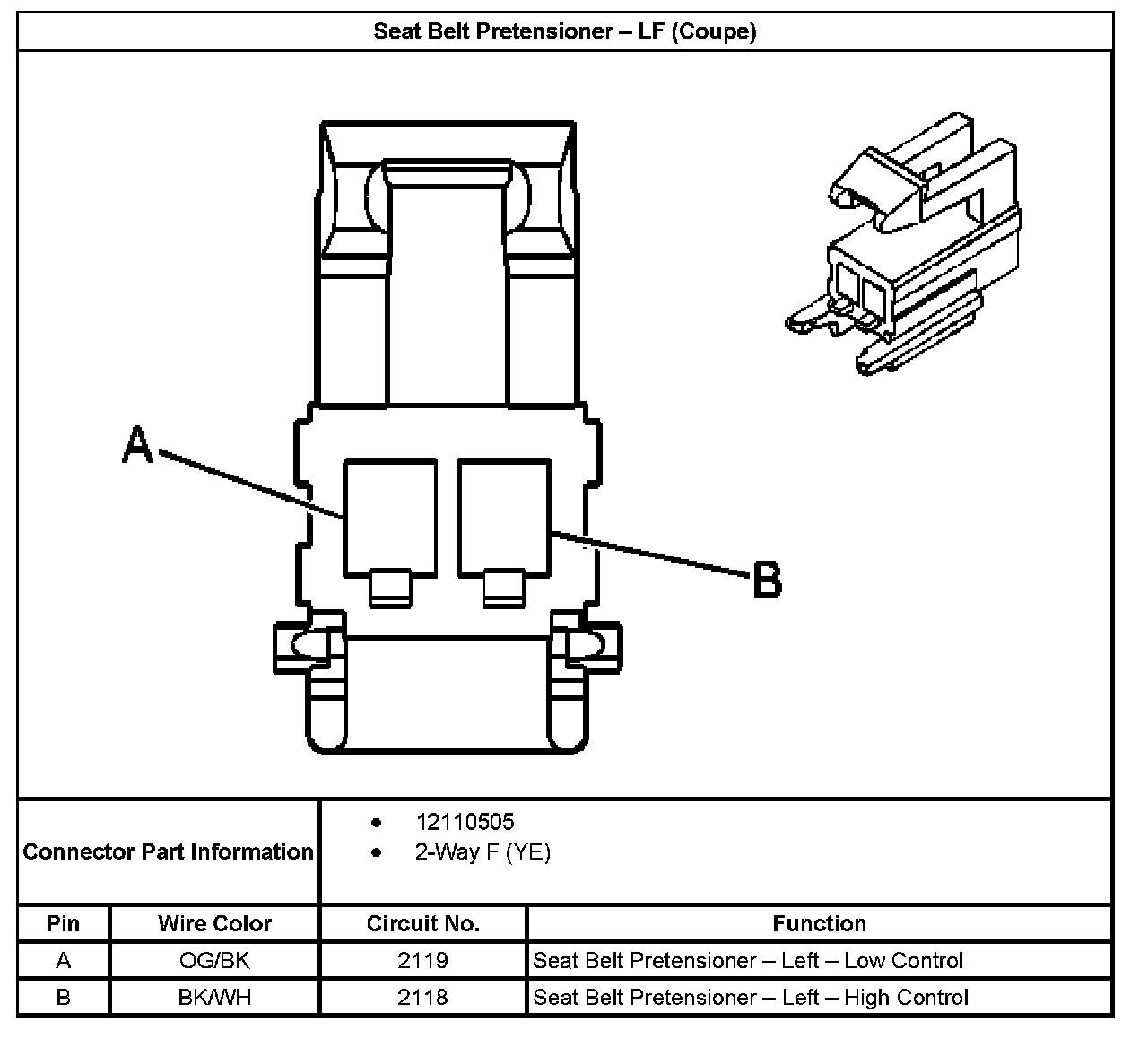

Seat Belt Pretensioner-LF (Couple):

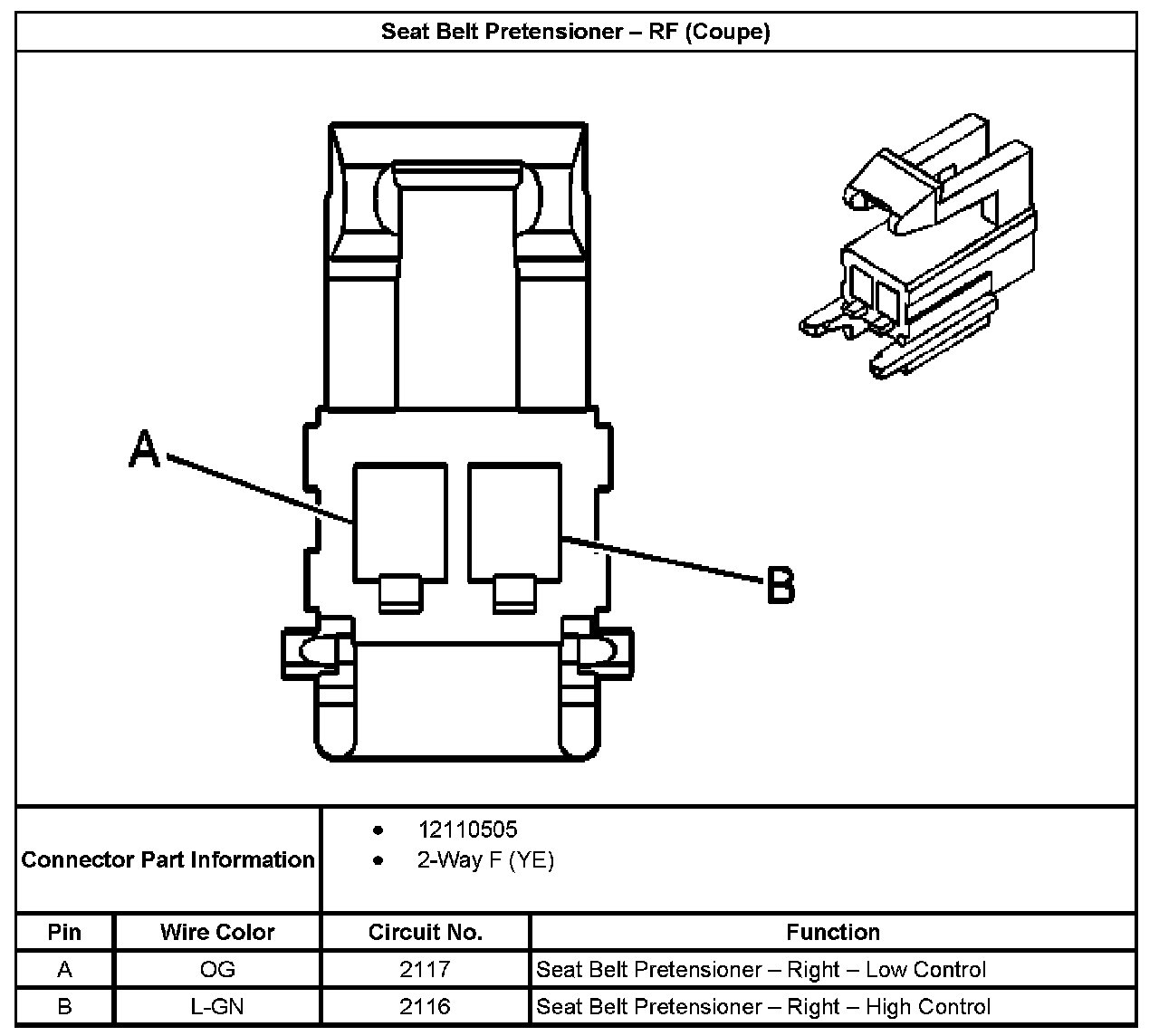

Seat Belt Pretensioner-RF (Couple):
