Seat Belt Height Adjuster Replacement - Front

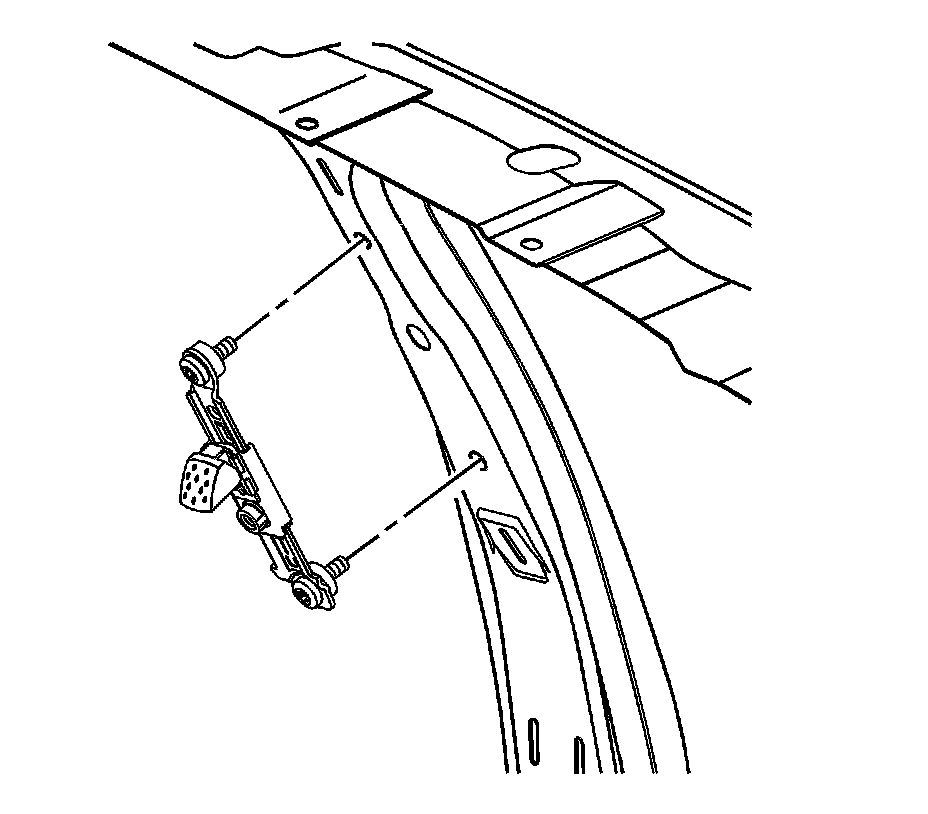

SEAT BELT HEIGHT ADJUSTER REPLACEMENT - FRONTREMOVAL PROCEDURE
1. Remove the center pillar upper trim panel.
2. Remove the height adjuster bolts.
3. Remove the height adjuster from the vehicle.
INSTALLATION PROCEDURE
1. Install the height adjuster to the vehicle.
2. Install the height adjuster bolts to the front seat belt.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the bolts to 45 N.m (33 lb ft).
3. Install the center pillar upper trim panel.
