Child Restraint Tether Anchor Replacement

CHILD RESTRAINT TETHER ANCHOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the rear window trim.

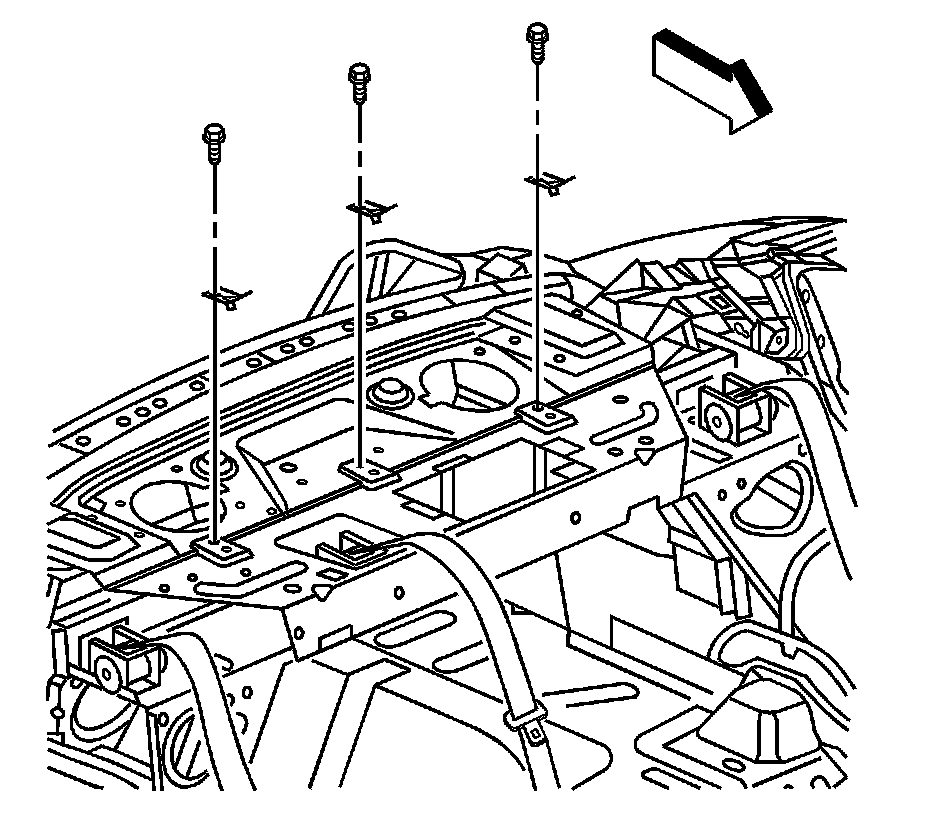

2. Remove the bolt from the child tether anchor.
3. Remove the child tether anchor from the rear shelf.

INSTALLATION PROCEDURE




1. Position the child tether anchor tab to the alignment hole in the rear shelf.
2. Install the child tether anchor bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolt to 25 N.m (18 lb ft).

3. Install the rear window trim.
4. Close the anchor bezel, pressing into place until fully seated.
