Clockspring Assembly / Spiral Cable: Diagrams

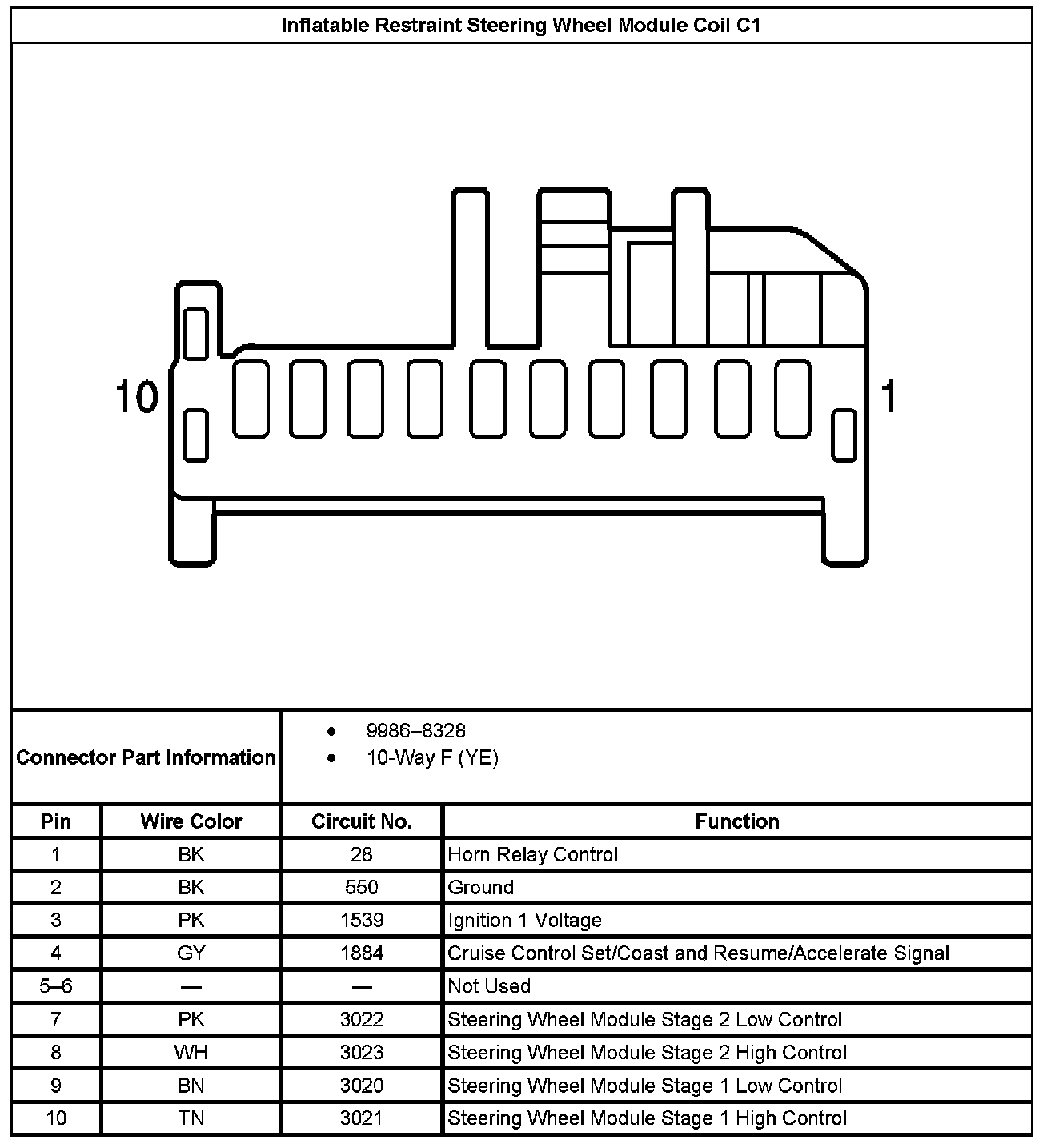

Inflatable Restraint Steering Wheel Module Coil C1:

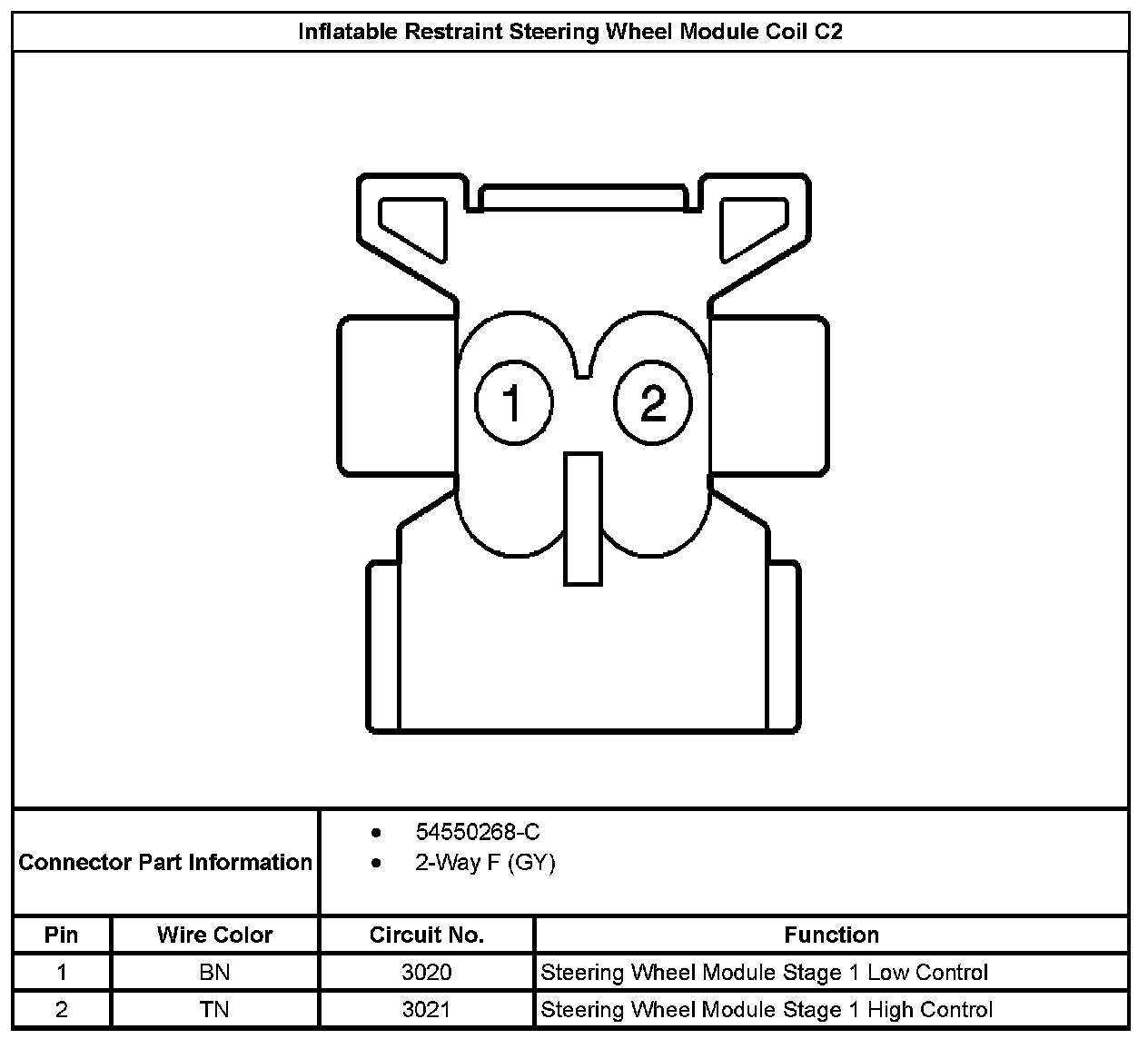

Inflatable Restraint Steering Wheel Module Coil C2:

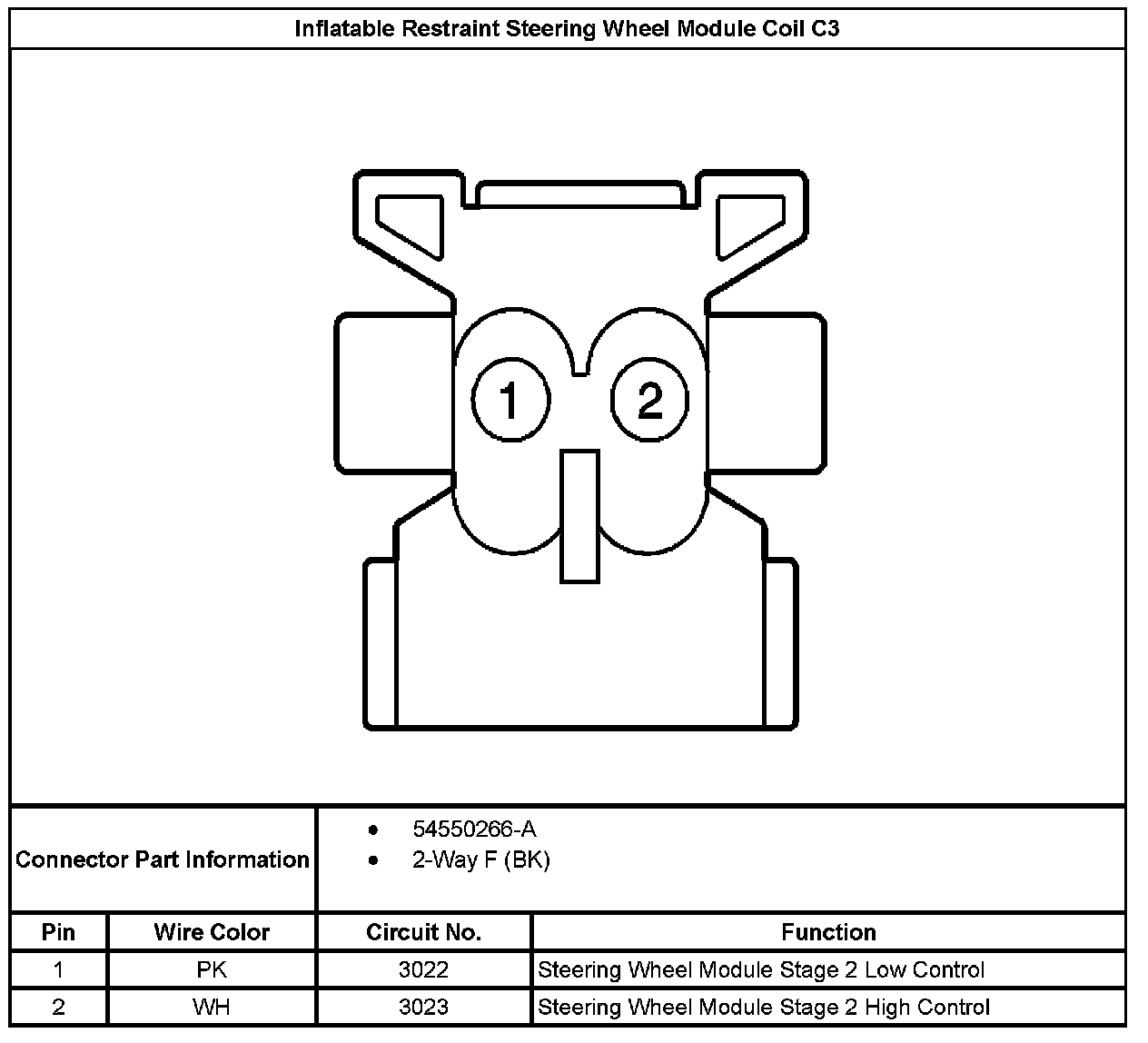

Inflatable Restraint Steering Wheel Module Coil C3:

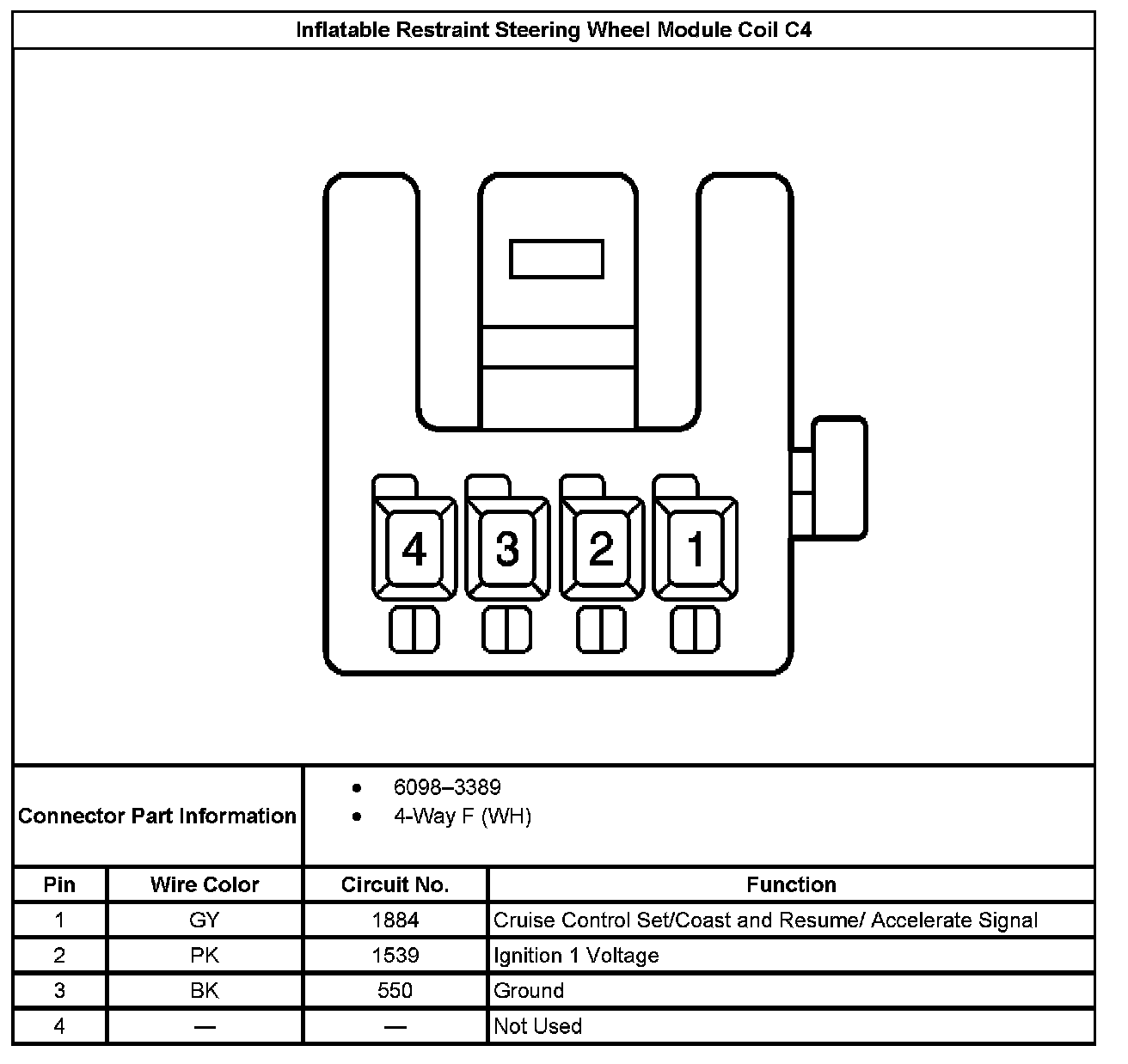

Inflatable Restraint Steering Wheel Module Coil C4:

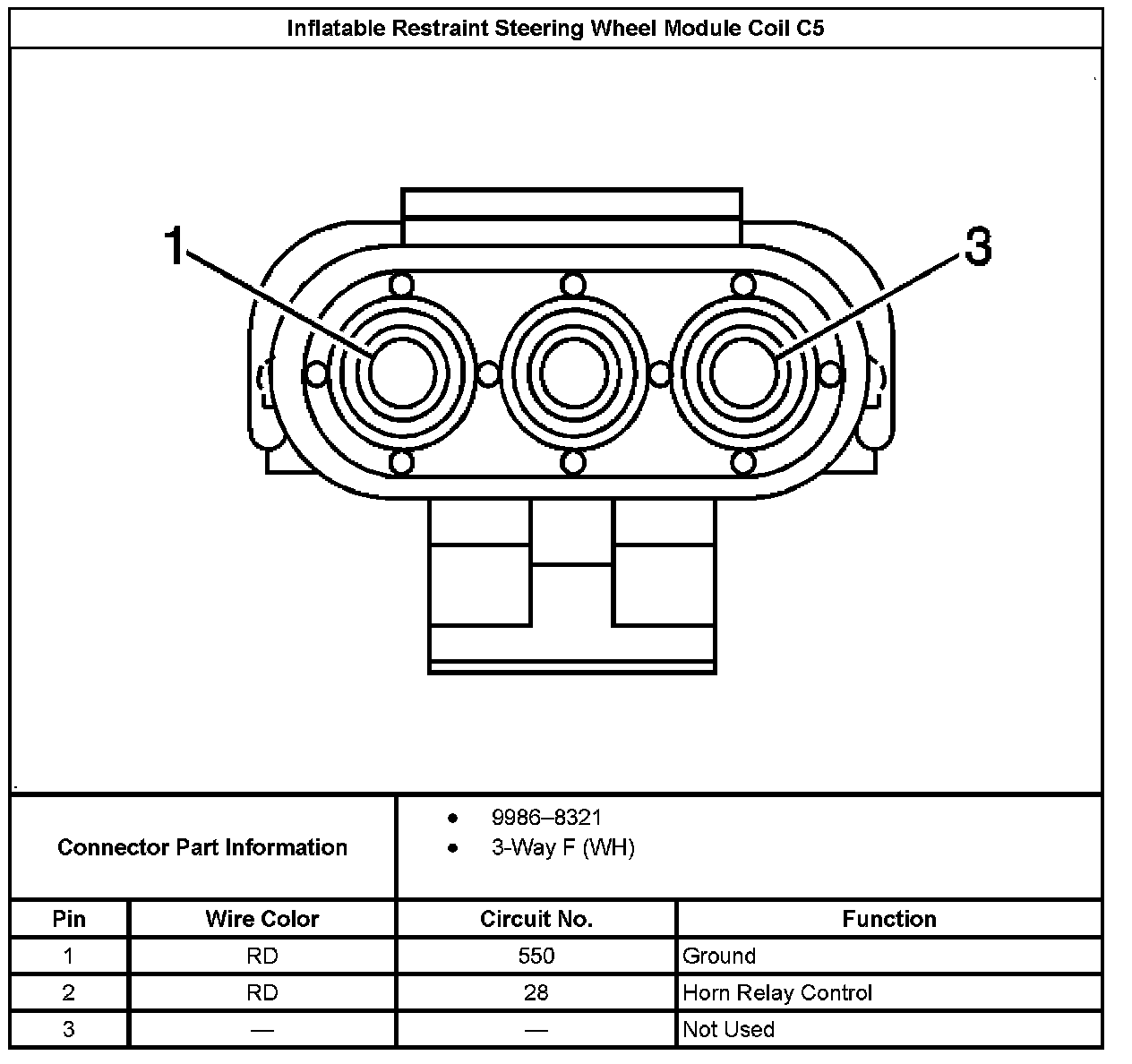

Inflatable Restraint Steering Wheel Module Coil C5:
