Instrument Panel Module Replacement

INFLATABLE RESTRAINT INSTRUMENT PANEL MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 5.

CAUTION
- Refer to SIR Inflator Module Handling and Storage Caution in Service Precautions.
- A deployed dual stage inflator module will look the same whether one or both stages were used. Always assume a deployed dual stage inflator module has an active stage 2. Improper handling or servicing can activate the inflator module and cause personal injury.
- Refer to SIR Caution in Service Precautions.

2. Remove the right instrument panel (I/P) trim panel.

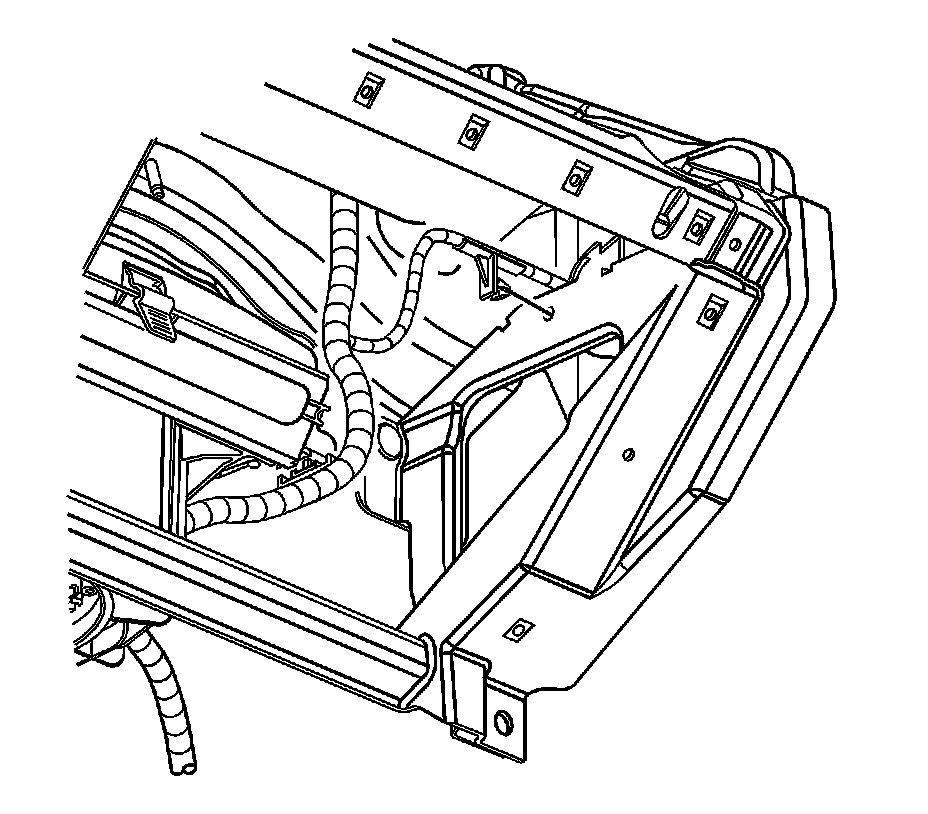

3. Remove the I/P inflatable restraint wire rosebud from the I/P retainer bracket.

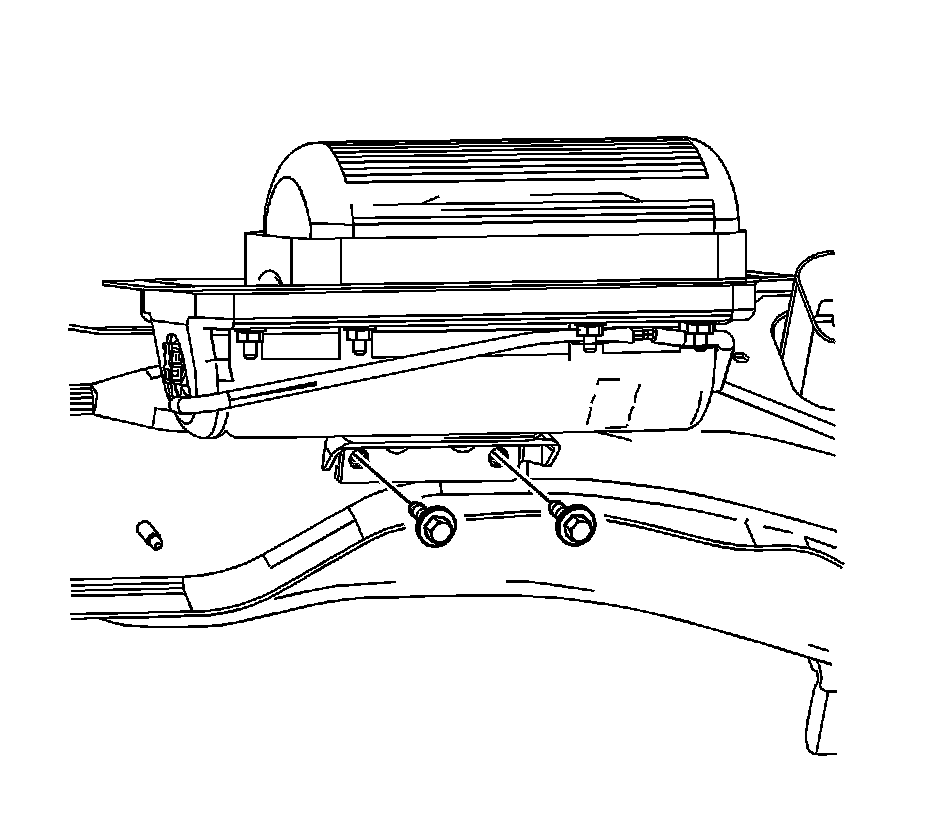

4. Remove the I/P inflatable restraint module bolts.

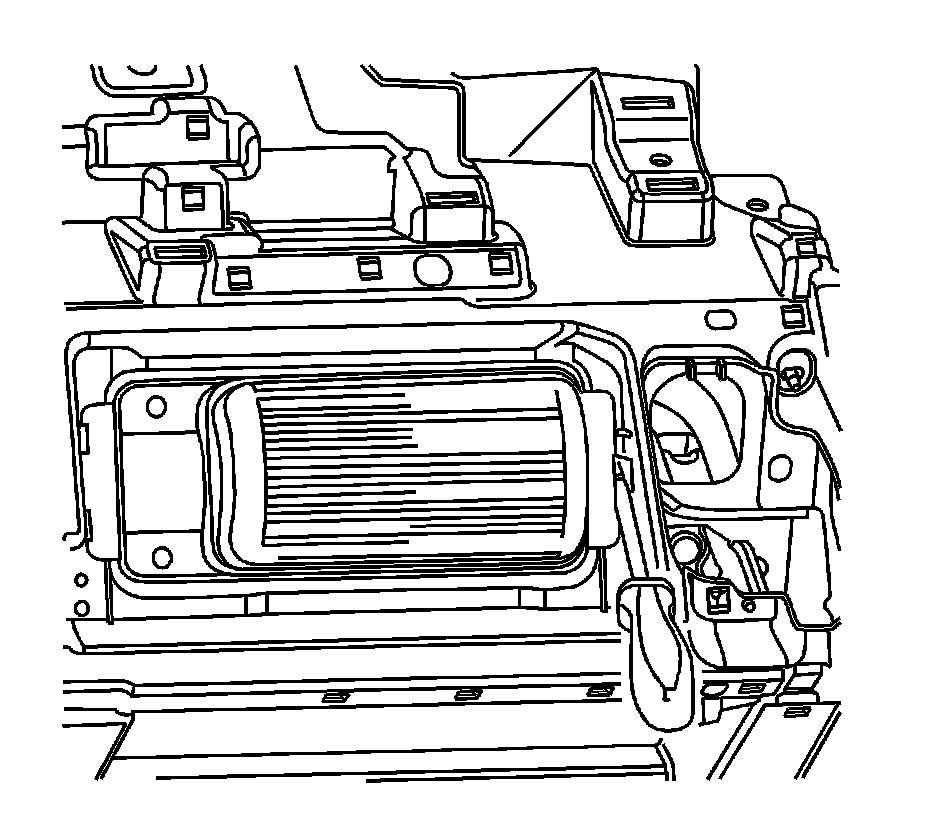

5. Pull the I/P inflatable restraint module out of the I/P retainer while depressing one of the retaining tabs on the I/P retainer with a flat-bladed tool.

INSTALLATION PROCEDURE




1. Install the I/P inflatable restraint module into the I/P retainer.
2. Install the I/P inflatable restraint module bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the I/P inflatable restraint module bolts to 10 N.m (88 lb in).




3. Install the I/P inflatable restraint module wire rosebud to the I/P retainer bracket.
4. Install the right I/P trim panel.
5. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 5.
6. After replacing the module, deploy the old module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping for proper disposal.
