Auxiliary Water Pump Hose Replacement - Outlet

Auxiliary Water Pump Hose Replacement - Outlet

^ Tools Required
- GE-47622 Hose Clamp Pliers

Removal Procedure
1. Drain the cooling system.

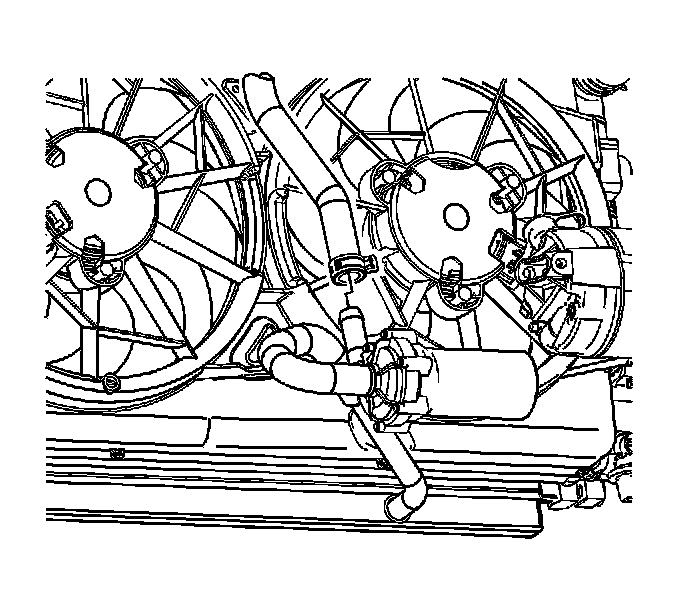

2. Using GE-47622, compress the clamp to the auxiliary water pump outlet hose at the charge air cooler pump.
3. Remove the outlet hose from the charge air cooler pump.
4. Lower the vehicle.

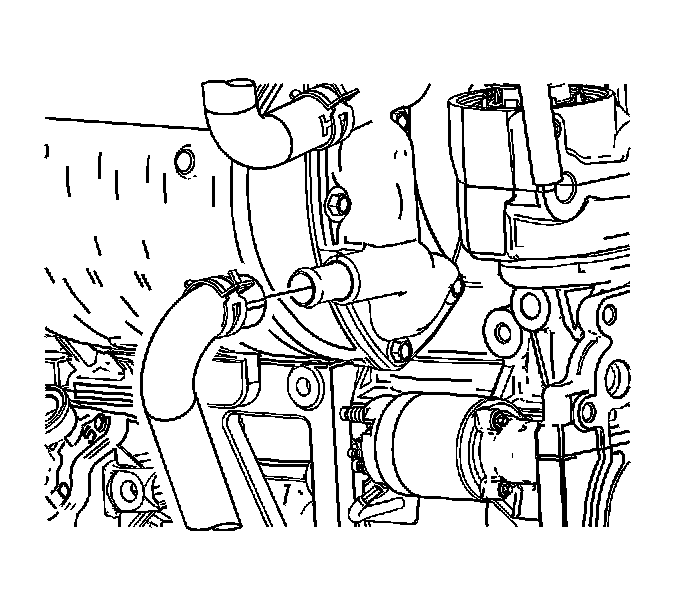

5. Using GE-47622, compress the clamp at the auxiliary water pump outlet hose at the intercooler.
6. Remove the outlet hose from the charge air cooler radiator.

Installation Procedure





1. Using GE-47622, compress the clamp to the auxiliary water pump outlet hose to secure the hose.
2. Install the outlet hose to the intercooler.





3. Using GE-47622, compress the clamp to the auxiliary water pump outlet hose to secure the hose.
4. Install the outlet hose to the charge air cooler pump.
5. Lower the vehicle.
6. Fill the cooling system.
