Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> Tail/Turn Signal Lamp

Tail/Turn Signal Lamp

Tail/Turn Signal Lamp - Left:

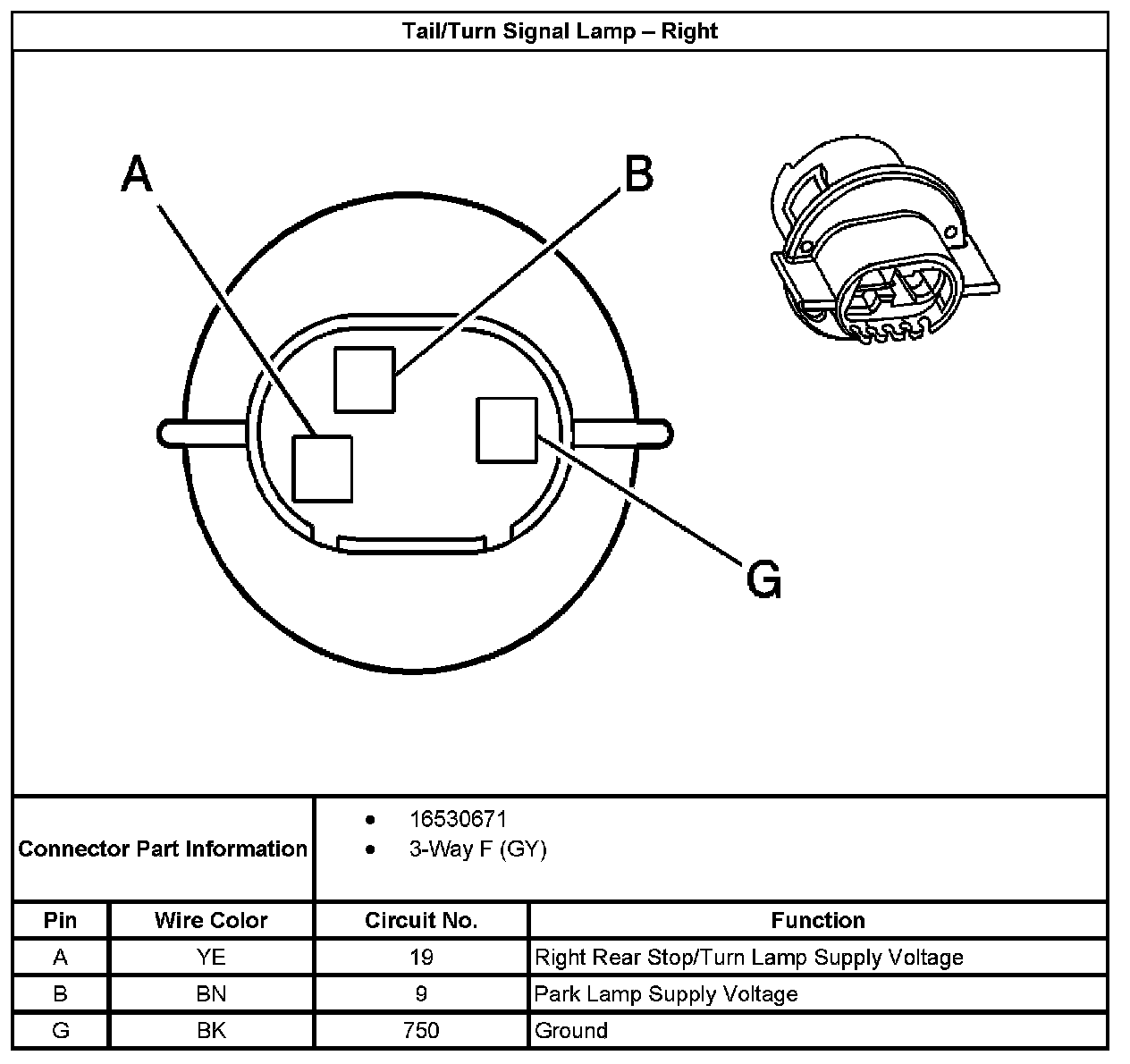

Tail/Turn Signal Lamp - Right:
