Instrument Panel Cluster (IPC) - Replacement
INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENTREMOVAL PROCEDURE
1. Pull out on the accessory trim plate in order to release the retaining fasteners.
2. Disconnect the accessory trim plate electrical connector(s).
3. Remove the screw retaining the cluster trim plate to the center trim panel.
4. Lift up on the cluster trim plate to release the retaining fasteners.
5. Remove the cluster trim plate.

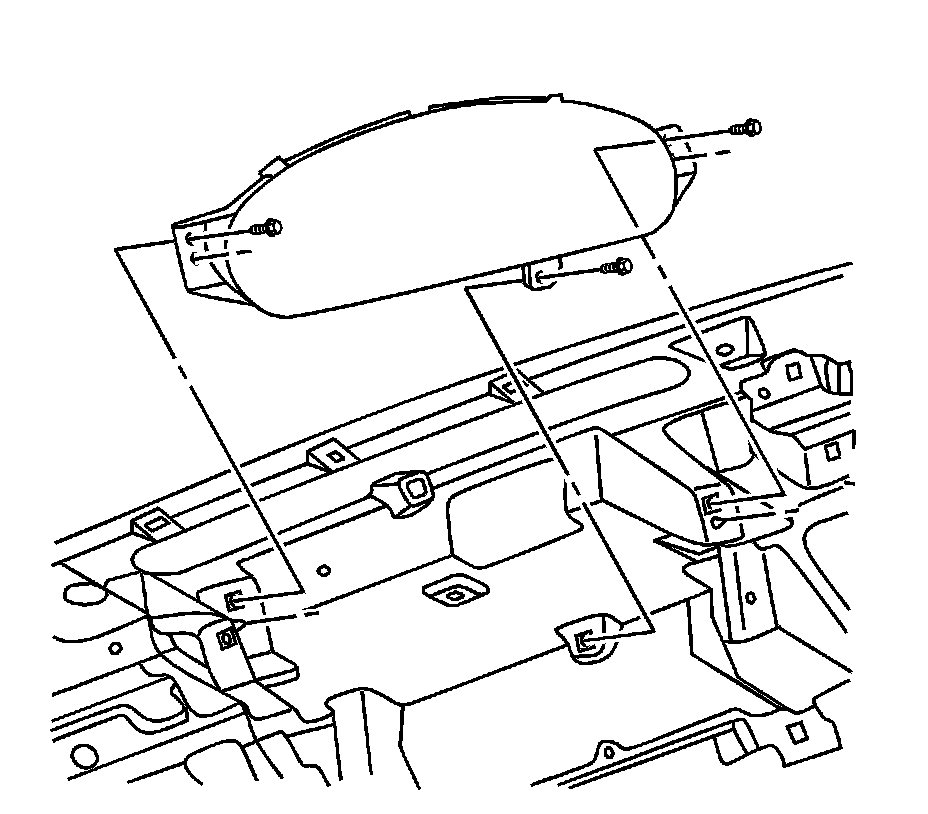

6. Remove the cluster screws

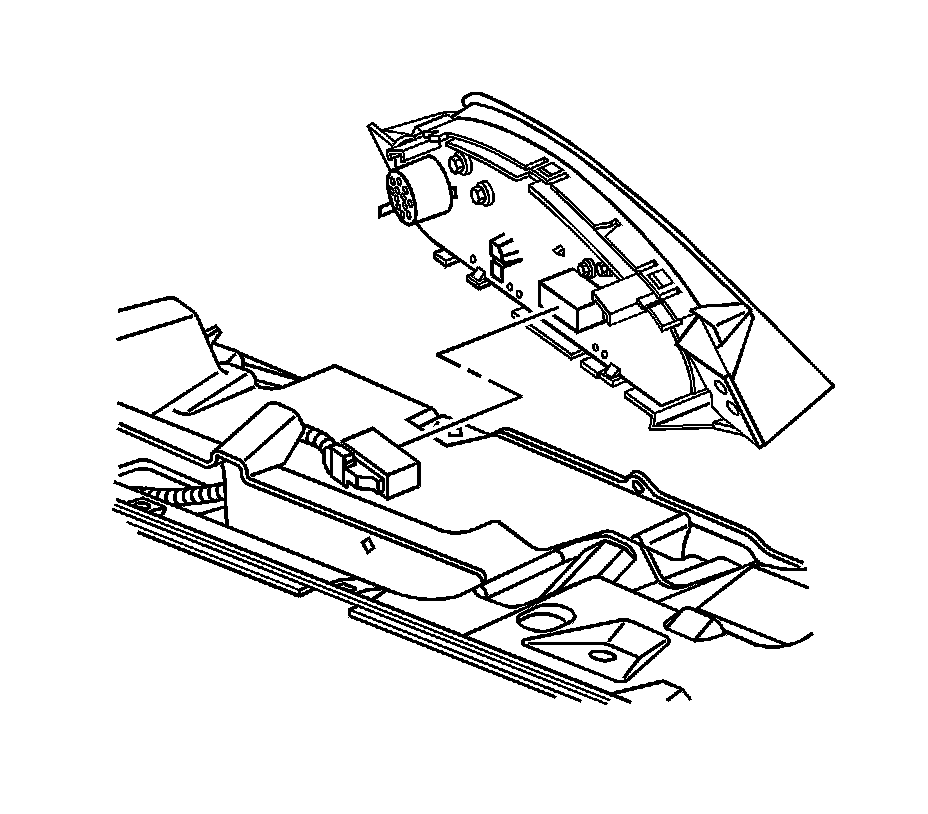

7. Pull the cluster out and disconnect the electrical connector.
8. Remove the cluster from the vehicle.
INSTALLATION PROCEDURE
1. Position the cluster in the vehicle and connect the cluster electrical connector.
2. Install the cluster screws
NOTE: Refer to Fastener Note in Service Precautions.
Tighten the cluster screws to 2.5 N.m (22 lb in).
3. Align the cluster trim plate retaining fasteners with the center trim panel.
4. Push on the outer edge of the cluster trim plate in order to secure the retaining fasteners.
5. Install the screw retaining the cluster trim plate to the center trim panel.
Tighten the cluster trim plate screw to 2.5 N.m (22 lb in).
6. Connect the accessory trim plate electrical connector(s).
7. Align the retaining fasteners with the I/P.
8. Push on the outer edge of the accessory trim plate in order to secure the retaining fasteners.
