Control Assembly: Description and Operation
AIR DELIVERYHVAC Control Assembly

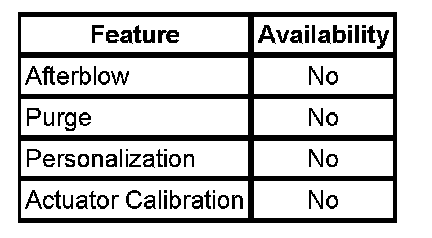

The HVAC control assembly is a non-class 2 device that interfaces between the operator and the HVAC system to maintain air temperature and distribution settings. The ignition 3 voltage circuits provide power to the control assembly. The temperature and mode doors are controlled by cables. The control assembly supports the features as in table.
AIR TEMPERATURE
HVAC Control Assembly

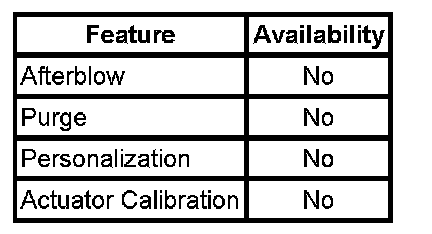

The HVAC control assembly is a non-Class 2 device that interfaces between the operator and the HVAC system to maintain air temperature and distribution settings. The battery positive and ignition 3 voltage circuits provide power to the assembly. The mode and temperature control doors are controlled by cables. The control assembly supports the features as in table.
