8. Crankshaft Damper Removal

Crankshaft Damper Removal

Tools Required
- J 38122-A Harmonic Balancer Holder






1. Install the J 38122-A.
2. Remove the damper retaining bolt and washer. Use the J 38122-A and a breaker bar in order to prevent the crankshaft from rotating when loosening the bolt.
Discard the bolt.

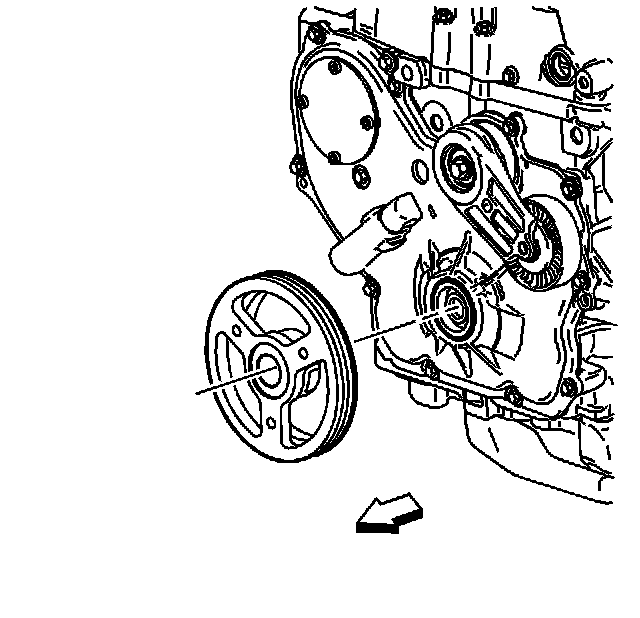

3. Remove the damper assembly.
