68. Supercharger Installation

Supercharger Installation






1. Install the supercharger gasket.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

2. Install the supercharger.
3. Install the supercharger bolts.

Tighten
Tighten the bolts to 25 Nm (18 lb ft).






4. Install the boost solenoid, bracket and hoses.

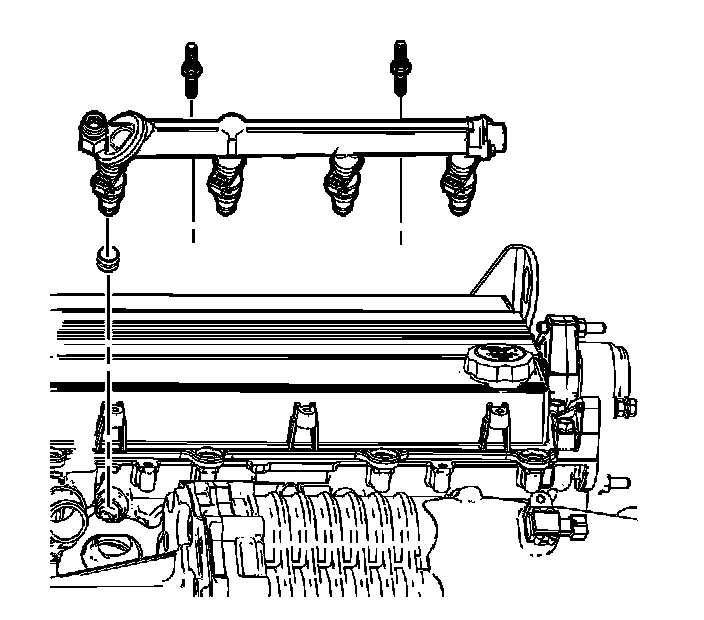

5. Install the fuel rail and injector cups.
6. Install the fuel rail studs.

Tighten
Tighten the fuel rail and injector studs to 10 Nm (89 lb in).

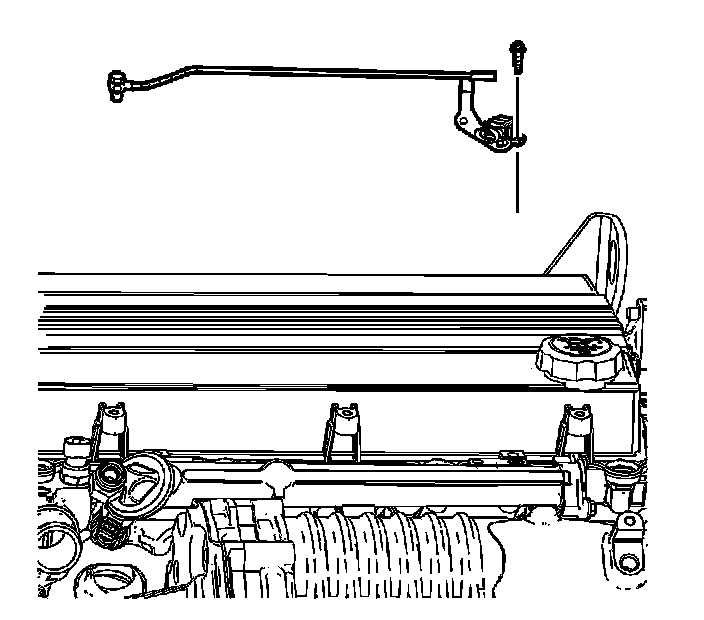

7. Install the baro sensor and coolant return line as an assembly.
8. Install the coolant return line bolt.

Tighten
Tighten the bolt to 8 Nm (71 lb in).

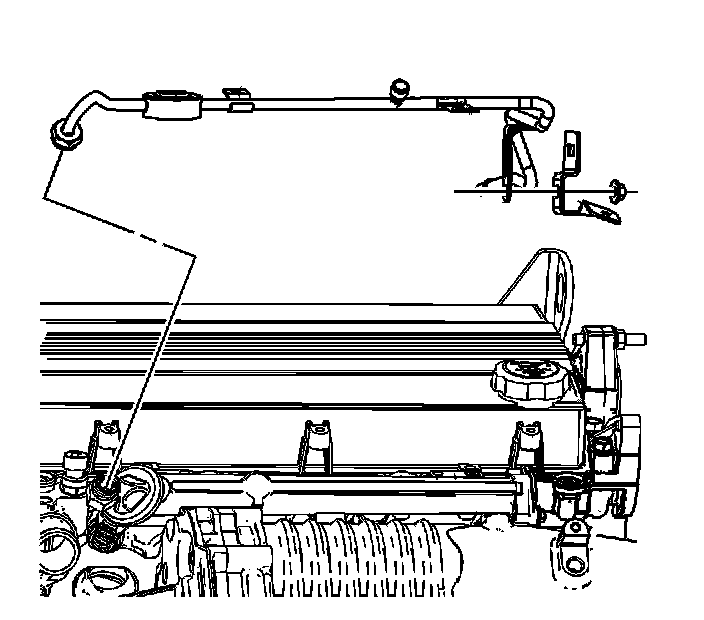

9. Install the fuel rail feed line and injector harness bracket.
10. Install the injector harness bracket nut.

Tighten
- Tighten the fuel feed line to 14 Nm (124 lb in).
- Tighten the fuel feed line and injector harness bracket nut to 10 Nm (89 lb in).

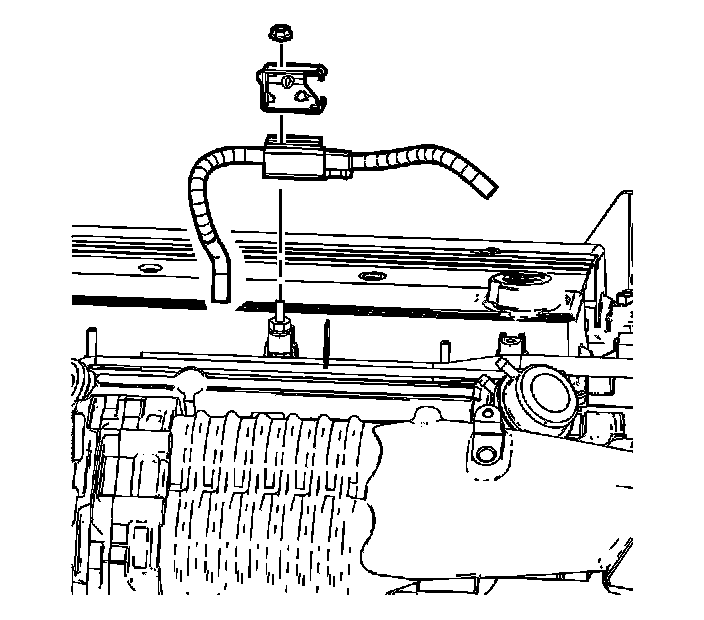

11. Install the boost solenoid bracket nut.

Tighten
Tighten the nut to 10 Nm (89 lb in).

12. Install the boost solenoid hose to the supercharger.

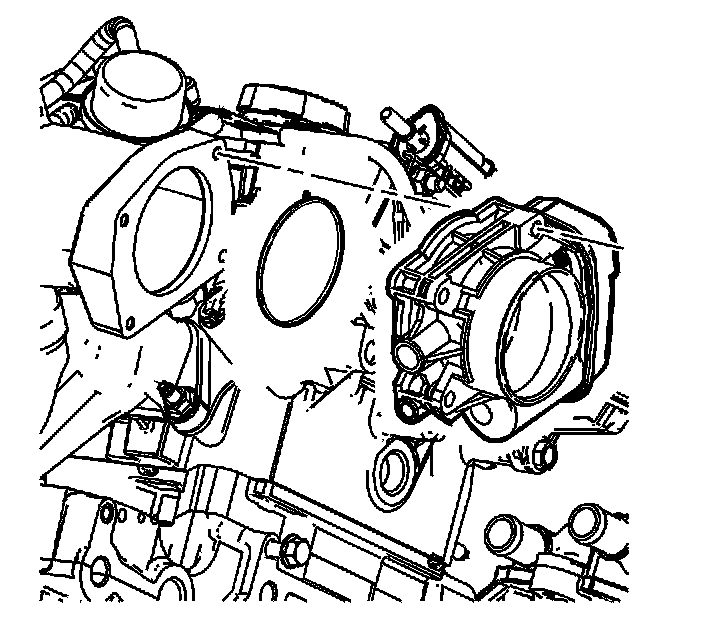

13. Install the throttle body gasket.
14. Install the throttle body.
15. Install the throttle body bolts.

Tighten
Tighten the bolts to 10 Nm (89 lb in).
