63. Camshaft Position Sensor Housing Installation

Camshaft Position Sensor Housing Installation

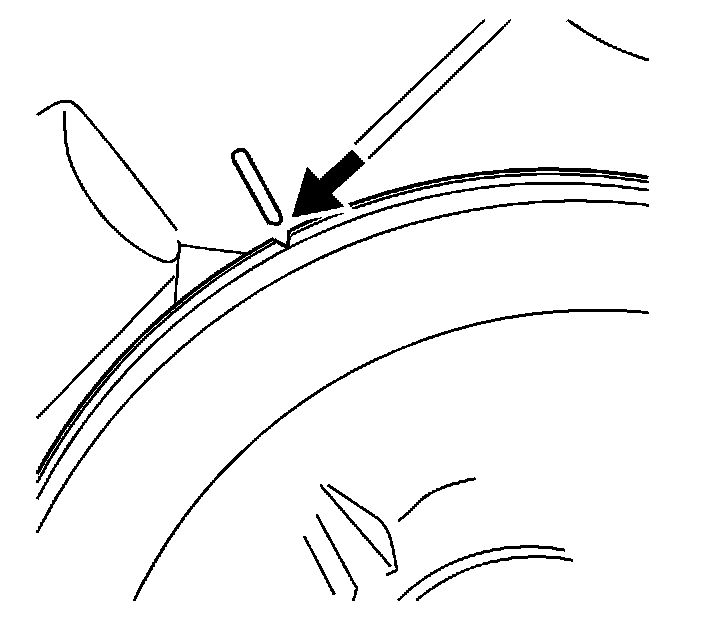

1. Rotate the crankshaft until number 4 piston is at top dead center (TDC) on the compression stroke. Refer to the crankshaft damper-to-front-cover timing marks.
2. Install a NEW camshaft position sensor housing seal.

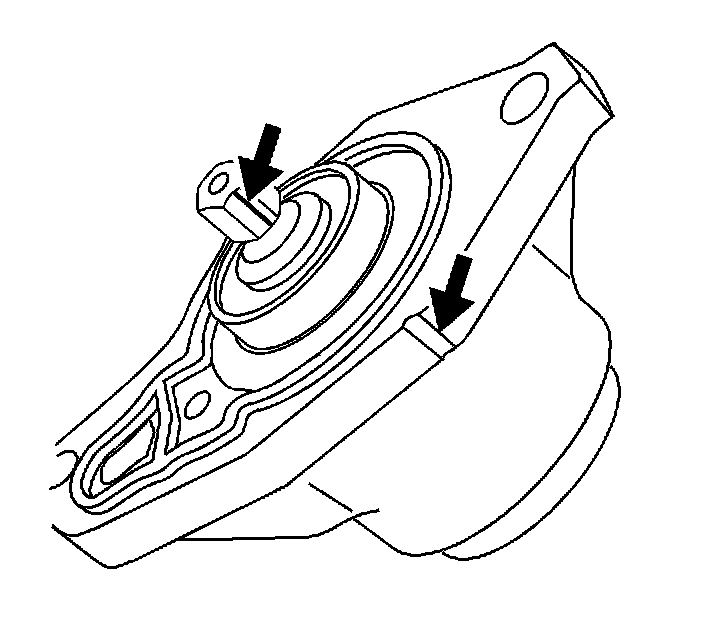

3. Align the timing mark on the housing with the timing mark on the hex shaft.






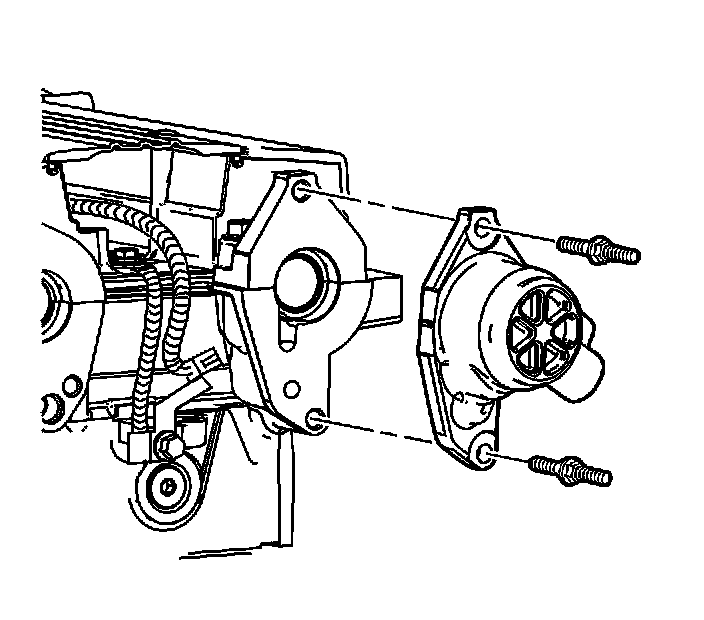

4. Install the camshaft position sensor housing.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

5. Install the camshaft position sensor housing studs.

Tighten
Tighten the camshaft position sensor housing studs to 22 Nm (16 lb ft).
