61. Engine Front Cover and Oil Pump Installation

Engine Front Cover and Oil Pump Installation

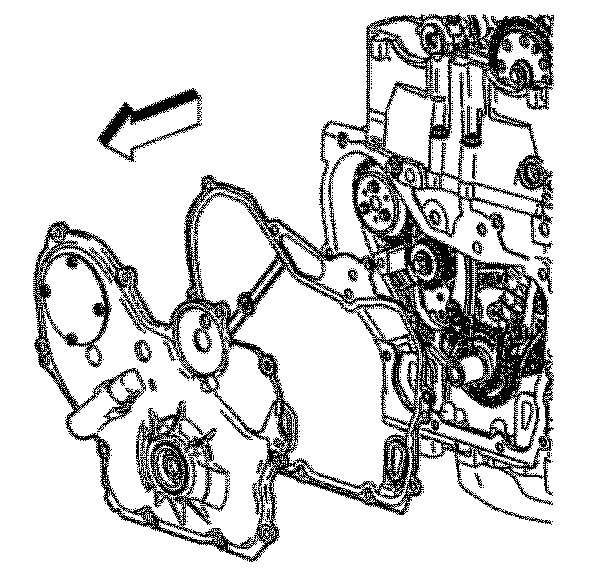

1. Install the engine front cover with a new gasket.






Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Important: The center bolt (1) should be tightened last.

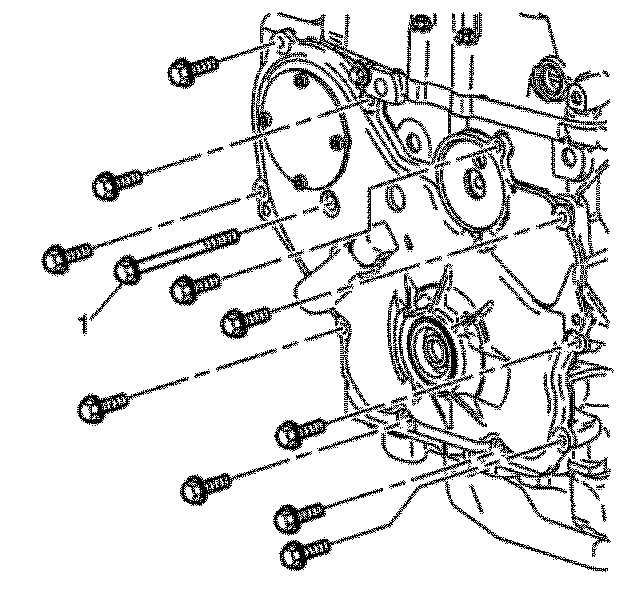

2. Install the engine front cover bolts.

Tighten
Tighten the engine front cover bolts to 25 Nm (18 lb ft).

3. Install the long water pump bolt (1).

Tighten
Tighten the water pump bolt to 25 Nm (18 lb ft).

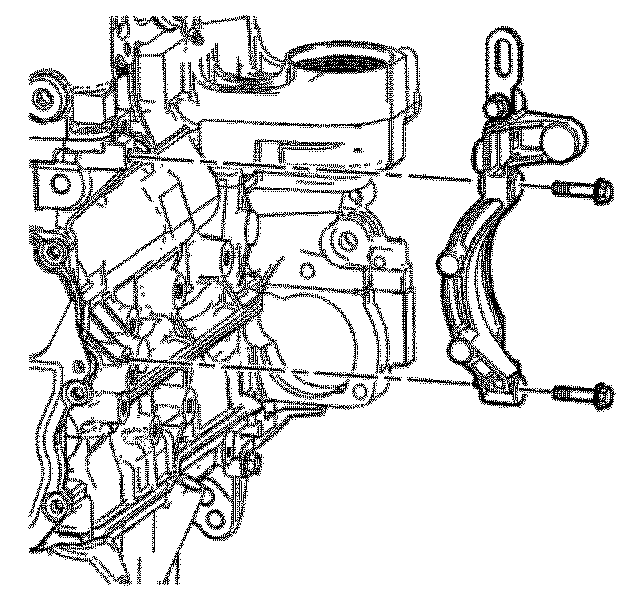

4. Install the generator bracket and lift hook assembly.
5. Install the generator bracket and lift hook assembly bolts.

Tighten
Tighten the bolts to 42 Nm (31 lb ft).

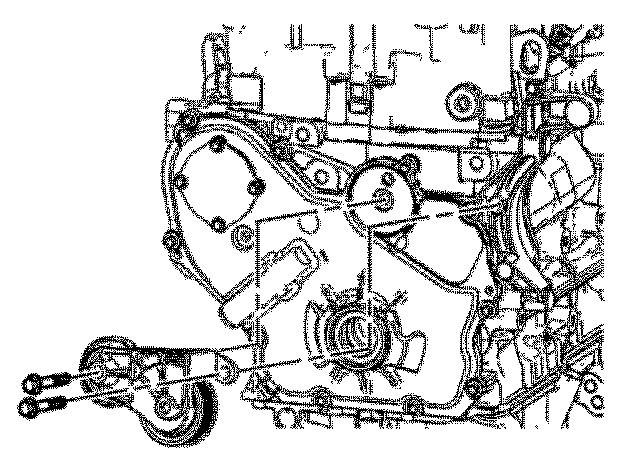

6. Install the idler pulley.
7. Install the idler pulley bolts.

Tighten
Tighten the pulley bolts to 22 Nm (16 lb ft).

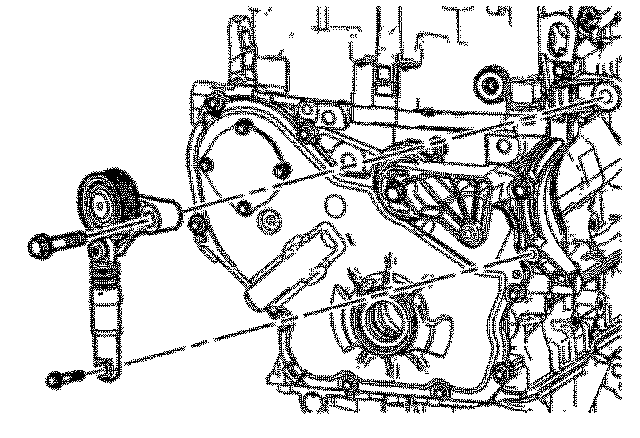

8. Install the accessory drive belt tensioner.
9. Install the accessory drive belt tensioner bolts.

Tighten
Tighten the accessory drive belt tensioner bolts to 32 Nm (24 lb ft).
