Saturn
>>
2004
>>
ION L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Views
>>

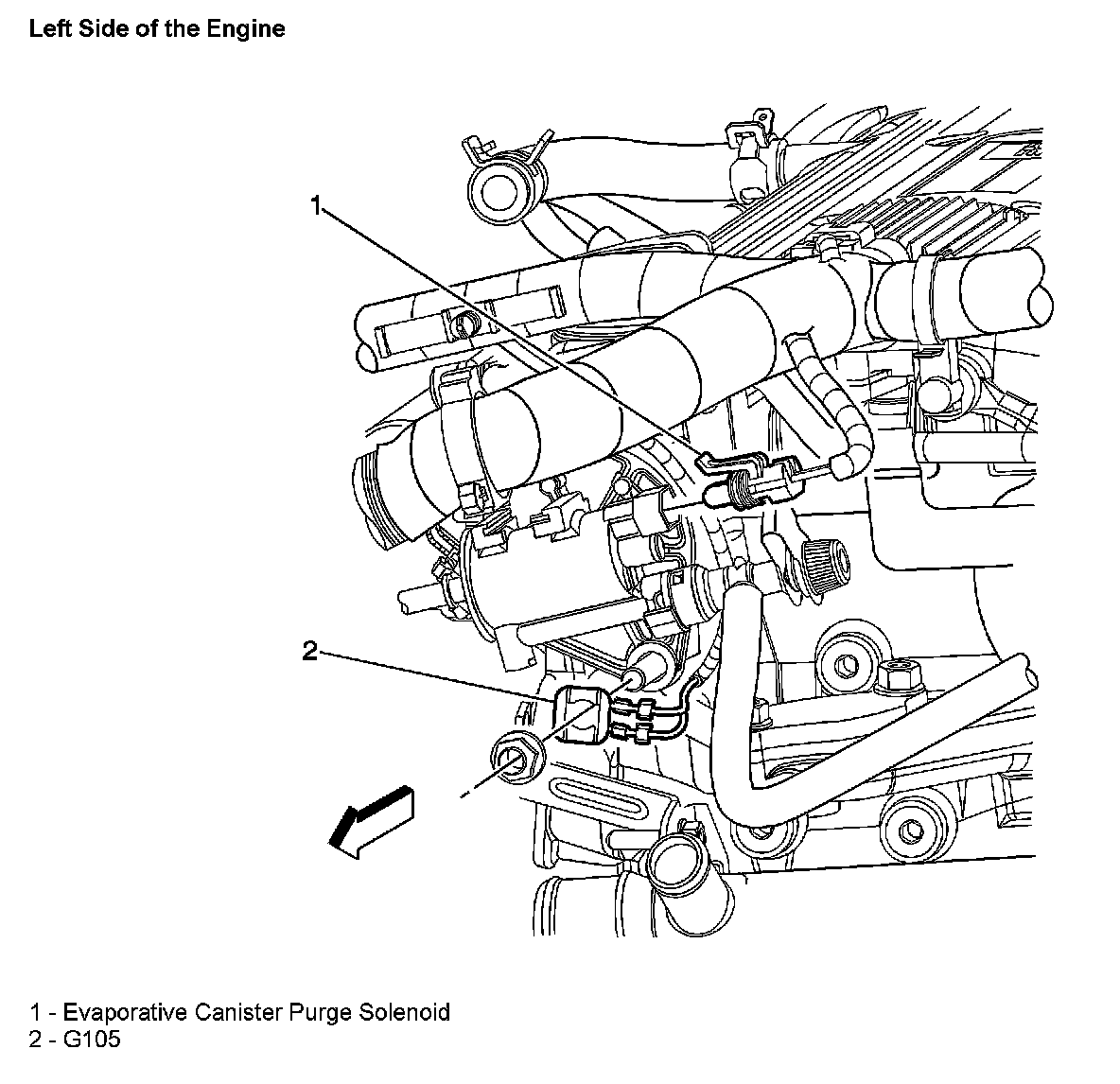

Left Side of the Engine
Left Side of the Engine
Left Side Of The Engine:
