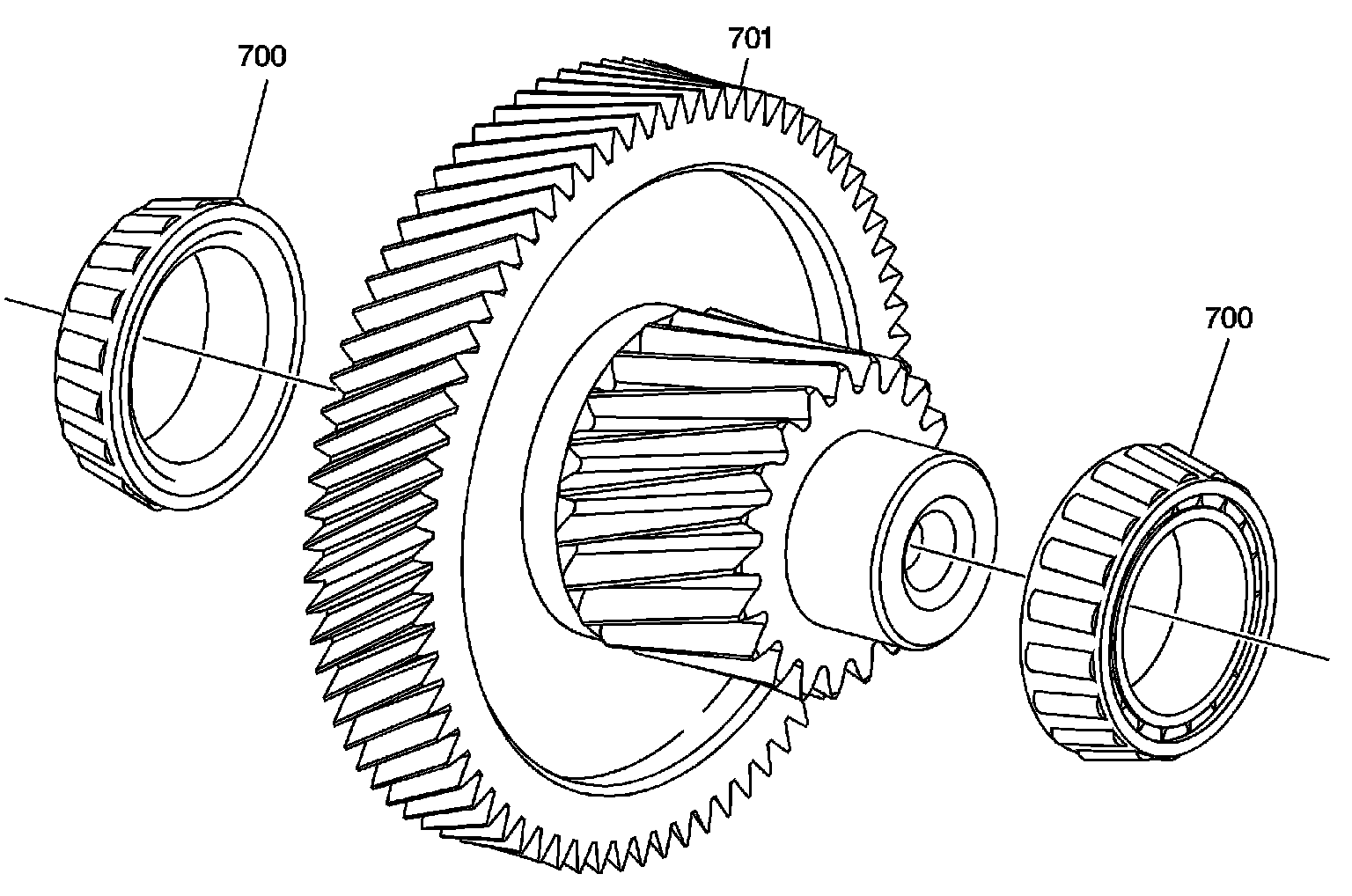

Front Differential Transfer Gear Assembly










(700) Front Differential Drive Pinion Gear Bearing Assembly
(701) Front Differential Drive Pinion Gear and Transfer Gear Assembly
