Power Distribution Diagram 3

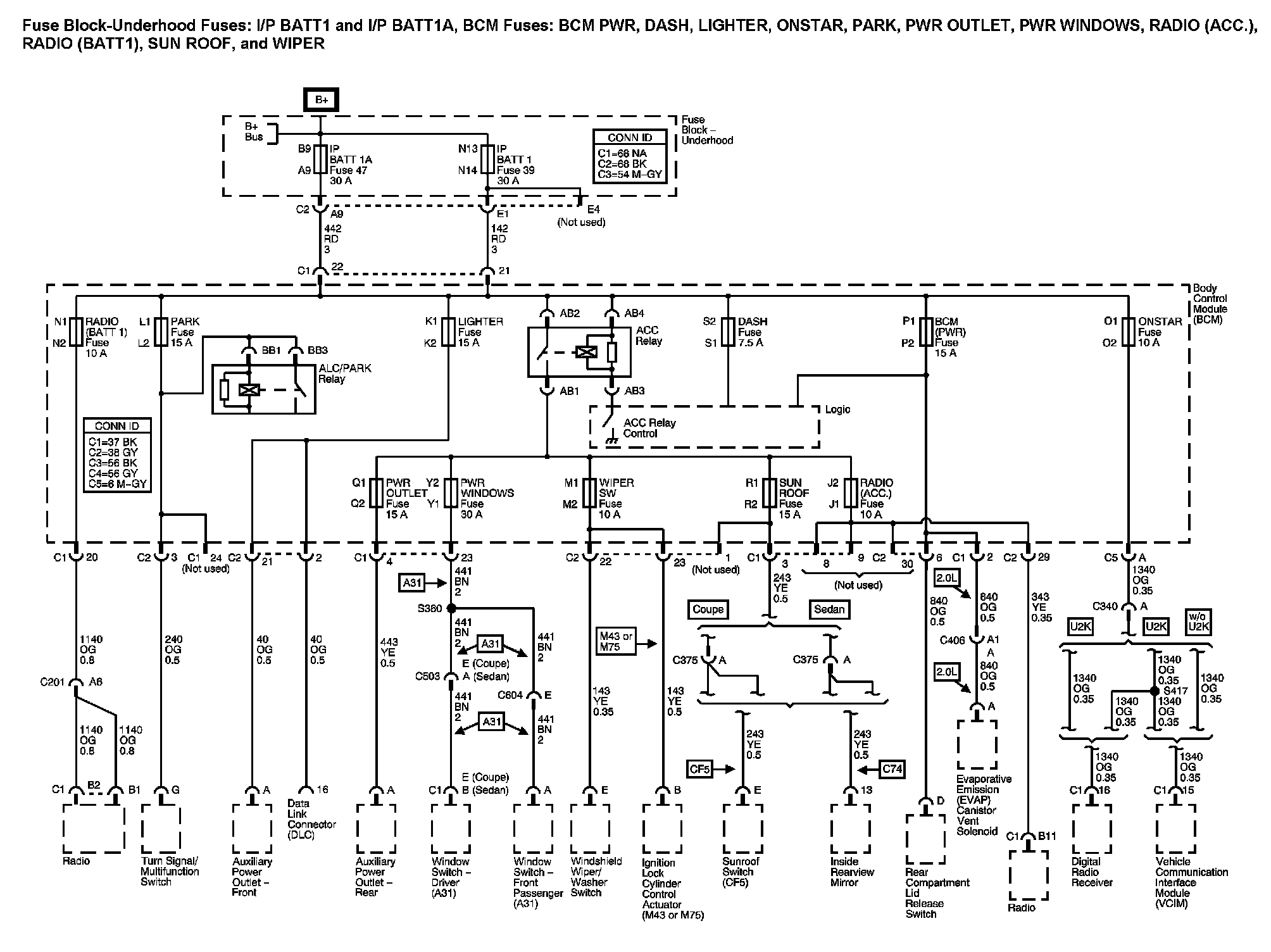

Power Distribution Diagram 3:






Next Diagram Power Distribution Diagram 4

Previous Diagram Power Distribution Diagram 2
