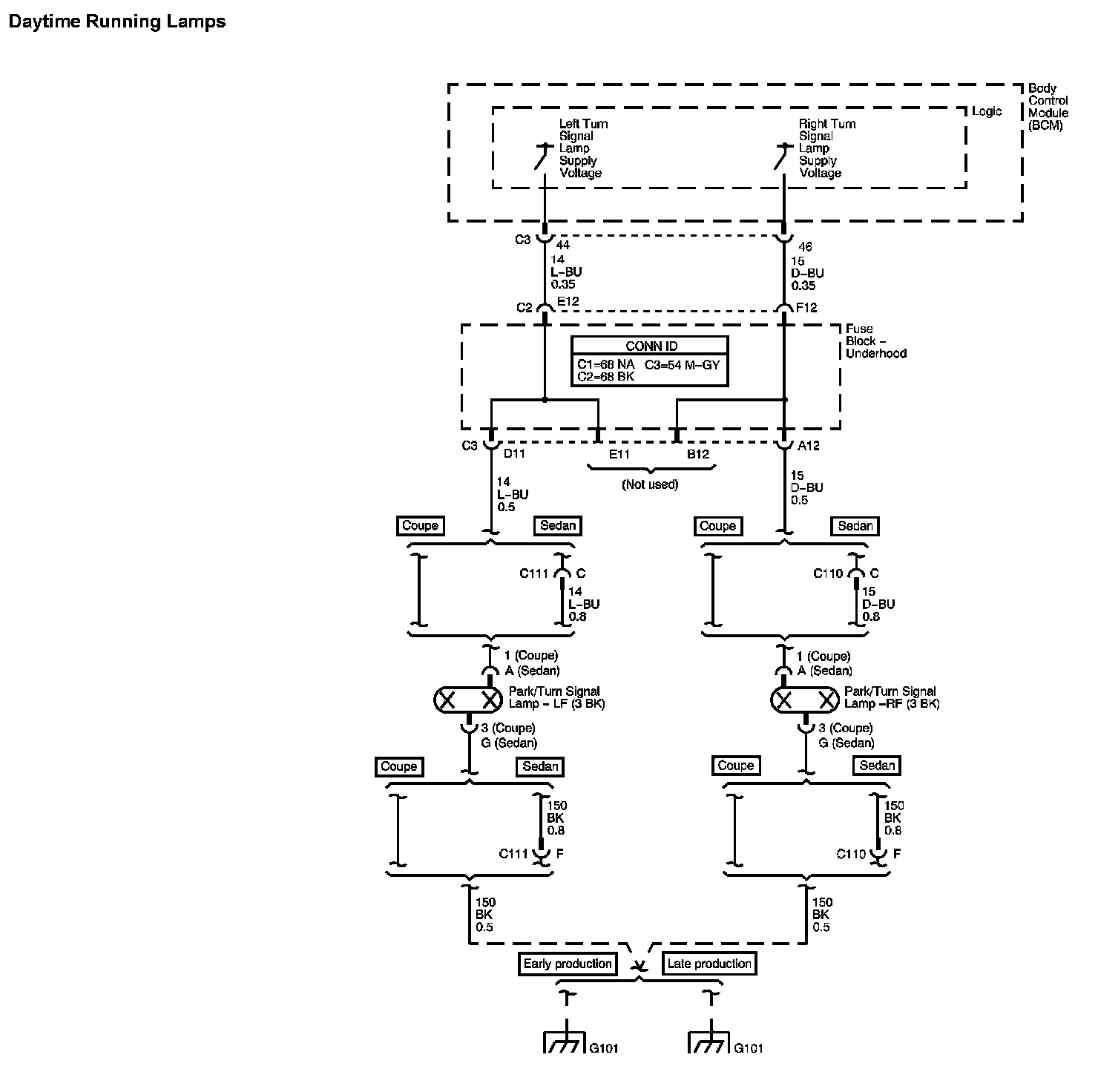

Headlights/Daytime Running Lights (DRL) Diagram 3
Headlights/Daytime Running Lights (DRL) Diagram 3
Headlights/Daytime Running Lights (DRL) Diagram 3:
Previous Diagram
Headlights/Daytime Running Lights (DRL) Diagram 2
