Exterior Lights Diagram 5

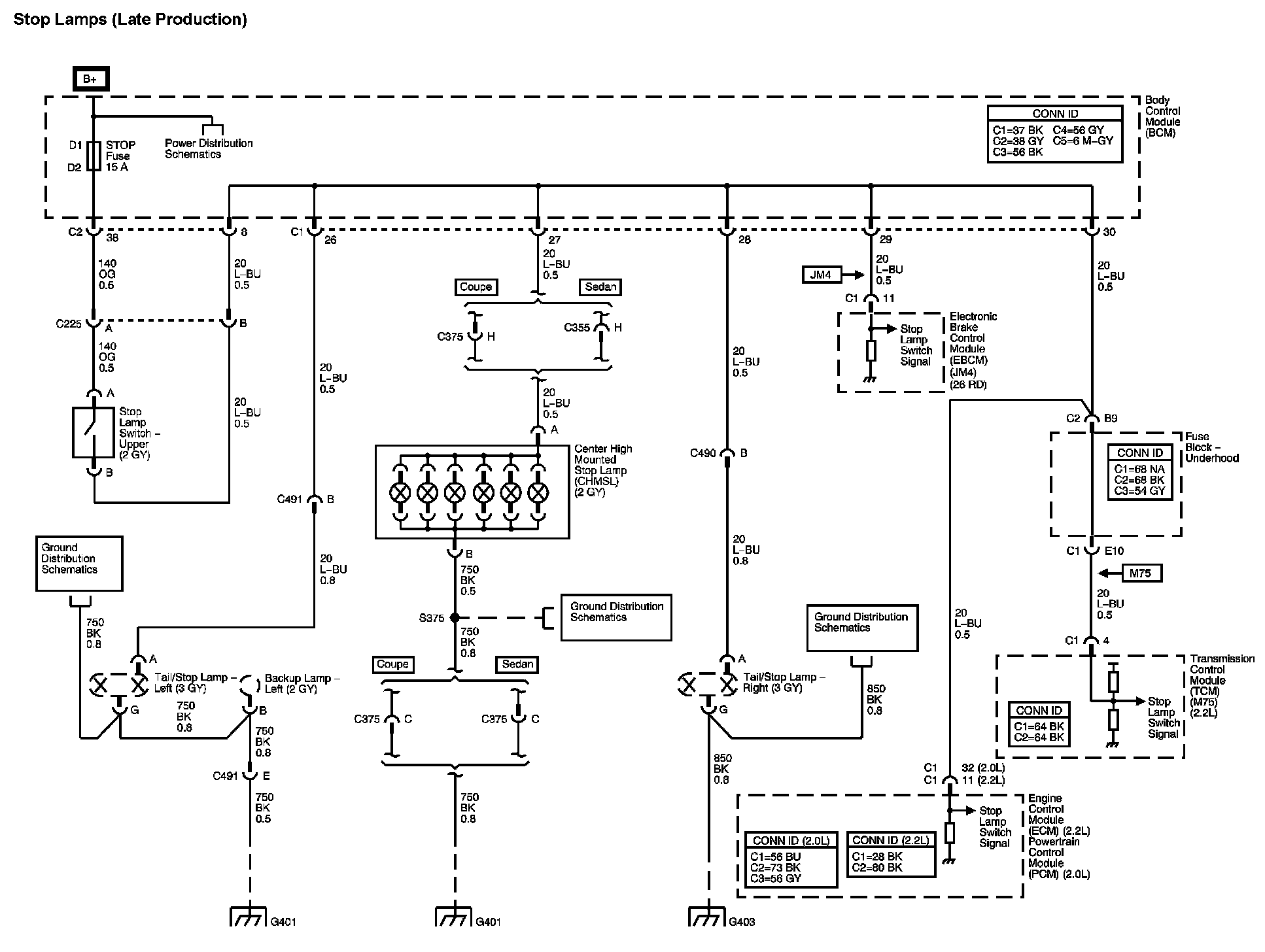

Exterior Lights Diagram 5:






Next Diagram Exterior Lights Diagram 6


Previous Diagram Exterior Lights Diagram 4
