Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights >> Exterior Lights Diagram 2

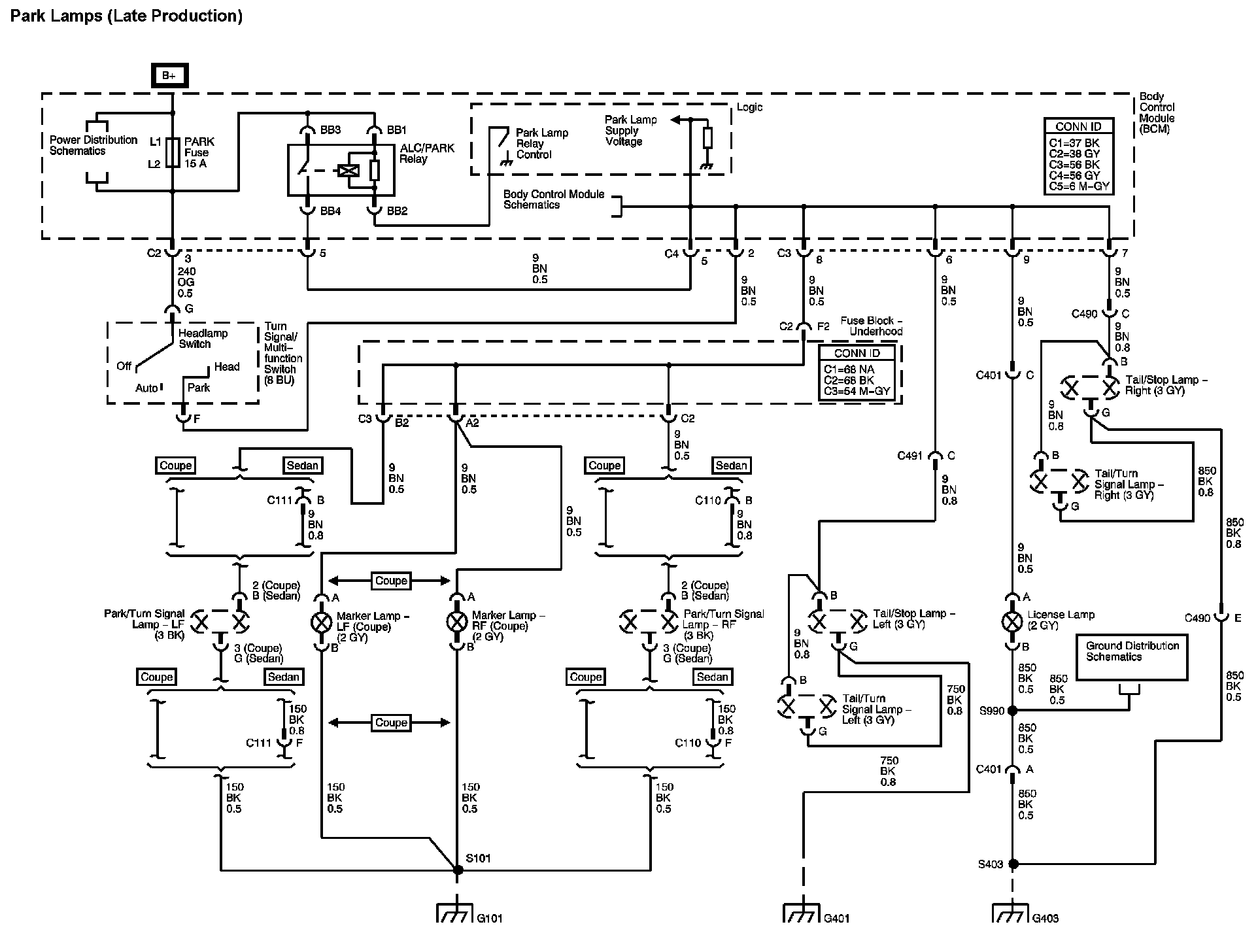

Exterior Lights Diagram 2

Exterior Lights Diagram 2:






Next Diagram Exterior Lights Diagram 3


Previous Diagram Exterior Lights Diagram 1
