Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram

System Diagram

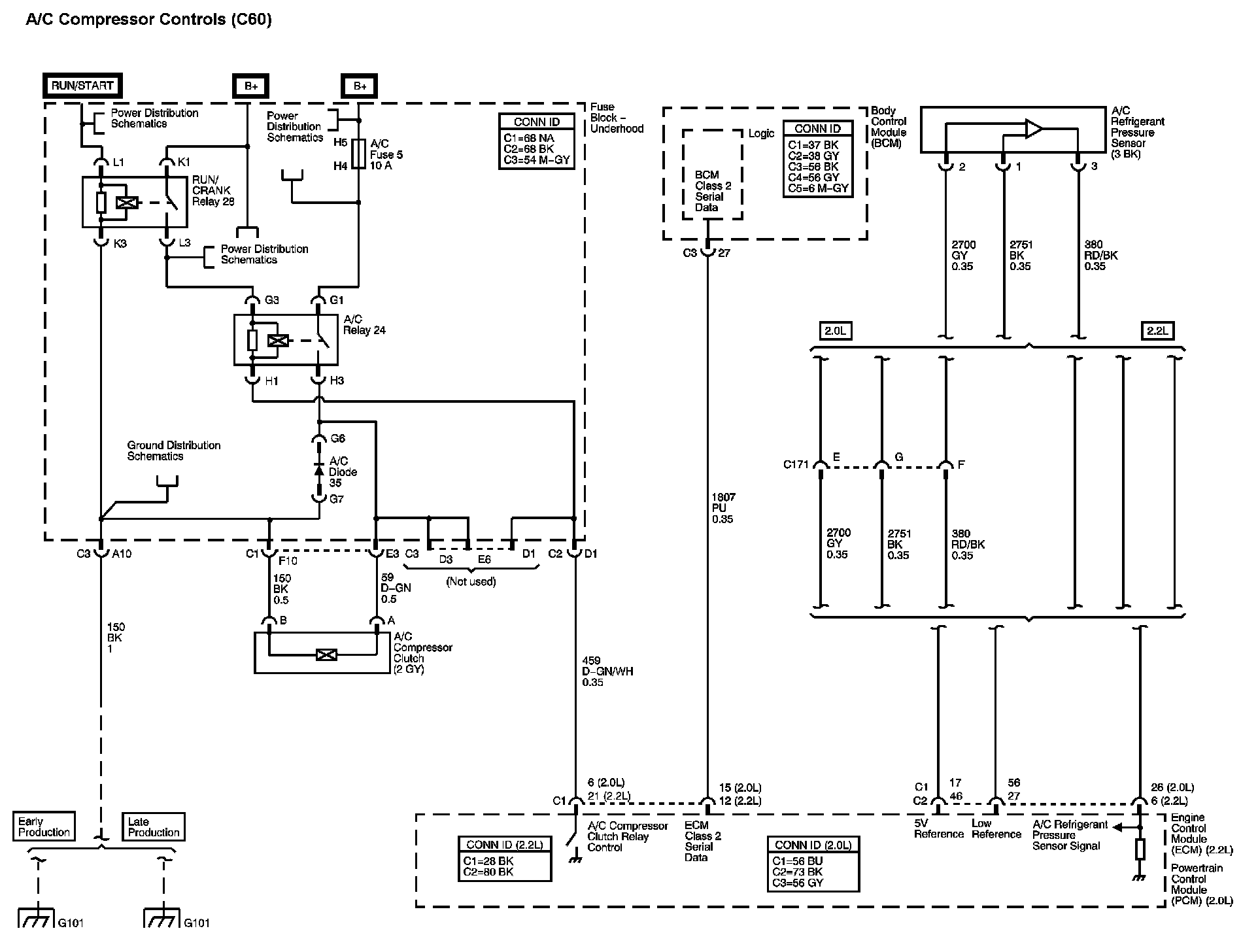

HVAC Diagram 1:

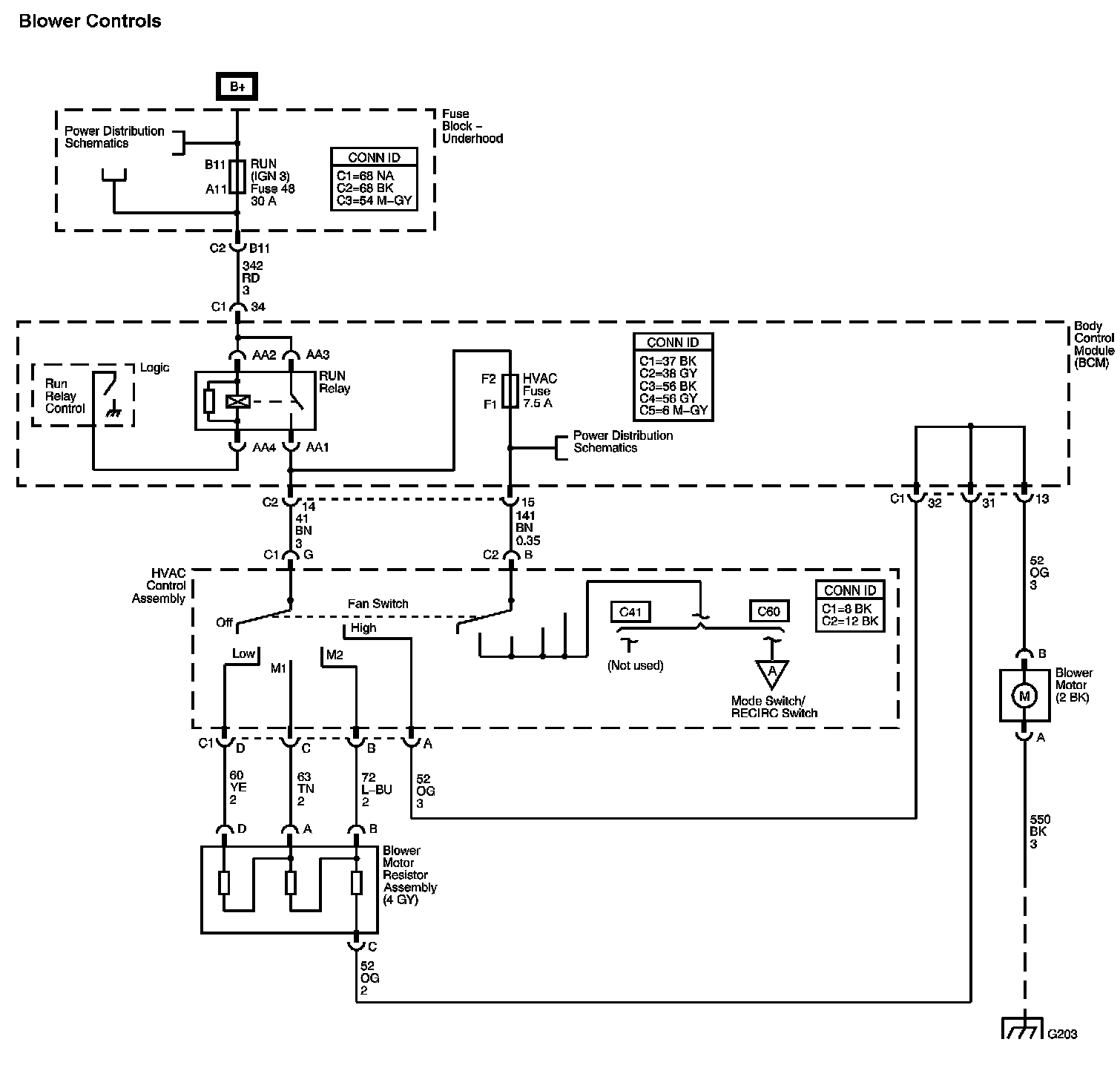

HVAC Diagram 2:

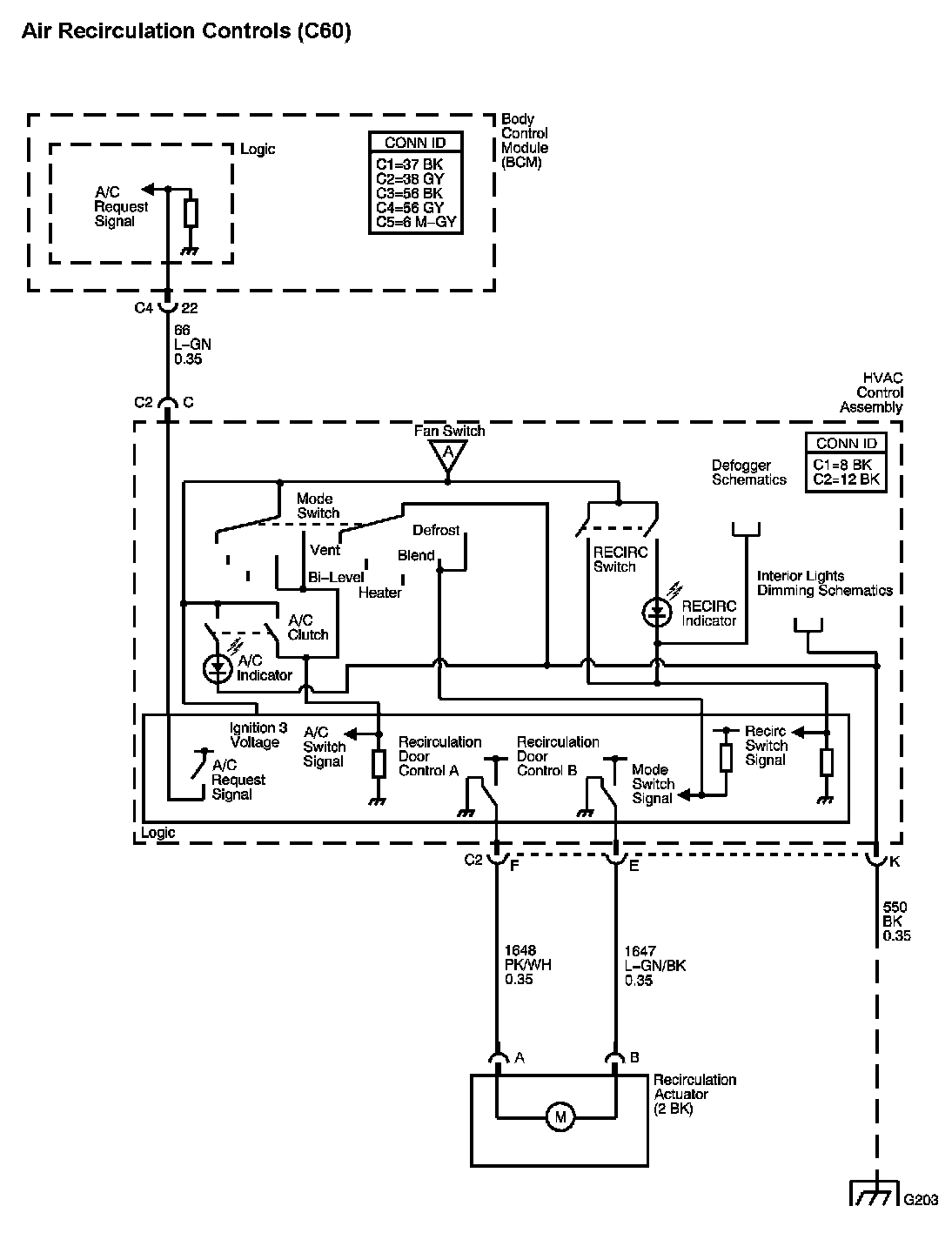

HVAC Diagram 3:
